Flow indicator for liquid and gas

Laboreszköz katalógus Marketplace 0Cart

Deltalab

Request a price

Material: clear glass SAN.

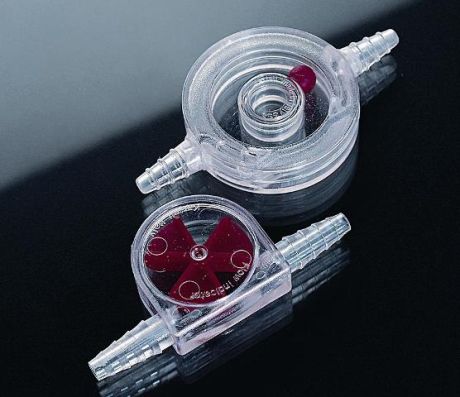

The flow indicator exists in ball and paddle versions. The rotating parts (ball or paddle) are colored red.

Thanks to its connector, it is easy to connect to the pipe carrying the medium to be observed with an inner diameter of 6-11 mm.

It cannot be used to indicate the flow of corrosive media.


code

Name

Tube ø

net price

amount

in stock

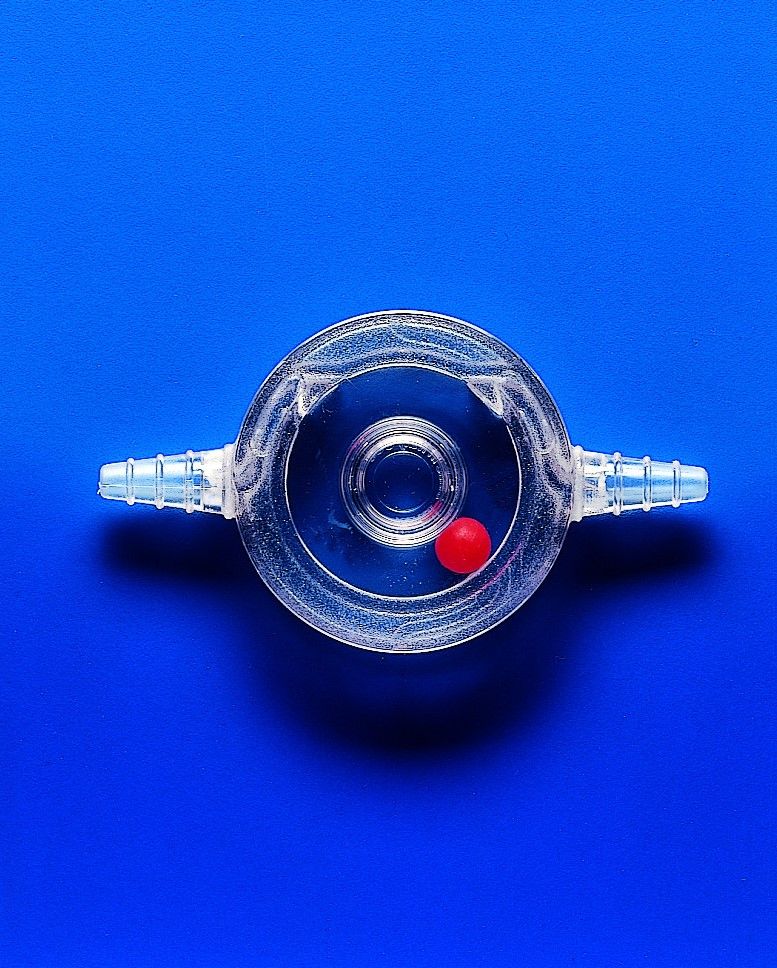

Flow Indicator, ball, for diameters 6.5-10 mm

22.19538

ball flow indicator

6,5 - 10 mm

Request a price

Suitable for foodstuff. 102x14x57 mm. For liquid flow from 50 ml/min in horizontal position, and 140 ml/min in vertical position. Minimum air flow 3 litres/min horizontal and 8 litres/min vertical. Speed of rotation of ball proportional to flow. Not to be used with corrosive fluids or over +50°C. Material: SAN.

Flow Indicator, paddle wheel, for diameters 6-11 mm

22.19539

paddle flow indicator

6 - 11 mm

Request a price

Suitable for foodstuff. 90x15x40 mm. For liquid flows down to 5 ml/sec. Wheel spins freely and speed of rotation is proportional to flow rate. Maximum recommended flow rate up to 95 ml/sec. Max 2 bar pressure. Not to be used with corrosive fluids or over +85°C. Can be used with gases. Material: SAN.
