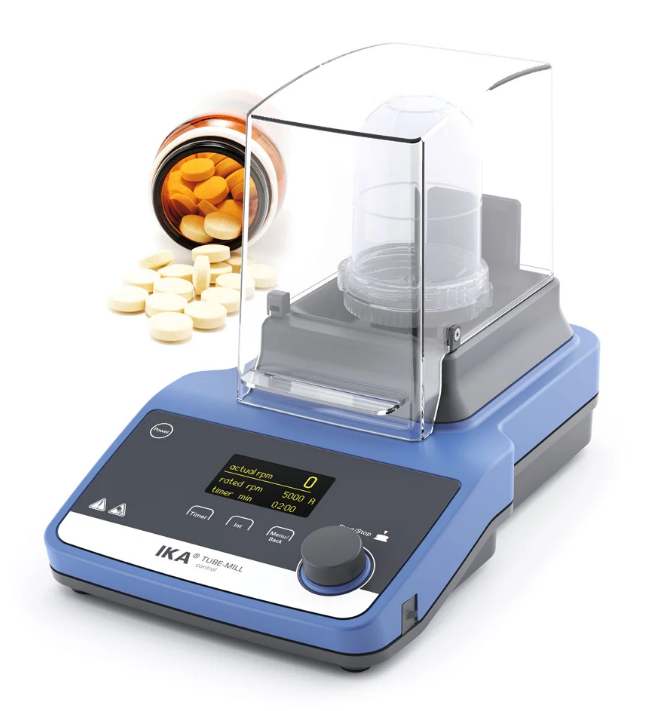

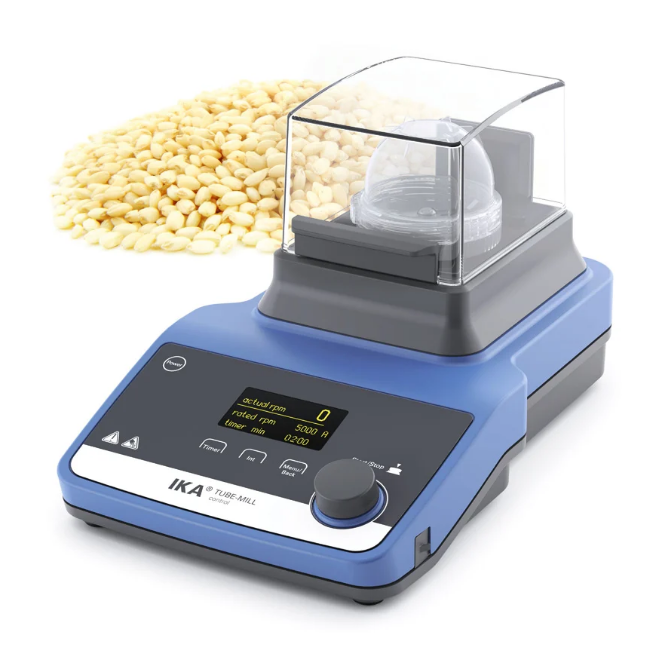

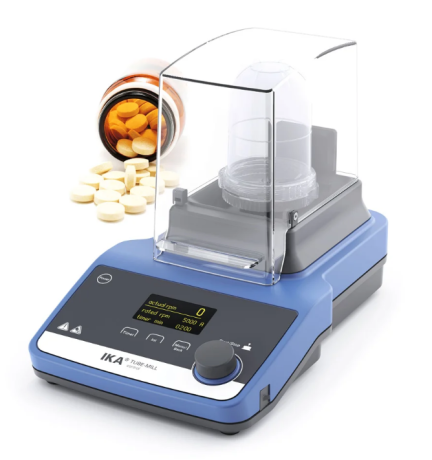

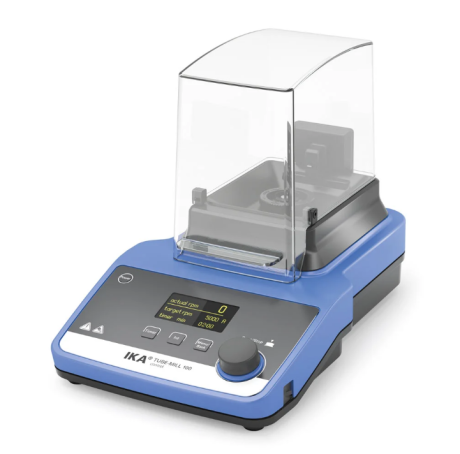

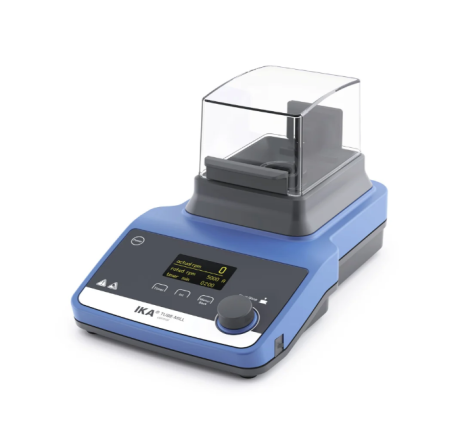

IKA Tube Mill control grinders
IKA
Request a price
Devices suitable for grinding smaller sample quantities, with two maximum sample volumes (40 ml and 100 ml). Disposable grinding chambers eliminate cross-contamination of samples. The Tube Mill control is suitable for grinding a maximum sample volume of 40 ml, while the Tube Mill 100 control is suitable for grinding a maximum sample volume of 100 ml. The only differences between the two special packages (Agriculture and Pharma) and the basic packages are the accessories included with the device.
The transparent lid and grinding chamber allow you to observe the grinding process. Suitable for samples with a maximum Mohs hardness of 5.
The OLED display of the device provides user-friendly parameter settings, and the reason for the device's shutdown can be quickly identified thanks to the error codes displayed on the screen. Documentation is easy to complete thanks to the USB connector.
More detailsTechnical data:
| Specifications | Tube Mill control | Tube Mill 100 control |
|---|---|---|
| Speed range: | 5,000 - 25,000 rpm | 5,000 - 25,000 rpm |
| Speed resolution | 100 rpm | 100 rpm |
| Max. circumferential speed: | 65 m/s | 65 m/s |
| Max. volume: | 40 ml | 100 ml |
| Max. hardness: | 5 Mohs | 5 Mohs |
| Timer: | 5 sec - 3 minute | 5 sec - 3 minute |
| Interval timer: | 5 - 60 sec | 5 - 60 sec |
| Power consumption: | 100 / 80 Watt | 100 / 80 Watt |
| Dimensions (W x H x D): | 180 x 170 x 300 mm | 180 x 212 x 300 mm |
| Weight: | 2,7 kg | 2,8 kg |
| Protection class: | IP 30 | IP 30 |
| Permissible ambient temperature: | 5 °C ... 40 °C | 5 °C ... 40 °C |
| Max. humidity: | 80% | 80% |
