KNF Liquidport membrane liquid dispenser

Digital controller for Liquidport membrane liquid dispensers

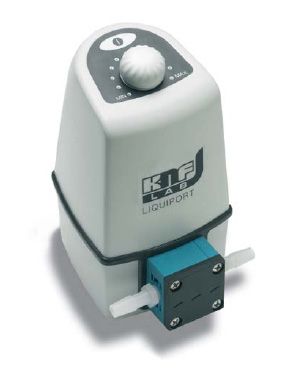

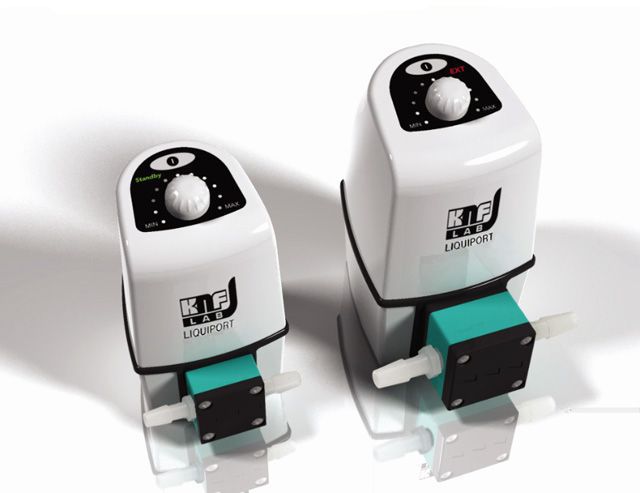

KNF Liquidport liquid dosing membrane pump

KNF

Request a price

KNF Liquidport membrane liquid dosing pumps are equipped with an analog scale control, with which the power of the device can be regulated between 10-100%. Optionally, an external digital timer controller (KNF LCF) can be ordered for the device, with the help of which serial dosing works and small-scale industrial liquid dispensing works can be carried out.

Technical characteristics of maintenance-free liquid dosing pumps:

Specifications:	NF 100 __.18 RC,	NF 1.100 __.18 RC	NF 300 __.18 RC	NF 1.300 __.18 RC
Dosing speed:	0,2-1,3 l/min	0,2-1,3 l/min	0,5-3,0 l/min	0,5-3,0 l/min
Suction height:	3 mWg	3 mWg	3 mWg	3 mWg
Pressure height:	10 mWg	60 mWg	10 mWg	60 mWg
Pipe connection:	ID 8	ID 8	ID 12	ID 12
External dimensions:	130 x 177 x 99 mm	130 x 177 x 99 mm	160 x 190 x 104 mm	160 x 190 x 104 mm
Performance:	12 W	18 W	24 W	24 W
Weight:	1,0 kg	1,0 kg	1,5 kg	1,5 kg

Components used in Liquidport liquid dosing pumps:

Pump type	Pump head material	Membrane	Valves	Qualification
NF __ KT	PP	Teflon coated	FFPM	for general use (for aqueous solutions)
NF __ TT	PVDF	Teflon coated	FFPM	medium chemical resistance
NF __ FT	PTFE	Teflon coated	FFPM	chemical resistant

More details


code

Name

net price

amount

in stock

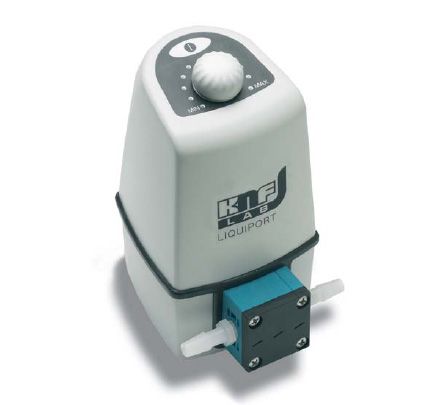

Liquidport NF 100 membrane liquid dispenser, 1.3 liters/min

33.NF100KT18RC

NF100KT.18 RC membrane liquid dispenser

Request a price

"compact, variable dosing speed control button or analog signal control. Dosing rate: 0.2 - 1.3 l/min, (+/- 1 %) Programmable: 1 second - 99 hours 59 minutes Max pressure: 1 bar. Max viscosity: 150 cSt (with reduced power: 500 cSt) IP 65 protection. PP pump head, PTFE-coated diaphragm, FFPM valves. Weight: 1.0 kg External dimensions: 130 x 177 x 99 mm"

Liquidport NF 1.100 FT membrane liquid dispenser

33.NF1100FT18RC

NF1.100FT.18 RC chemical-resistant membrane liquid dispenser

Request a price

"compact, variable dosing speed control button or analog signal control. Dosing rate: 0.2 - 1.3 l/min, (+/- 1 %) Pressure height: 60 mWg Suction height: 3 mWg IP 65 protection. PTFE pump head, PTFE-coated diaphragm, FFPM valves. Pipe connection: 8 mm. Weight: 1 kg External dimensions: 130 x 177 x 99 mm"

33.NF300KT18RC

NF300KT.18 RC membrane liquid dispenser

Request a price

"With scaling control (10-100%) and external control port (rotation: analog 0-10 V, start/stop: TTL) and data cable. Dosing rate: 0.5 - 3 l/min, (+/- 1 %) Max pressure: 1 bar. IP 65 protection. PP pump head, PTFE-coated diaphragm, FFPM valves. ID12 pipe connection. Weight: 1.5 kg External dimensions: 160 x 190 x 104 mm"

Liquiport NF 300 TT.18 RC membrane liquid dispenser, k. chemical resistant, 3 liters/minute

33.NF300TT18RC

NF300TT.18 RC moderately chemical resistant membrane liquid dispenser

Request a price

"With scaling control (10-100%) and external control port (rotation: analog 0-10 V, start/stop: TTL) and data cable. Dosing rate: 0.5 - 3 l/min, (+/- 1 %) Max pressure: 1 bar. Moderately chemical resistant. IP 65 protection. PVDF pump head, PTFE-coated diaphragm, FFPM valves. ID12 pipe connection. Weight: 1.5 kg External dimensions: 160 x 190 x 104 mm"

Liquiport NF 300 FT.18 RC membrane liquid dispenser, chemical resistant, 3 liters/minute

33.NF300FT18RC

NF300FT.18 RC chemical-resistant membrane liquid dispenser

Request a price

"With scaling control (10-100%) and external control port (rotation: analog 0-10 V, start/stop: TTL) and data cable. Dosing rate: 0.5 - 3 l/min, (+/- 1 %) Max pressure: 1 bar. Chemical resistant design. IP 65 protection. PTFE pump head, PTFE-coated diaphragm, FFPM valves. ID12 pipe connection. Weight: 1.5 kg External dimensions: 160 x 190 x 104 mm"

Liquidport NF 1.300 KT membrane liquid dispenser

33.NF1300KT18RC

NF1.300KT.18 RC membrane liquid dispenser

Request a price

"compact, variable dosing speed control button or analog signal control. Dosing rate: 0.5 - 3.0 l/min, (+/- 1 %) Max pressure: 6 bar. IP 65 protection. PP pump head, PTFE-covered membrane, FFKM valves. Pipe connection: 12 mm. Weight: 1.5 kg External dimensions: 160 x 188 x 104 mm"

Liquidport NF 1.300 TT membrane liquid dispenser

33.NF1300TT18RC

NF1.300TT.18 RC moderately chemical resistant membrane liquid dispenser

Request a price

"compact, variable dosing speed control button or analog signal control. Dosing rate: 0.5 - 3.0 l/min, (+/- 1 %) Max pressure: 6 bar. IP 65 protection. PVDF pump head, PTFE-coated diaphragm, FFPM valves. Pipe connection: 12 mm. Weight: 1.5 kg External dimensions: 160 x 188 x 104 mm"

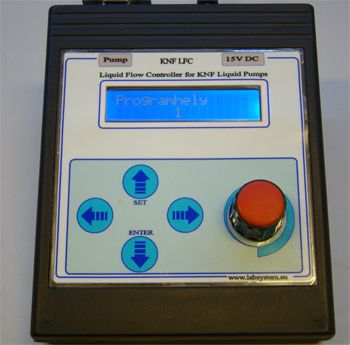

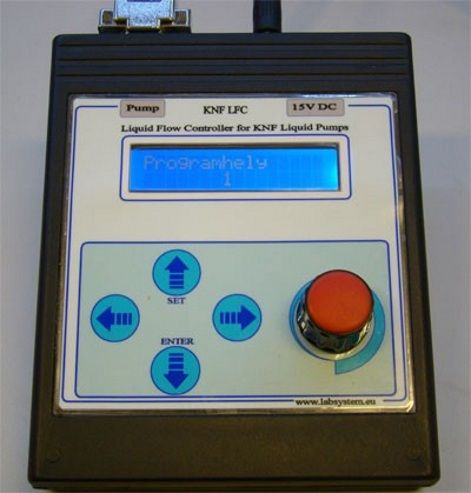

Vezérlőegység sorozatadagoláshoz KNF Liquidport folyadékadagolóhoz

55.LFC000

KNF LFC digital control timer for serial feeding for KNF Liquidport pump

Request a price

2 soros háttérvilágításos LCD kijelzővel. Használható 1,3 liter/perc, és 3,0 liter/perc szállítási sebességű szivattyúkhoz. Beállítható paraméterek: Adagolási mennyiség, szünet adagolások között, ciklus száma, adagolás sebessége, módszer kalibráció, beállítások mentési lehetősége 4 db programhelybe. Tartozékok: AC adapter, adatkábel, visszacsapó szelep 8-9-10 mm.
