Memmert Generation 2012 - Memmert's new generation devices
Memmert
Request a price
As a result of six decades of development and production experience, MEMMERT started manufacturing a new generation device family in 2012.
The previous three-level / service controllers were replaced by a modular system: the one- and two-panel system. As a result, the devices with one controller (xN-series, xF-series) can be used for simpler applications (80% of the market uses them), the prices have become lower than the previous "BASIC" controller devices.
Devices with two control panels (plus series) cover the services of the former E and P.
More detailsPresentation of new Memmert control functions
| Controller with one touch screen | Controller with two touch screen (plus series) |
|---|---|
 |
 |
| ControlCOCKPIT control settings: Temperature (Celsius or Fahrenheit), fan speed, position of the fresh air control butterfly valve, program time, relative humidity, lighting, CO2 and O2 for CO2 incubators, pressure, time zone, time adjustment | ControlCOCKPIT controller settings: temperature (Celsius or Fahrenheit), fan speed, butterfly valve position, program time, relative humidity, lighting, CO2, O2, pressure, time zone, time adjustment |
| One Pt100 temperature sensor | Two independent Pt100 temperature sensors, the device remains functional even if one of the sensors fails. |
| HeatBALANCE function: to change the spatial distribution of the heating temperature. It allows you to set the different heating performance of the upper and lower heating fibers. | |
| USB port for program uploading and user identification. | |
| Calling up the device temperature from a memory capable of storing approximately 1 week of data. | |
| Ethernet network connection port for sending logging data. | Ethernet network connection port for sending out logging data for program uploading, program control and real-time monitoring. |
| Dual temperature protection (electronic and mechanical) | Multiple temperature protection: electronic monitoring systems, mechanical temperature limiter, automatic temperature monitor. Specifying minimum and maximum values for temperature, humidity or CO2 concentration |
| Stainless steel inner and outer casing, color touch screen control | |
| High-capacity network cable | |
| Parameter log with enough memory for 10 years | |
| Real-time digital clock, timer (can be set between 1 minute and 99 days at 23:00) | |
| Start temperature timer function, which starts the countdown only when the appropriate temperature is reached. | |
| Possibility of 3-point temperature calibration, direct entry of calibration of other parameters | |
|

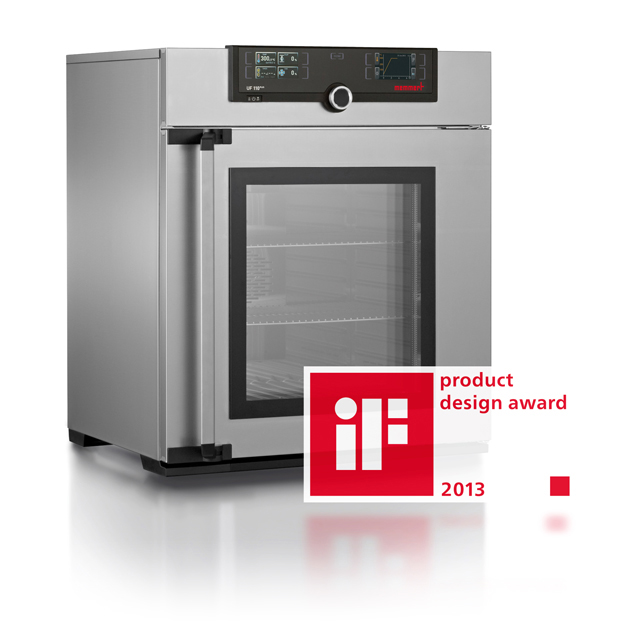

In 2013, Memmert's new generation devices won an IF design award (the "Oscar of medical technology") in the medical technology category.
|
