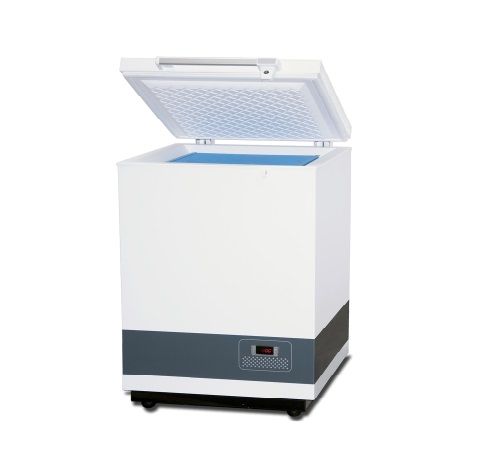

Vestfrost VT 78 ultra low temperature freezer chest -60 to -86°C, 71 liters

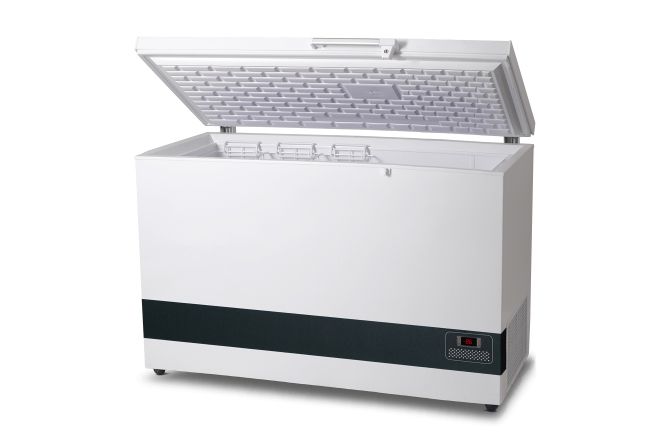

Vestfrost VT208 ultra low temperature freezer chest up to -60 to -86°C, 189 liters

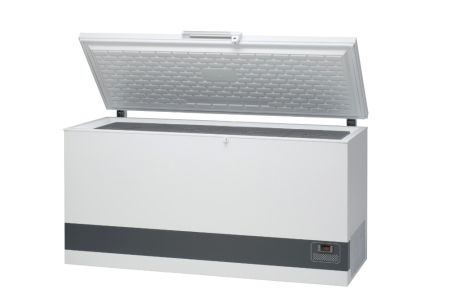

Vestfrost VT308 ultra low temperature freezer chest up to -60 to -86°C, 284 liters

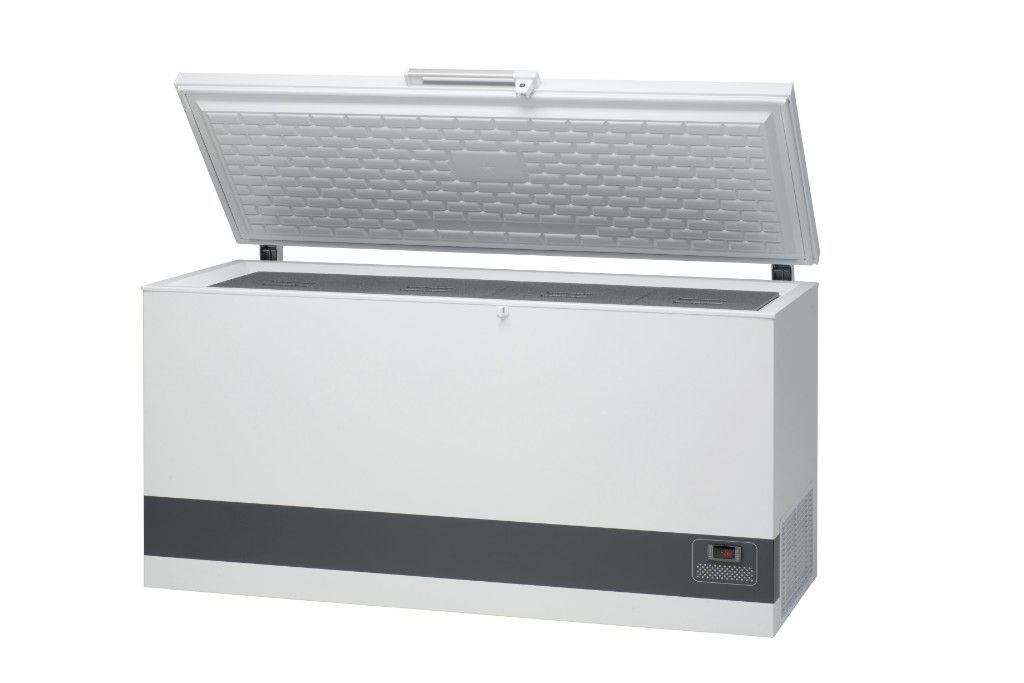

Vestfrost VT 408 ultra low temperature freezer chest -60 to -86°C, 368 liters

Vestfrost laboratory ultra low temperature freezers up to -86°C

Vestfrost

Request a price

Discontinued products, only available while stock last!

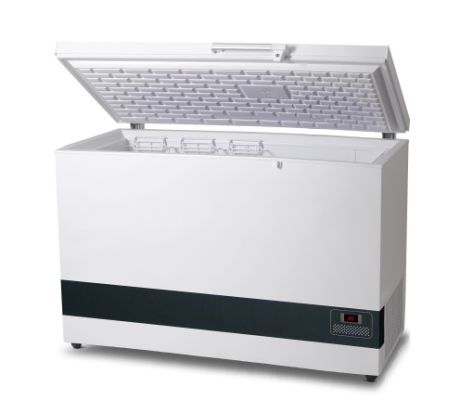

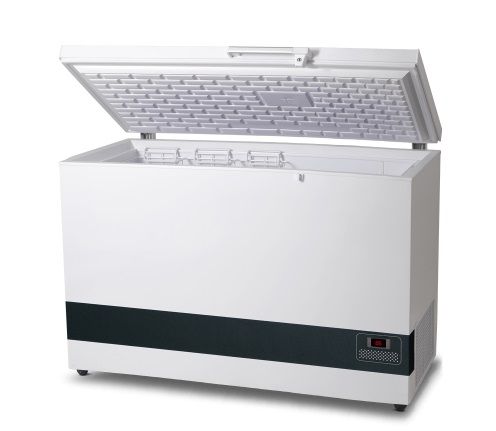

Temperature range of the VTS (cabinet) and VT (chest) types: -60 to -86°C.

The VTS 258 type has two compressors. If one of the compressors fails, the device can maintain -60°C with one compressor.

All other devices listed below - VTS and VT type - have one compressor. Ultra-deep freezers work with HCFC-free refrigerant.

Low noise level, excellent thermal insulation, significant energy savings.

In terms of controllers, the VTS types use the XW737K type controller providing more services (storage of 35,000 measurement data). The simpler controllers of the VT types (XR30CX) do not store temperature data.

The main features of both types (VT and VTS):

- Electronic control, digital display, PT1000 temperature sensor

- Emergency signal: visual and sound signal if the set temperature limit is exceeded

- approx. 50 hours backup battery mode for control and alarms

- Preparation for an external monitoring system, door lock with key

- Optionally, it can be mounted on castors

More details

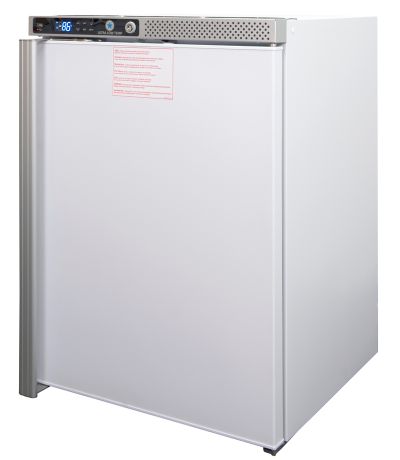

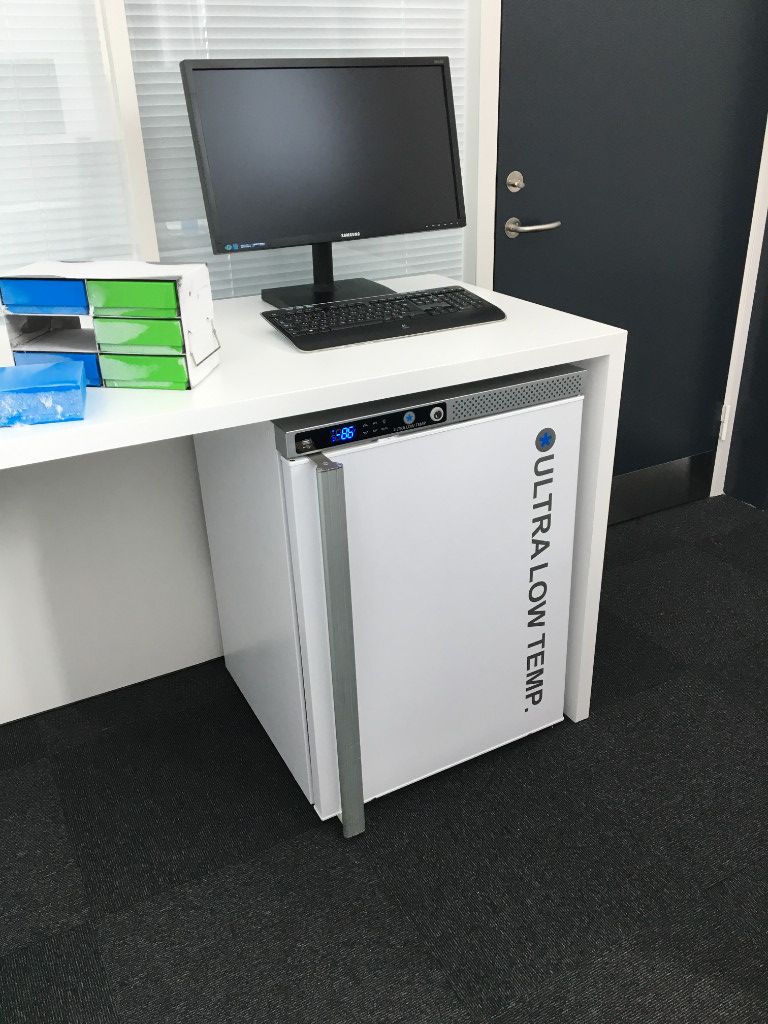

VTS 098 – compact under-counter ultra low temperature freezer

A unique, compact, under-counter device with an excellent price-value ratio for the reliable storage of sensitive samples at -86°C.

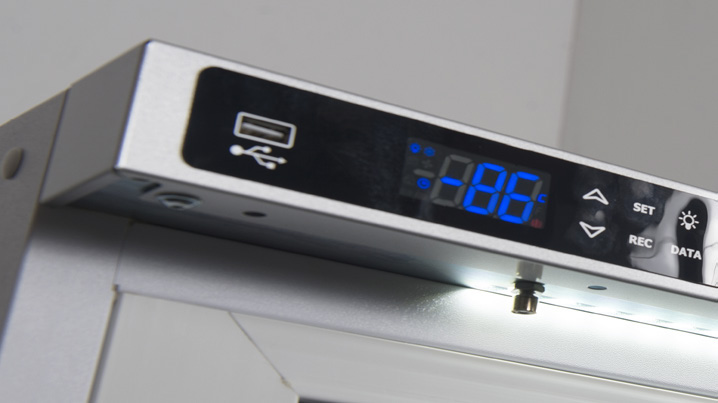

USB data output for temperature profile extraction and connection to MODBUS compatible monitoring systems. 50-hour battery power supply for temperature monitoring and alarm in case of power failure.

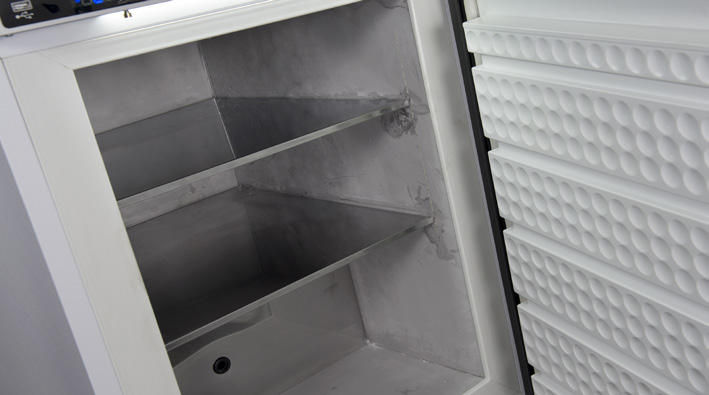

Excellent capacity - perfect space filling. Stainless interior, quiet operation.

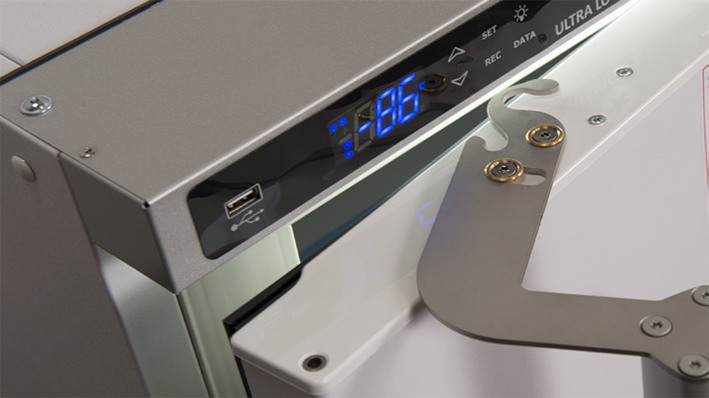

Door opening facilitating mechanism. Compared to traditional lamps, LED lighting is more economical and brighter.


code

Type

Volume

Inner size

External size

net price

amount

in stock

9.VTS098

VTS 098

92 liters

432 x 457 x 631 mm

595 x 630 x 830 mm

Request a price

Controller - High/Low Temp. Alarm - Open Door Alarm - Probe Failure Alarm - Power Failure Alarm - USB Connection - Datalogging Features: - Lock - LED Light - Battery Backup for Controller, 48h - Porthole - Dry Contact - Compressor1 Construction: - Outer Dimensions, HxWxD 825x595x645 - Inner Dimensions, HxWxD 625x425x428 - Volume Gross/net, L92 / 92Net - Weight, kg 61 - Material Inner Cabinet Stainless Steel - Material Outer Cabinet Painted Steel - Insulation Thickness, mm80 - Insulation Type: Polyurethane with Cyclopentane - RefrigerantNature: R - Refrigeration System: Static Operation - Temperature Range, C°-60 to -86 - Noise, dB57 - Energy Consumption 24/h, kWh 6,7 - Frequency, Hz50 - Power Supply, V220 / 240 Storage - Number of Shelfs (Standard/max)2 / 2 - Shelf material: Stainless Steel Max Loading pr. Shelf, kg 16 - Max no. of 50mm Cryoboxes63 - Vials, 2ml: 6.300 - Inner Lids: No

9.VTS258

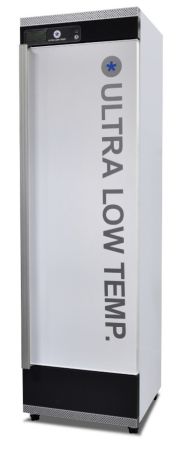

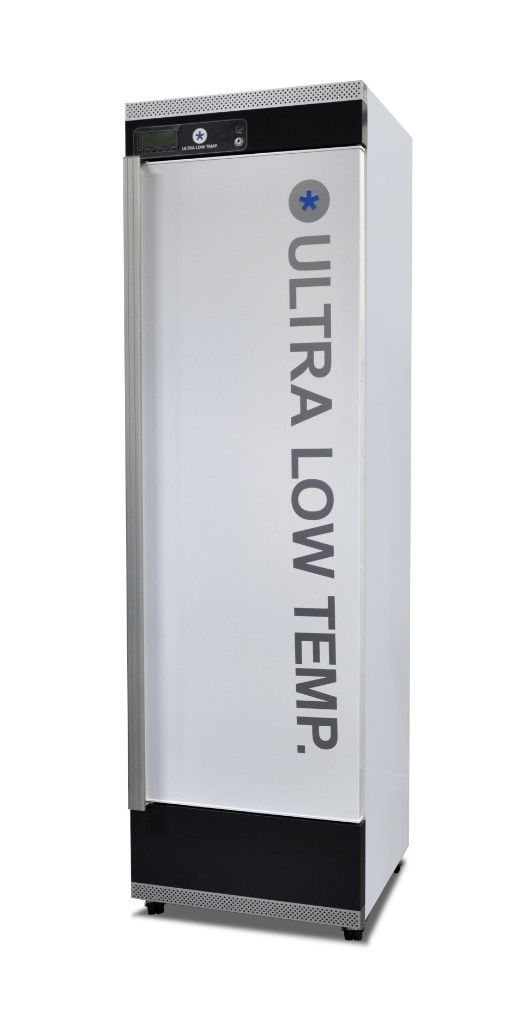

VTS 258

256 liters

440 x 405 x 1435 mm

595 x 633 x 2060 mm

Request a price

(net 237 liters) with interior volume. Two compressor systems capable of maintaining a system at -60 ° C even for 1 active compressor. HCFC-free refrigerant. Temperature range: -60 ... -86 ° C. Digital control (XW737K), digital display. - Alarm Alarm: Visual and Academy - 48 hour spare battery mode for control and alarms - Preparation for an external observation system. - key door - USB port for data reduction - 2 interior doors, 5 shelves with adjustable positions - Supplied with 4 rollers Shelf / chamber load: 16/75 kg. Weight: 140 kg Noise level: 60 dB Inner Size: 440 × 405 × 1.435 mm ( (W × D × H) External size: 595 x 633 x 2060 mm (W × D × H) Outer Size: Width: 595 mm × Depth: 633 mm (720 mm handle + ventilation grid) × Height: 2060 mm Energy consumption: 10.3 kW/ 24 hours.

Downloadable documents

Vestfrost ultra low temperature freezer cabinet datasheets
Vestfrost VTS 098 ultra low temperature freezer cabinet datasheet
Vestfrost VTS 258 ultra low temperature freezer cabinet datasheet
Vestfrost ultra low temperature freezer chest datasheets
Vestfrost VT78 ultra low temperature freezer chest datasheet
Vestfrost VT208 ultra low temperature freezer chest datasheet
Vestfrost VT308 ultra low temperature freezer chest datasheet
Vestfrost VT408 ultra low temperature freezer chest datasheet
Vestfrost VT548 ultra low temperature freezer chest datasheet
