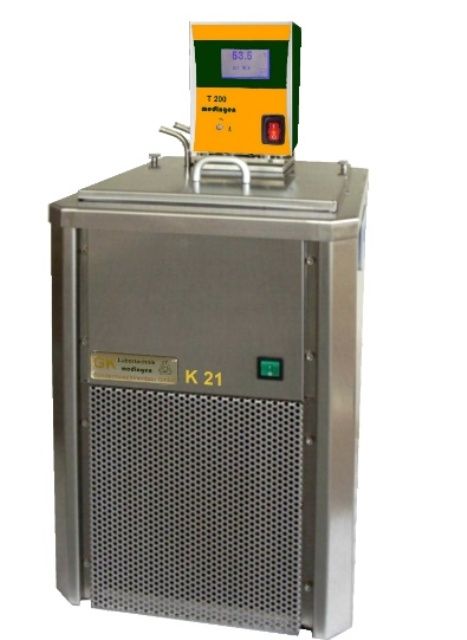

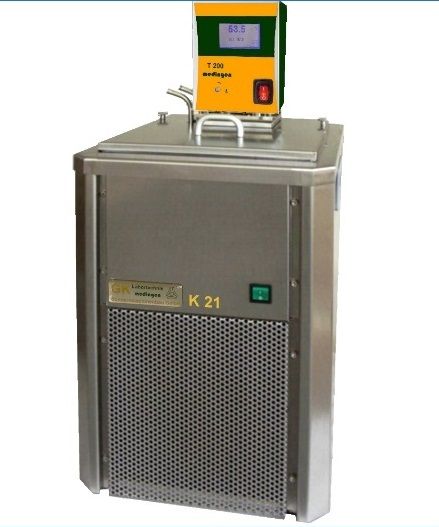

K21 T200

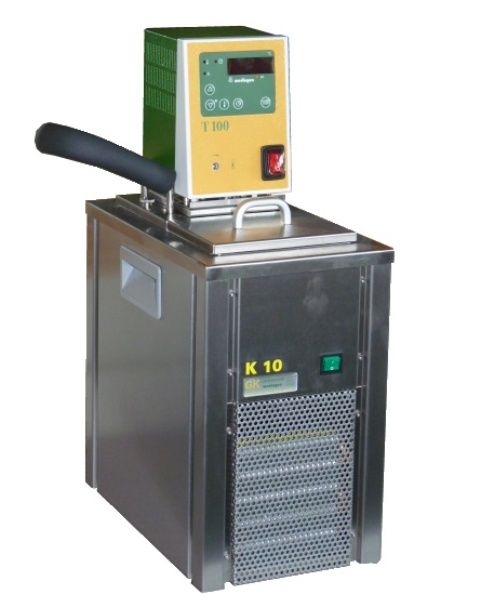

K10 T100

K31 T100

Benchtop cooled circulating thermostats up to -30 °C

Varialux

Request a price

The production of this product has been discontinued.

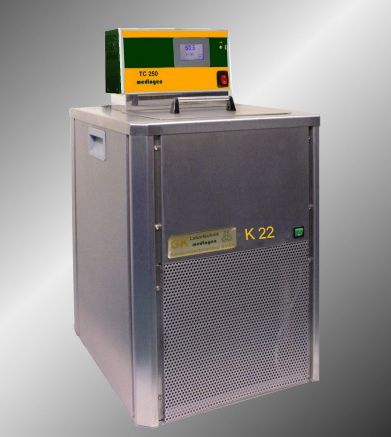

Thermostats combined with stainless steel tank and compressor cooling system. At temperatures above the boiling point or below the freezing point of water, a special liquid must be used as a heat transfer fluid.

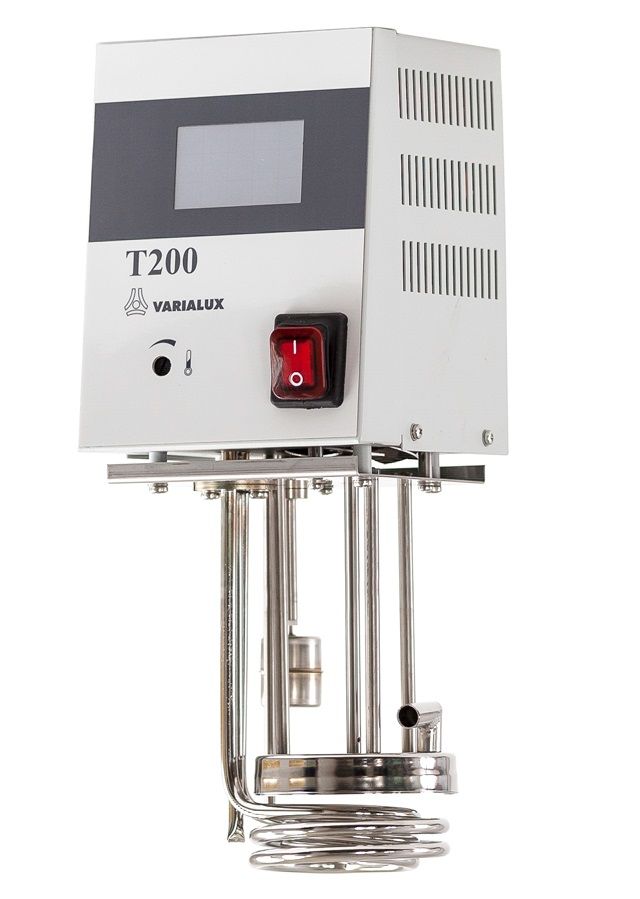

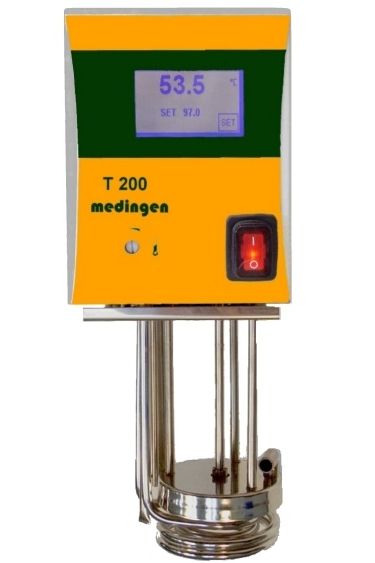

The devices are suitable for both internal and external circulation, so external devices can also be thermostated. The controllers marked T100 and TC150 (the marking is included in the second part of the model number) have an LED display, while the thermostat heads marked T200 and TC250 have a touch screen.

A more detailed description of the thermostat heads and their technical data (accuracy, heating power) can be found on a separate page.

Technical data:

Type:	K 10 T 100	K 10 T 200	K 21 / K 22 T 100	K 21 / K 22 T 200	K 21 / K 22 TC 150	K 21 / K 22 TC 250
Temperature range:	-10 - +100 °C	-10 - +100 °C	-20 - +100°C	-20 - +100°C	-20 - +100°C	-20 - +100°C
Consumption:	1000 Watt	1800 Watt	1000 Watt	1800 Watt	1800 Watt	1800 Watt
Cooling consumption 0 °C:	130 Watt	130 Watt	425 Watt	425 Watt	425 Watt	425 Watt
Cooling consumption -10 °C:	-	-	100 Watt	100 Watt	100 Watt	100 Watt
Temperature stability:	± 0.1 K	± 0.01 K	±0.1 K	± 0.01 K	± 0.1 K	± 0.01 K
Pressure / speed:	5 l / minute / 120 mbar	8 l / minute / 200 mbar	5 l / minute / 120 mbar	8 l / minute / 200 mbar	20 l / minute / 300 mbar	20 l / minute / 300 mbar
Temperature sensor:	PTC	Pt 100	PTC	Pt 100	Pt 100	Pt 100
Display:	LED	LCD	LED	LCD	LED	LCD
Tank opening / depth:	135 x 105 mm/ 130mm	135 x 105 mm/ 130mm	235 x 165mm/ 150 / 200 mm	235 x 165mm/ 150 / 200 mm	235 x 165mm/ 150 / 200 mm	235 x 165mm/ 150 / 200 mm
Weight:	17.5 kg	17.5 kg	32 kg	32 kg	35 kg	35 kg

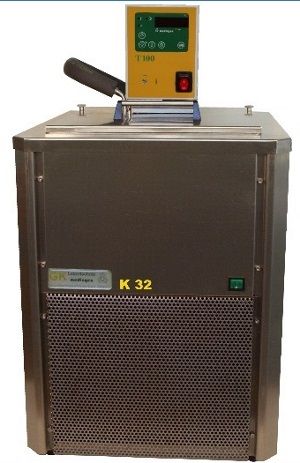

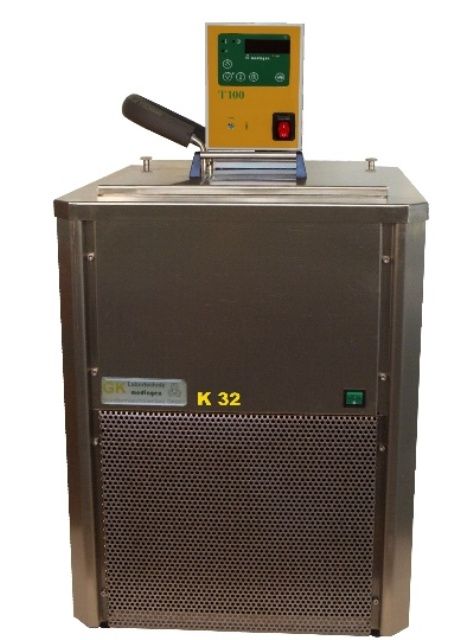

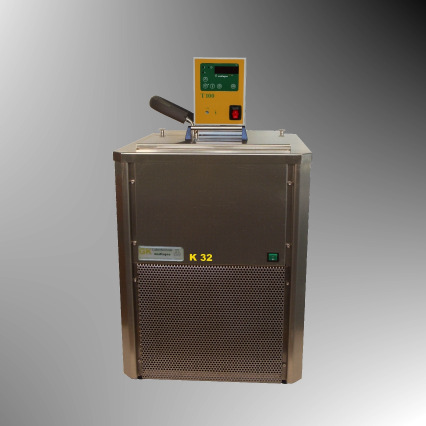

Type:	K 31 / K 32 T 100	K 31 / K 32 T 200	K 31 / K 32 TC 150	K 31 / K 32 TC 250
Temperature range:	-30 - +100 °C	-30 - +100°C	-20 - +100°C	-30 - +100°C
Consumption:	1000 Watt	1800 Watt	1800 Watt	1800 Watt
Cooling consumption 0 °C	500 Watt	500 Watt	500 Watt	500 Watt
Cooling consumption -10 °C	200 Watt	200 Watt	200 Watt	200 Watt
Temperature stability:	± 0.1 K	±0.01 K	±0.1 K	±0.01 K
Pressure / speed:	5 l / minute /120 mbar	8 l / minute /200 mbar	20 l / minute / 300 mbar	20 l / minute / 300 mbar
Temperature sensor:	PTC	Pt 100
Display:	LED	LCD	LED	LCD
Tank opening / depth:	300 mm x 190 mm /150 mm / 200 mm	300 mm x 190 mm /150 mm / 200 mm	300 mm x 190 mm /150 mm / 200 mm	300 mm x 190 mm /150 mm / 200 mm
Weight:	40 kg	40 kg	42 kg	42 kg
