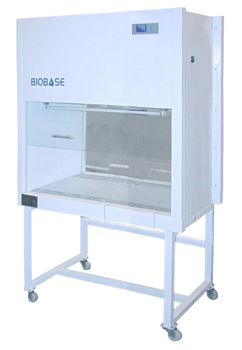

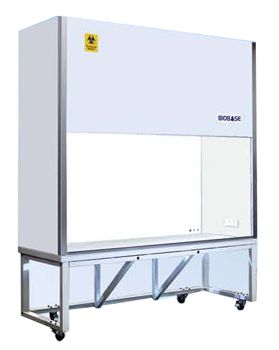

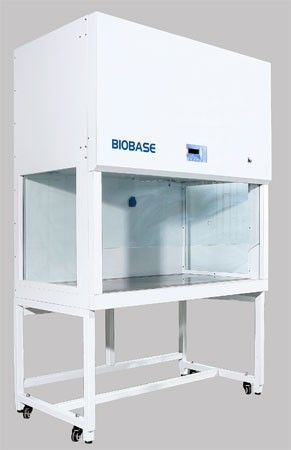

720 mm high, 19.110120 and 19.110170
720 mm high, 19.110120 and 19.110170

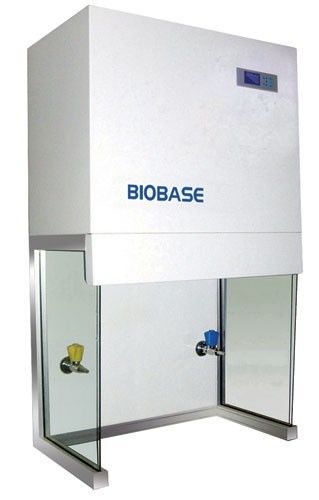

Benchtop 63 cm wide cabinet, without workplace
Benchtop 63 cm wide cabinet, without workplace

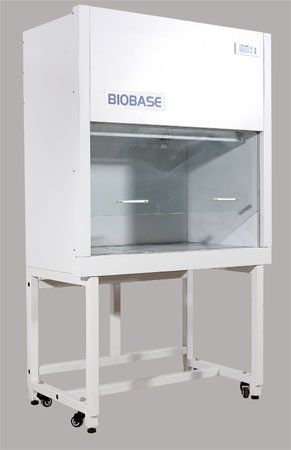

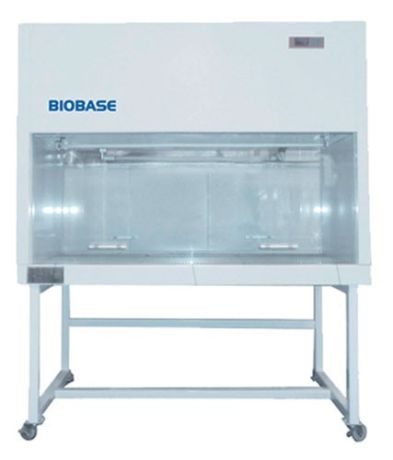

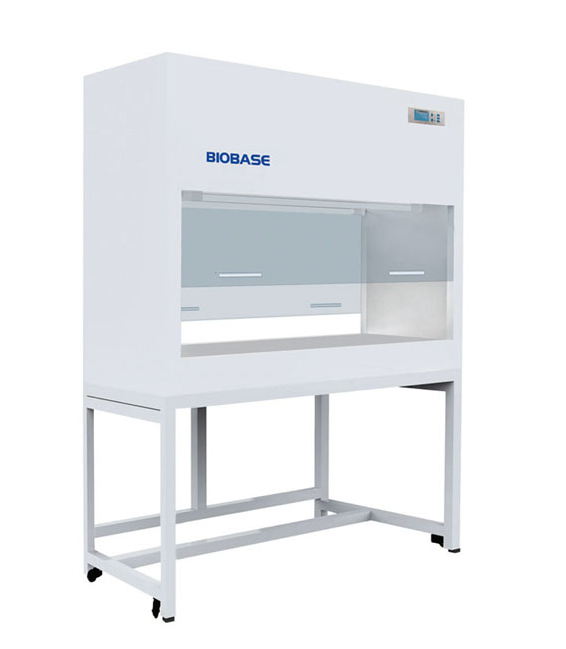

730 mm high cabinets with code numbers 19.110090 and 19.110130
730 mm high cabinets with code numbers 19.110090 and 19.110130

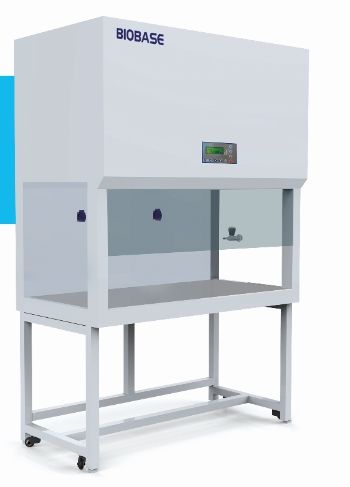

660 mm high. Code number 19.110080
660 mm high. Code number 19.110080

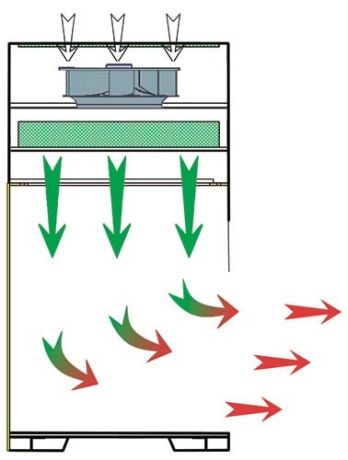

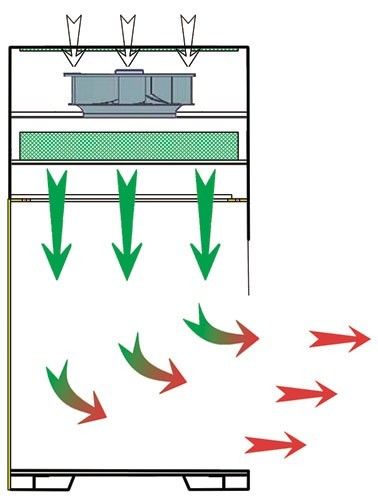

Air flow in the  vertical cabinets
Air flow in the vertical cabinets

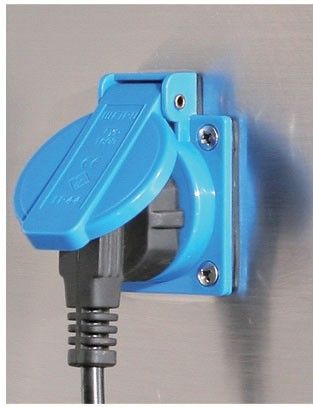

Water-free electric plug
Water-free electric plug

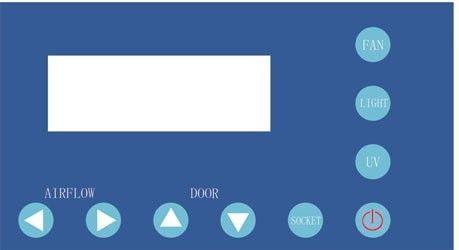

Controller for cabinets with code numbers 19.110120 and 19.110170
Controller for cabinets with code numbers 19.110120 and 19.110170
720 mm high, 19.110120 and 19.110170
Benchtop 63 cm wide cabinet, without workplace
730 mm high cabinets with code numbers 19.110090 and 19.110130
660 mm high. Code number 19.110080
Air flow in the  vertical cabinets
Water-free electric plug
Controller for cabinets with code numbers 19.110120 and 19.110170

BIOBASE vertical air flow laminar cabinet

Biobase

Request a price


In vertical flow cabinets (laminar box), the sterile air flows from top to bottom - protecting the samples from external contamination - and then leaves the cabinet above the work surface towards the operator. Only suitable for samples that are not dangerous to the operator.

H14 purity sterile air is produced by a HEPA filter, the efficiency of which is 99.999% for particles with a particle size above 0.3 microns, so the cleanliness classification of the workplace is Class 10. The service life of the HEPA filter is increased by the replaceable pre-filter.

The control unit of the BIOBASE devices is a variable design depending on the type. They also differ in their services. The cabinets basic function, such as switching ventilation, lighting, UV lamp on/off - all can be done with the controller. Cabinets with motorized windows (types 19.110120 and 19.110170) contain a more advanced controller that also implements safety functions. so e.g. an acoustic and visual alarm warns of clogging of the filter - reduction of air speed.

The work surface is a one-piece, polished stainless steel plate. The frame of the equipment is made of steel protected with antibacterial paint. The vertically sliding glass window can be completely pulled down if necessary, ensuring 100% closure.

All cabinets include fluorescent lighting, a UV lamp and a rolling / leveling stand. In addition to the "standard" accessories, the cabinets with code numbers 19.110120 and 19.110170 are also equipped with a gas valve and a mains plug.

The stand that can be placed on the table (19.110060) does not come with a stand, but a gas valve and a water tap are located on the back wall of the device.

Vertical air flow laminar cabinets specifications:

Specifications: BBS-V680 BBS-V800 BBS-V1300 BBS-V1800
Consumption: 160 W 350 W 400 W 450 W
Air flow velocity: 0,3 - 0,5 m/s 0,3 - 0,5 m/s 0,3 - 0,5 m/s 0,3 - 0,5 m/s
Noise: < 65 dB < 65 dB < 65 dB < 65 dB
Lighting: 8 W Fluorescent 8 W (LED) 12 W (LED) 16 W (LED)
UV lamp: 15 W 20 W 30 W 40 W
Workplace internal height: no workplace! 660 mm 750 mm 750 mm
Max. window height: - 490 mm 430 mm 430 mm
Window movement: no window manual motorized motorized
Internal dimensions: 630 x 375 x 615 mm 800 x 530 x 540 mm 1200 x 645 x 610 mm 1700 x 645 x 610 mm
External dimensions: 680 x 410 x 1160 mm 802 x 650 x 1550 mm 1300 x 750 x 2040 mm 1800 x 750 x 2040 mm
Weight: 50 kg 116 kg 228 kg 306 kg
Specifications: BBS-DDC BBS-SDC
Consumption: 150 W 250 W
Air flow velocity: 0,3 - 0,45 m/s 0,3 - 0,45 m/s
Noise: < 65 dB(A) < 65 dB(A)
Lighting: 12 W (LED) 16 W (LED)
UV lamp: 20 W 30 W
Max. window height: 400 mm 400 mm
Window movement: manual manual
Workplace internal height: 750 mm 750 mm
Internal dimensions: 935 x 530 x 650 mm 1335 x 530 x 650 mm
External dimensions: 1060 x 620 x 1850 mm 1460 x 620 x 1850 mm
Weight: 185 kg 231 kg

code
Name
net price
amount
in stock
19.110060
BBS-V680
Request a price
pc

"Can be placed on a table. Without a lower worktop! The surface of the table serves as a work surface. Vertical airflow, only protects the product. - Outer cover: painted steel. - Washable pre-filter to protect the main filter. - HEPA filter (1 pc) larger than 0.3 µ removes 99.999% of particles - Microprocessor control, with LED display - side windows made of tempered glass - water tap and gas tap Built-in fluorescent lighting: 14 W Built-in UV lamp: 15 W Interior space: 630 x 375 x 615 mm (h) External size: 680x410x1.160 mm (h) Low noise level: < 60 dBA Power consumption: 160 Watt Weight: 50 kg"

"Can be placed on a table. Without a lower worktop! The surface of the table serves as a work surface. Vertical airflow, only protects the product. - Outer cover: painted steel. - Washable pre-filter to protect the main filter. - HEPA filter (1 pc) larger than 0.3 µ removes 99.999% of particles - Microprocessor control, with LED display - side windows made of tempered glass - water tap and gas tap Built-in fluorescent lighting: 14 W Built-in UV lamp: 15 W Interior space: 630 x 375 x 615 mm (h) External size: 680x410x1.160 mm (h) Low noise level: < 60 dBA Power consumption: 160 Watt Weight: 50 kg"

19.110080
BBS-V800
Request a price
pc

"Vertical airflow, only protects the product. - Stainless steel work surface - Outer cover: painted steel. - Window and rear wall made of safety glass. The front window can be pulled up to 490 mm and completely closed. - Washable pre-filter to protect the main filter. - HEPA filter (1 pc) larger than 0.3 µ removes 99.999% of particles - Microprocessor control, with LED display Built-in LED lighting: 8 W Built-in UV lamp: 20 W Working height: 660 mm The stand is included. (The picture shows the optional rolling stand!) Internal space: 800 x 600 x 540 mm External dimensions: 802 x 615 x 1,575 mm (h) Low noise level: < 60 dBA Power input: 350 Watt Weight: 120 kg Electric plug, rollable and height-adjustable stand, pins must be ordered separately."

"Vertical airflow, only protects the product. - Stainless steel work surface - Outer cover: painted steel. - Window and rear wall made of safety glass. The front window can be pulled up to 490 mm and completely closed. - Washable pre-filter to protect the main filter. - HEPA filter (1 pc) larger than 0.3 µ removes 99.999% of particles - Microprocessor control, with LED display Built-in LED lighting: 8 W Built-in UV lamp: 20 W Working height: 660 mm The stand is included. (The picture shows the optional rolling stand!) Internal space: 800 x 600 x 540 mm External dimensions: 802 x 615 x 1,575 mm (h) Low noise level: < 60 dBA Power input: 350 Watt Weight: 120 kg Electric plug, rollable and height-adjustable stand, pins must be ordered separately."

19.110090
BBS-DSC
Request a price
pc

"Vertical airflow, only protects the product. You can sit on both sides. - Stainless steel work surface - Outer cover: painted steel. - A window made of safety glass It can be pulled up to 350 mm and completely closed. - Washable pre-filter to protect the main filter. - HEPA filter (1 pc) larger than 0.3 µ removes 99.999% of particles - Microprocessor control, with LED display - UV lamp timing can be set Built-in fluorescent lighting: 21 W Built-in UV lamp: 20 W Working height: 750 mm A rolling and leveling stand is included. Interior space: 940 x 630 x 540 mm External size: 1,040x650x1,730 mm (h) Low noise level: < 60 dBA Power input: 350 Watt Weight: 160 kg Electric plugs and taps must be ordered separately."

"Vertical airflow, only protects the product. You can sit on both sides. - Stainless steel work surface - Outer cover: painted steel. - A window made of safety glass It can be pulled up to 350 mm and completely closed. - Washable pre-filter to protect the main filter. - HEPA filter (1 pc) larger than 0.3 µ removes 99.999% of particles - Microprocessor control, with LED display - UV lamp timing can be set Built-in fluorescent lighting: 21 W Built-in UV lamp: 20 W Working height: 750 mm A rolling and leveling stand is included. Interior space: 940 x 630 x 540 mm External size: 1,040x650x1,730 mm (h) Low noise level: < 60 dBA Power input: 350 Watt Weight: 160 kg Electric plugs and taps must be ordered separately."

19.110090K
BBS-DDC
Request a price
pc

"Vertical airflow, only protects the product. Average flow speed: 0.3 - 0.5 m/s, adjustable speed - Stainless steel (304) work surface - Outer cover: painted steel. - The window made of safety glass can be pulled up to 310 mm. - Washable pre-filter to protect the main filter. - HEPA filter (1 pc) larger than 0.3 µ removes 99.999% of particles - With LED display - UV lamp timing can be set Built-in LED lighting: 12 W Built-in UV lamp: 18 W Working height: 750 mm A rolling and leveling stand is included. Internal space: 940 x 580 x 540 mm External size: 1,040x600x1,730 mm (h) Low noise level: < 65 dBA Power input: 350 Watt Weight: 131 kg Electric plugs and taps must be ordered separately."

"Vertical airflow, only protects the product. Average flow speed: 0.3 - 0.5 m/s, adjustable speed - Stainless steel (304) work surface - Outer cover: painted steel. - The window made of safety glass can be pulled up to 310 mm. - Washable pre-filter to protect the main filter. - HEPA filter (1 pc) larger than 0.3 µ removes 99.999% of particles - With LED display - UV lamp timing can be set Built-in LED lighting: 12 W Built-in UV lamp: 18 W Working height: 750 mm A rolling and leveling stand is included. Internal space: 940 x 580 x 540 mm External size: 1,040x600x1,730 mm (h) Low noise level: < 65 dBA Power input: 350 Watt Weight: 131 kg Electric plugs and taps must be ordered separately."

19.110120
BBS-V1300
Request a price
pc

Vertical airflow, only protects the product. - Stainless steel work surface - Outer casing: antibacterially painted steel. - Motorized front window can be raised to 430 mm, and the side windows are made of 5 mm thick safety, UV-filtering glass. - Washable pre-filter to protect the main filter. - HEPA filter (1 pc) larger than 0.3 µ removes 99.999% of particles - Microprocessor control, with LCD display - UV lamp timing can be set - Average speed of laminar flow: 0.3 - 0.5 m/sec Built-in LED lighting: 12 W Built-in UV lamp: 30 W Working height: 750 mm Rolling and leveling stand, gas tap, 2 pcs. waterproof plug accessory, max. 500 W CE mark. Interior space: 1,200 x 645 x 610 mm (WxDxH) External dimensions: 1,300x750x2,040 mm (h) Low noise level: < 65 dBA Power consumption: 400 Watt (+ from sockets) Weight: 228 kg

Vertical airflow, only protects the product. - Stainless steel work surface - Outer casing: antibacterially painted steel. - Motorized front window can be raised to 430 mm, and the side windows are made of 5 mm thick safety, UV-filtering glass. - Washable pre-filter to protect the main filter. - HEPA filter (1 pc) larger than 0.3 µ removes 99.999% of particles - Microprocessor control, with LCD display - UV lamp timing can be set - Average speed of laminar flow: 0.3 - 0.5 m/sec Built-in LED lighting: 12 W Built-in UV lamp: 30 W Working height: 750 mm Rolling and leveling stand, gas tap, 2 pcs. waterproof plug accessory, max. 500 W CE mark. Interior space: 1,200 x 645 x 610 mm (WxDxH) External dimensions: 1,300x750x2,040 mm (h) Low noise level: < 65 dBA Power consumption: 400 Watt (+ from sockets) Weight: 228 kg

19.110130
BBS-SSC
Request a price
pc

"Vertical airflow, only protects the product. You can work in it from both sides (4 people) - Stainless steel work surface - Outer casing: painted steel. - Windows made of safety glass They can be pulled up to 310 mm. - Washable pre-filter to protect the main filter. - HEPA filter (1 pc) larger than 0.3 µ removes 99.999% of particles - Microprocessor control, with LED display - UV lamp timing can be set Built-in LED lighting: 16 W Built-in UV lamp: 30 W Working height: 750 mm A rolling and leveling stand is included. Interior space: 1,340 x 560 x 545 mm External dimensions: 1,440x650x1,730 mm (h) Low noise level: < 65 dBA Power input: 600 Watts Weight: 186 kg Electric plugs and taps must be ordered separately."

"Vertical airflow, only protects the product. You can work in it from both sides (4 people) - Stainless steel work surface - Outer casing: painted steel. - Windows made of safety glass They can be pulled up to 310 mm. - Washable pre-filter to protect the main filter. - HEPA filter (1 pc) larger than 0.3 µ removes 99.999% of particles - Microprocessor control, with LED display - UV lamp timing can be set Built-in LED lighting: 16 W Built-in UV lamp: 30 W Working height: 750 mm A rolling and leveling stand is included. Interior space: 1,340 x 560 x 545 mm External dimensions: 1,440x650x1,730 mm (h) Low noise level: < 65 dBA Power input: 600 Watts Weight: 186 kg Electric plugs and taps must be ordered separately."

19.110130K
BBS-SDC
Request a price
pc

"Vertical airflow, only protects the product. - Stainless steel work surface - Outer cover: painted steel. - A window made of safety glass It can be pulled up to 310 mm. - Washable pre-filter to protect the main filter. - HEPA filter (1 pc) larger than 0.3 µ removes 99.995% of particles - Microprocessor control, with LED display - UV lamp timing can be set Built-in LED lighting: 16 W Built-in UV lamp: 30 W Working height: 750 mm A rolling and leveling stand is included. Interior space: 1,340 x 540 x 545 mm (h) External size: 1,440x615x1,770 mm (h) Low noise level: < 65 dBA Power input: 600 Watts Weight: 174 kg Electric plugs and taps must be ordered separately."

"Vertical airflow, only protects the product. - Stainless steel work surface - Outer cover: painted steel. - A window made of safety glass It can be pulled up to 310 mm. - Washable pre-filter to protect the main filter. - HEPA filter (1 pc) larger than 0.3 µ removes 99.995% of particles - Microprocessor control, with LED display - UV lamp timing can be set Built-in LED lighting: 16 W Built-in UV lamp: 30 W Working height: 750 mm A rolling and leveling stand is included. Interior space: 1,340 x 540 x 545 mm (h) External size: 1,440x615x1,770 mm (h) Low noise level: < 65 dBA Power input: 600 Watts Weight: 174 kg Electric plugs and taps must be ordered separately."

19.110170
BBS-V1800
Request a price
pc

"Vertical airflow, only protects the product. - Stainless steel work surface - Outer casing: antibacterially painted steel. - Motorized front window can be raised to 430 mm, and the side windows are made of 5 mm thick safety, UV-filtering glass. - Washable pre-filter to protect the main filter. - HEPA filter (1 pc) larger than 0.3 µ removes 99.999% of particles - Microprocessor control, with LCD display - UV lamp (40 W) timing can be set - Adjustable fan speed Built-in LED lighting: 16 W Built-in UV lamp, 253.7 nm (40 W) Working height: 750 mm Rolling and leveling stand, gas tap, 2 pcs. waterproof plug included. Interior space: 1,700 x 645 x 610 mm External size: 1,800x750x2,010 mm (h) Low noise level: < 65 dBA Power input: 450 Watt (+ sockets max. 500 W) Weight: 308 kg"

"Vertical airflow, only protects the product. - Stainless steel work surface - Outer casing: antibacterially painted steel. - Motorized front window can be raised to 430 mm, and the side windows are made of 5 mm thick safety, UV-filtering glass. - Washable pre-filter to protect the main filter. - HEPA filter (1 pc) larger than 0.3 µ removes 99.999% of particles - Microprocessor control, with LCD display - UV lamp (40 W) timing can be set - Adjustable fan speed Built-in LED lighting: 16 W Built-in UV lamp, 253.7 nm (40 W) Working height: 750 mm Rolling and leveling stand, gas tap, 2 pcs. waterproof plug included. Interior space: 1,700 x 645 x 610 mm External size: 1,800x750x2,010 mm (h) Low noise level: < 65 dBA Power input: 450 Watt (+ sockets max. 500 W) Weight: 308 kg"

19.110200
BBS-SDC2100
Request a price
pc

"Vertical airflow, only protects the product. - Stainless steel work surface - Outer cover: painted steel. - Motorized window can be raised to 520 mm, made of safety glass - Washable pre-filter to protect the main filter. - HEPA filter (1 pc) larger than 0.3 µ removes 99.999% of particles - Microprocessor control, with LCD display, with audio and visual alarm (low flow, clogged filter, high window), with operating hours counter, UV lamp operating time monitoring. Built-in fluorescent lighting: 36 W Built-in UV lamp: 40 W Internal space: 2,000 x 705 x 1,100 mm External dimensions: 2,100x740x2,550 mm (h) Low noise level: < 60 dBA Weight: 350 kg Electric plugs and taps must be ordered separately."

"Vertical airflow, only protects the product. - Stainless steel work surface - Outer cover: painted steel. - Motorized window can be raised to 520 mm, made of safety glass - Washable pre-filter to protect the main filter. - HEPA filter (1 pc) larger than 0.3 µ removes 99.999% of particles - Microprocessor control, with LCD display, with audio and visual alarm (low flow, clogged filter, high window), with operating hours counter, UV lamp operating time monitoring. Built-in fluorescent lighting: 36 W Built-in UV lamp: 40 W Internal space: 2,000 x 705 x 1,100 mm External dimensions: 2,100x740x2,550 mm (h) Low noise level: < 60 dBA Weight: 350 kg Electric plugs and taps must be ordered separately."
