CAP-FARM 60/B wall-mounted extraction device

Labor Security

Request a price

There are also two versions of the wall extractor: equipped with an H14 (HEPA) filter and an activated carbon filter. The two devices look the same from the outside.

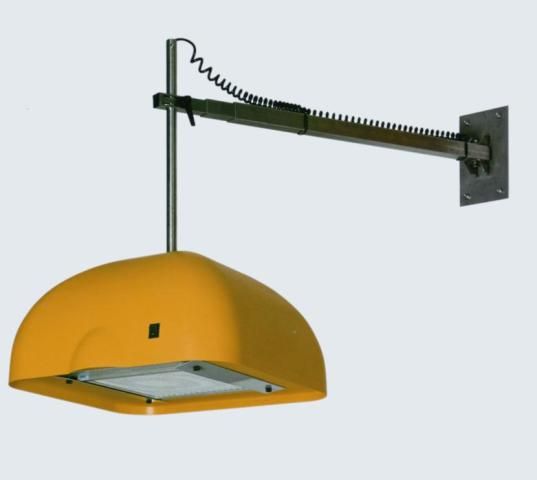

The wall extractor has a convex shape and consists of an umbrella-like roof that can be attached to the wall and a wall bracket. The extractor hood is made of deep-drawn aluminum painted yellow.

The electric fan – depending on the type – is an H14 class, so-called sucks air through an absolute filter or an activated carbon filter (BC version).

Power of the built-in fan: 34 Watt. Suction speed: 130 / 180 m3/hour (H14 / activated carbon filter). The filter(s) must be replaced when the amount of suction has noticeably decreased. The filter is easily replaceable.

The wall bracket is telescopic and can be extended horizontally between 90 and 190 cm.

The hood can be lowered to 45 cm compared to the console, and it can be rotated within a range of 180 degrees.


code

Type

Weight

External size

Filter

net price

amount

in stock

30.CAP60B

CAP-FARM 60/B

19.5 kg

60 × 55 × 86 cm

H14

Request a price

"Minimum extension: 90 cm (center of extractor from the wall) Max. extension: 190 cm Arm rotation: 180 degrees Height adjustment: max. 45 cm. The extractor is equipped with an ""Absolut"" (HEPA) filter, so it allows class H14 clean air back into the lab space. Built-in fan, power: 34 Watt. Suction speed with HEPA filter: 130 m3/hour It is necessary to replace the filter as soon as the suction power is not adequate. Not for use with solvents! External dimensions: 60 x 56 x 86 cm."

30.F008

spare dust filter

0.5 kg

30,5 x 30,5 x 6,8 cm

H14 (HEPA)

Request a price

Size: 305 x 305 x 68 mm

Spare activated carbon filter with regulator

30.F007

spare odor filter

0.5 kg

24,5 x 23,5 x 3 cm

activated carbon

Request a price

"PVC/stainless steel. Granulated active carbon filling. in acid and alkali storage cabinets and in CAP-FARM C and BC type devices. Safetybox AA600, AB600 AA120NEW, AAF120NEW, AB 30/30 EST, KIT01 devices. Dimensions: 245x235x30 h (mm) CUNCTATOR® (CTT09) Electronic unit for the active carbon filter system. A sound and a flashing buzzer warn the operator when the filter needs to be replaced."
