CAP-FARM 60 type table extraction device

Laboreszköz katalógus Marketplace 0Cart

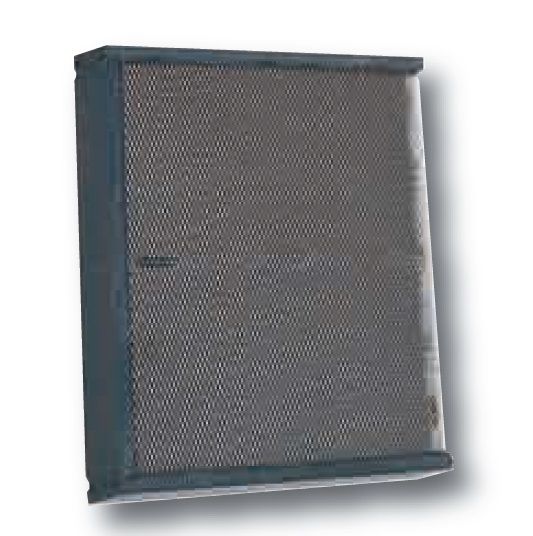

30.F008 HEPA filter for CAP-Farm

30.F007C activated carbon filter to CAP-FARM

CAP-FARM 60 type table extraction device

Labor Security

Request a price

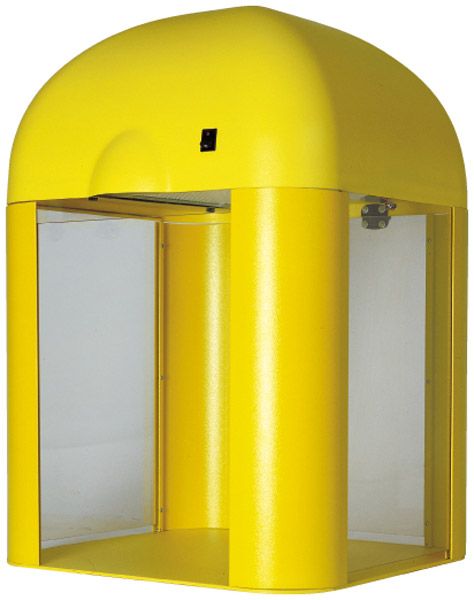

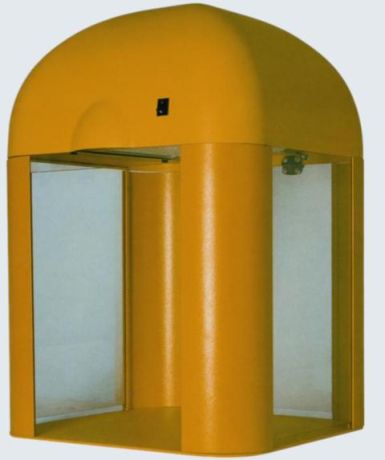

There are two versions of the table-top local extraction booth: equipped with a HEPA filter and equipped with an activated carbon filter. The two devices look the same from the outside.

The frame of the devices is made of yellow extruded ABS. The side windows of the cab are made of plexiglass. The top of the cab - painted yellow - is made of deep-drawn aluminum.

The electric fan - depending on the type - sucks air through an H14 class, so-called absolute filter, or an activated carbon filter (C version).

Power of the built-in fan: 34 Watt. Suction speed: 130 / 180 m3/hour (H14 / activated carbon filter). The filter(s) must be replaced when the amount of suction has noticeably decreased. The filter is easily replaceable.

Width of the operating opening: 36 cm.

Dimensions of the interior of the booths: 58 x 54 x 53 cm (WxDxH)


code

Type

Weight

External size

Filter

net price

amount

in stock

30.CAP60

CAP-FARM 60

24 kg

60 × 55 × 87 cm

H14 (HEPA)

Request a price

"The device is equipped with an ""Absolut"" (HEPA) filter, so it allows class H14 clean air back into the lab space. It prevents dust treated in the extractor from entering the laboratory air. Suction and filtration takes place inside the dome. Built-in fan, power: 34 Watt. Suction speed with HEPA filter: 130 m3/hour It is necessary to replace the filter as soon as the suction power is not adequate. Material: the housing is made of yellow Acrylonitrile-Butadiene-Styrene (ABS) with good chemical resistance. The side walls are made of plexiglass, the roof is made of deep-drawn aluminum. With a lamp. External dimensions: 60 x 55 x 87 cm (WxDxH) Internal dimensions: 58 x 54 x 53 cm Front opening size: 360 x 530 (h) mm Weight: 24 kg."

30.CAP60C

CAP-FARM 60 C

24 kg

60 × 55 × 87 cm

activated carbon

Request a price

"Pharmaceutical extractor. Equipped with an active carbon filter. It is permissible to work with a small amount of chemicals in the extractor! Built-in fan, power: 34 Watt. Suction speed with carbon filter: 180 m3/hour It is necessary to replace the filter as soon as the suction power is not adequate. Absorbent material: the housing is made of yellow Acrynitrile-Butadiene-Styrol (ABS) with good chemical resistance. The side walls are made of plexiglass. the roof is made of deep-drawn aluminum. External dimensions: 60 x 55 x 87 cm (WxDxH) Internal dimensions: 58 x 54 x 53 cm Front access: 360 x 530 mm Weight: 24 kg."
