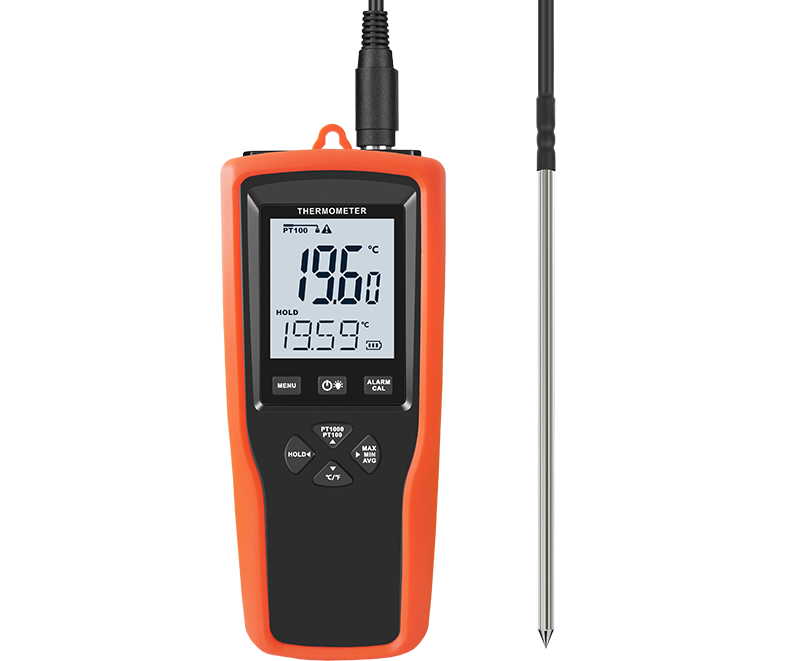

Digital, 1 or 2-channel thermometer (PT) with data collection function
Request a price
Single or dual channel resistance thermometers with data acquisition function. These instruments use pulse measurement technology, which reduces the instrument's power consumption and minimizes the heat generated by the probe. The instrument's design provides the temperature with a resolution of 0.01 °C, with an accuracy of ±(0.05%|t|+0.05)℃ in addition to the factory settings.

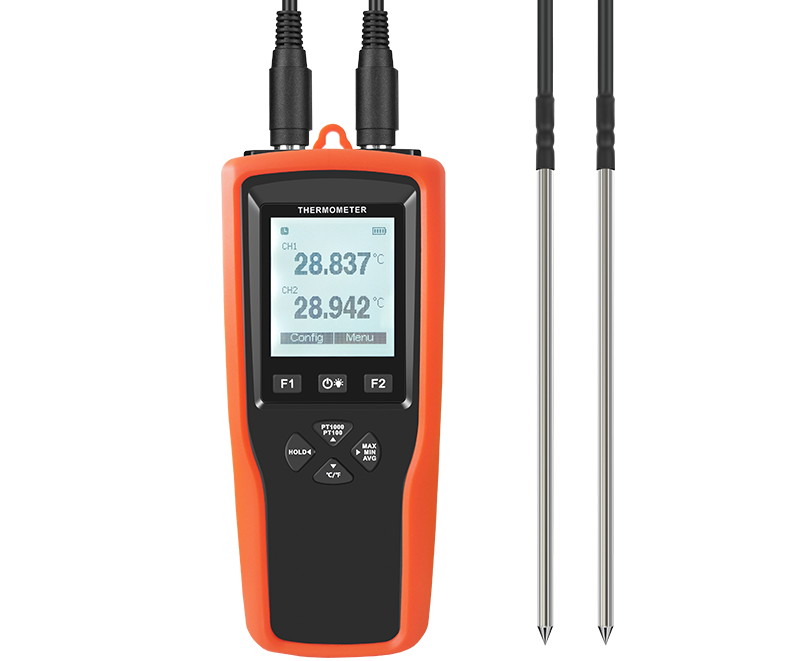

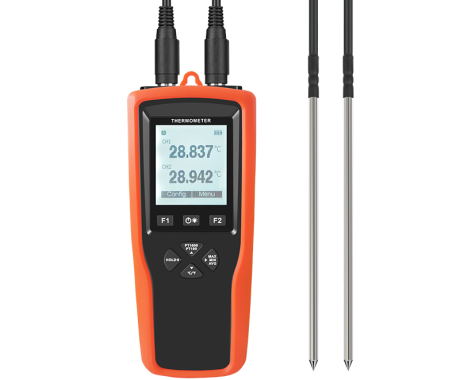

In dual channel mode, the HPT-202DH device displays the difference between the two measured temperatures, while in single channel mode it also displays the temperature change curve.
The device can be calibrated by the user at several points, which can greatly improve the measurement accuracy of the device.

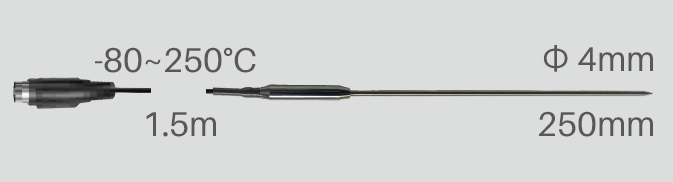

The instruments are compatible with PT100 and PT1000 temperature sensors.
The device records all data during the measurement, which can be viewed on the device or on a computer using the MicoUSB connection. The data stored in the instrument can be restored at any time or downloaded in multiple file formats (txt, csv, xls, dlg), which effectively reduces the risk of accidental data loss for users.
| Specifications: | HPT-101DH és HPT-202DH |
|---|---|
| Measuring range: |
-200 ... 800 °C |
| Resolution: |
PT100: 0,01 °C (-200 - 800 °C), PT 1000: 0,001 °C (-99.999~99.999℃) 0,01 °C (others) |
| Accuracy: |
PT100: ±(0,05%|t|+0,10)℃. PT1000: ±(0,05%|t|+0,05)℃. |
| Protection: | IP52 |
| Dimensions: | 174 x 73 x 40 mm |
| Weight: | 210 g |
