DIGTOR 22 C, DIGTOR 22 C-U and DIGTOR 22 C-8 oil and petrol centrifuge

Laboreszköz katalógus Marketplace 0Cart

Digtor 22 C

Digtor 22 C-U

Digtor 22 C-8

DIGTOR 22 C, DIGTOR 22 C-U and DIGTOR 22 C-8 oil and petrol centrifuge

Ortoalresa

Request a price

Efficient, fast and versatile centrifuges, which were specially developed for working with oily materials. The devices include both heated and non-heated versions.

Various rotors and adapters are available for centrifuges. The devices have an automatic rotor recognition system, so the acceleration and speed of the inserted rotor are maximized, there is no need to pay special attention to this.

The motorized lid opening significantly facilitates the use of the device. The end of the program and a possible error phenomenon (imbalance) are accompanied by a sound and a light signal. The digital (LED) display shows the current speed and the time remaining in operation. The last set parameters are stored in the memory.

More details

Specifications:	DIGTOR 22 C	DIGTOR 22 C-U	DIGTOR 22 C-8
Consumption:	1260 W	440 W	1260 W
Capacity:	4 x 100 ml	4 x 100 ml	8 x 100 ml
Heatable	yes	no	yes
Timer:	1 sec – 99 hour / continuous	1 sec – 99 hour / continuous	1 sec – 99 hour / continuous
Speed setting:	100 rpm	100 rpm	100 rpm
Max. RPM:	3,000 rpm	3,000 rpm	3,000 rpm
Max. RCF:	2,425 xg (rotor dependent)	2,425 xg (rotor dependent)	2,425 xg (rotor dependent)
Dimensions:	530 x 640 x 420 mm	530 x 640 x 420 mm	530 x 640 x 420 mm
Weight:	77 kg	74 kg	77 kg


code

Name

net price

amount

in stock

41.CE238

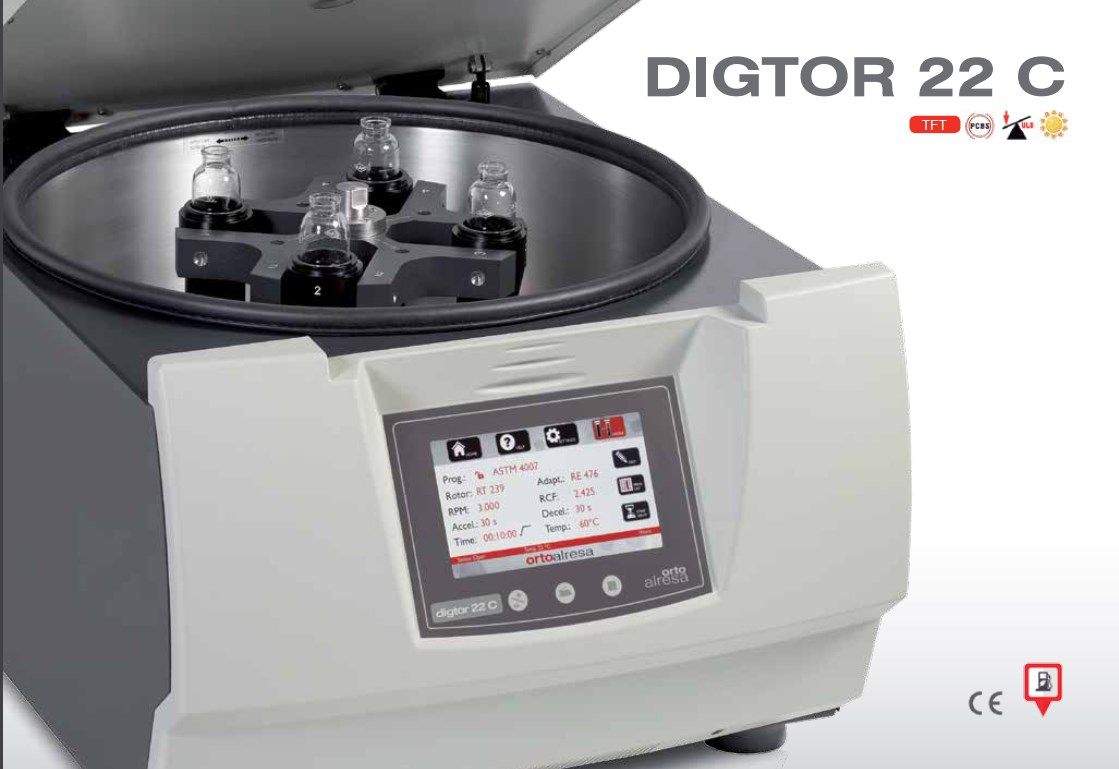

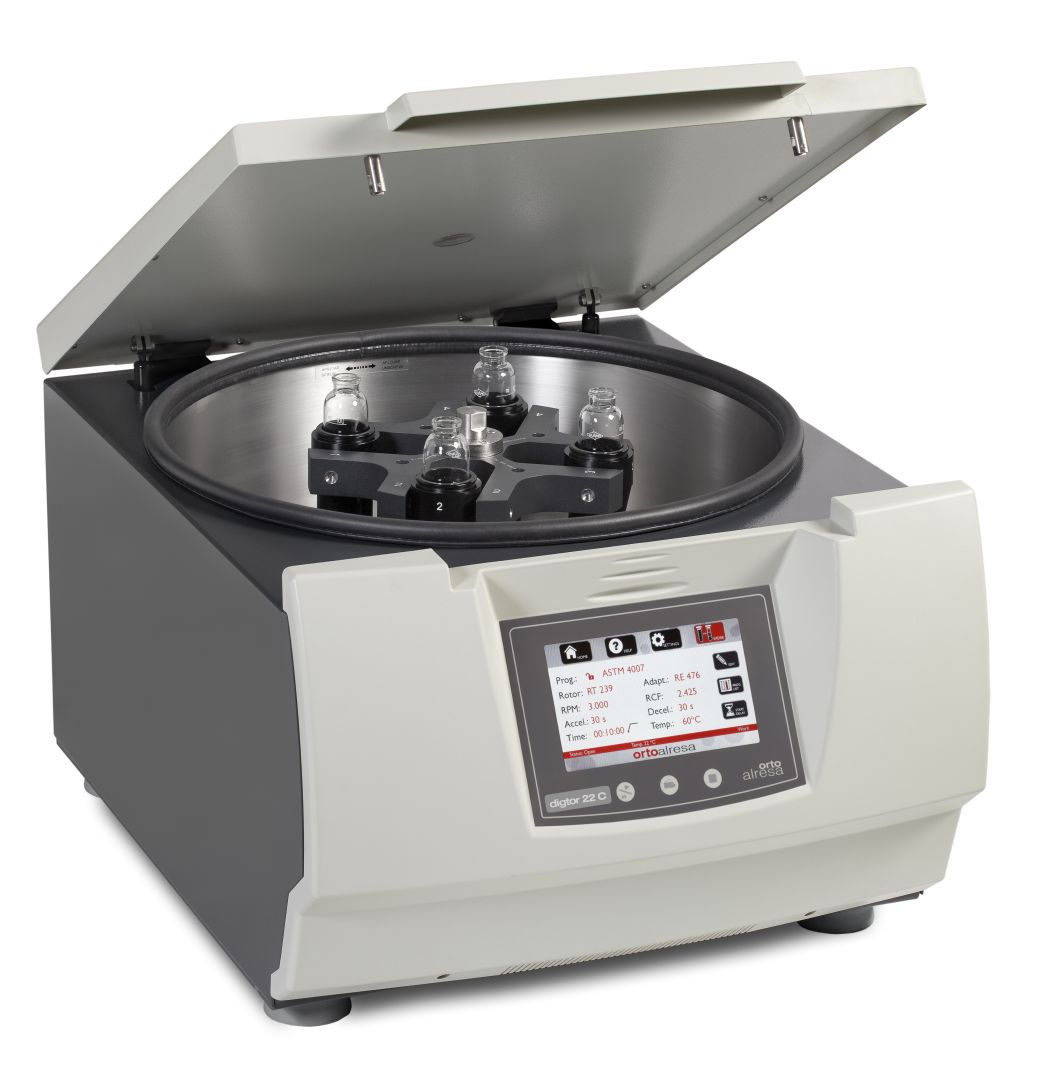

DIGTOR 22 C heatable oil centrifuge

Request a price

Designed for oil/petrol applications according the standards listed below. Large, desktop design. Induction motor: silent and maintenance-free operation. Max. speed: 3,000 rpm (with suitable rotor). Max. acceleration: 2,425 xg. Heated design: room temperature +5-80°C, overheating protection. Microprocessor control and digital display of parameters (rotor and adapter type, speed, acceleration, date, time). Color touch-screen TFT display. The display is easy to read even from a distance of 3 meters. Automatic rotor recognition, list of accessories, storage of 40 programs in memory. TFT display: RPM, RCF, time, acceleration/deceleration. imbalance (ULS = unbalancing location system). Password protected program modification. Speed programming: 10 RPM/ 10xg steps, overspeed protection. Time setting: 1 minute - 99 hours, in 1 second increments. Start, stop, roof opening and short spin with adjustable speed. Imbalance sensor, automatic shutdown, electric lid lock. The messages appearing on the display continuously inform the operator about the status of the device. Acoustic and visual messages, warning the user about the status of the device. Automatic roof closing system, emergency roof opening, cannot be opened while driving, Noise level: < 60 dBA 530x640x400 mm (WxDxH), Weight: 76 kg, Voltage: 220-230 V, 50-60 Hz, 1.260 W. Compliance: ASTM D 91, D 96, D 893, D 1796, D 2273, D 2709, D 2711, D 4007, D 5546, API 2542, API 2548, BS 4385, ISO 3734, ISO 9030, IP75, IP 359, NF M07-020

DIGTOR 22 C-U (fűtés nélküli) laborcentrifuga, 4 x 100 ml

41.CE242

DIGTOR 22 C-U oil centrifuge without heating

Request a price

"Nagyméretű, asztali kivitel. Indukciós motor: csendes és karbantartásmentes működés. Max. fordulatszám: 3.000 f./perc (megfelelő rotorral). Max. gyorsulás: 2.425 xg. Fűtés nélküli kivitel. Mikroprocesszoros vezérlés és a paraméterek (rotor és adapter típusa, fordulatszám, gyorsulás, dátum, idő) digitális kijelzése. Színes érintő-képernyős TFT kijelző. A kijelző 3 méteres távolságból is jól olvasható. Automatikus rotorfelismerés, tartozékok listája, 40 program tárolása a memóriában. TFT kijelzőn: RPM, RCF, idő, gyorsulás/lassulás.kiegyensúlyozatlanság (ULS = unbalancing location system). Jelszóval védett programódosítás. Sebesség programozása: 10 RPM/ 10xg lépésekben, sebesség-túllépés védelem. Idő beállítása: 1 másodperc - 99 óra, 1 másodperces lépesekben. Start, stop, tető nyitás és rövid centrifugálás beállítható sebességgel. Kiegyensúlyozatlanság érzékelő, automatikus lekapcsolás, elektromos fedélzár. A kijelzőn megjelenő üzenetek folyamatosan tájékoztatják a kezelőt a készülék státuszáról. Akusztikus és vizuális üzenetek, felhasználó figyelmeztetése a készülék állapotára. Automata tető záró rendszer, vészhelyzeti tetőnyitás, futás alatt nem lehet nyitni, Zajszint: < 60 dBA Méretei: 53 x 64 x 42 cm Tömeg: 74 kg Megfelelőség: ASTM D 91, D 893, D 2273, D 2709, D 5546, API 2542, API 2548, BS 4385, DIN 51793"

Centrifuge Digtor 22 - C-8 ASTM. 6" y 8", 230-220 V 50-60 Hz. Heated

41.CE240

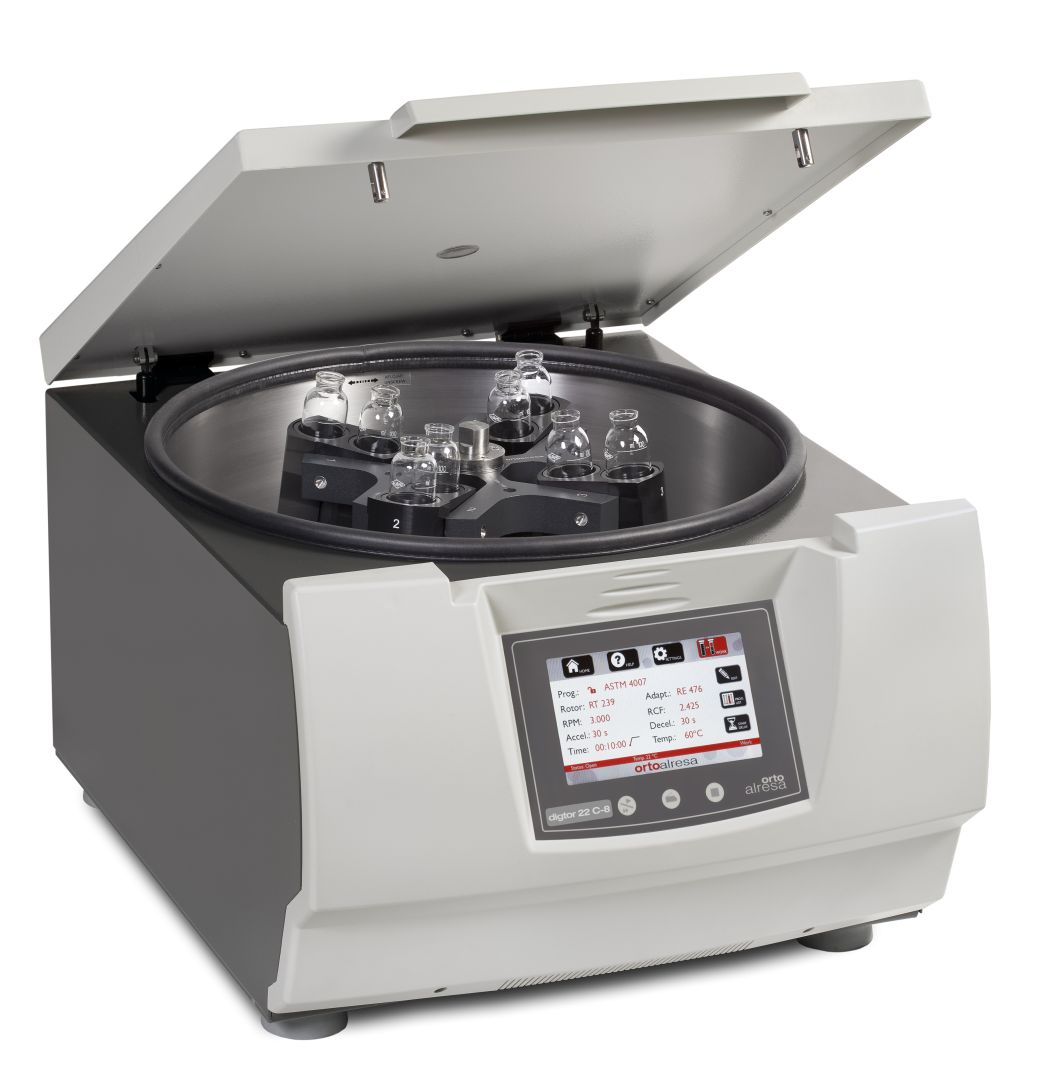

DIGTOR 22 C-8 large capacity heatable oil centrifuge

Request a price

Large, table-top design. Induction motor: quiet and maintenance-free operation. Max. speed: 3,000 rpm (with suitable rotor). Max. acceleration: 2,425 xg. Heated version: room temperature +5-80°C, overheating protection. Microprocessor control and digital display of parameters (rotor and adapter type, speed, acceleration, date, time). Color touch-screen TFT display. The display is easy to read even from a distance of 3 meters. Automatic rotor recognition, list of accessories, storage of 40 programs in the memory. On TFT display: RPM, RCF, time, acceleration/deceleration. unbalance (ULS = unbalancing location system). Password-protected programming. Speed programming: 10 RPM/ 10xg in steps, overspeed protection. Time setting: 1 second - 99 hours, in 1 second increments. Start, stop, lid opening and short spin with adjustable speed. Unbalance sensor, automatic shutdown, electric lid lock. Messages on the display constantly inform the operator about the status of the device. Acoustic and visual messages, user warning of the device status. Automatic door closing system, emergency door opening, cannot be opened while running, Noise level: < 60 dBA Dimensions: 53 x 64 x42 cm Weight: 77 kg Conformity: ASTM D 91, D 96, D 893, D 1796, D 2273, D 2709, D 2711, D 4007, D 5546, API 2542, API 2548, BS 4385, ISO 3734, ISO 9030, IP75, IP 359, NF M07-020, DIN 51793

Downloadable documents

Orto Alresa Digtor C, C-U and C-8 datasheet

Back

related products

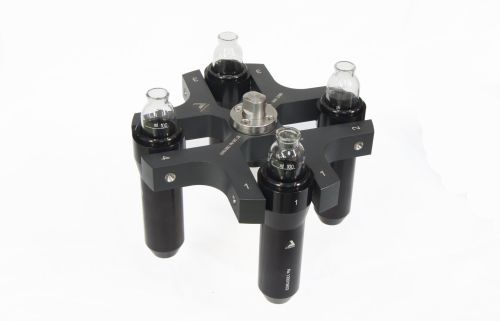

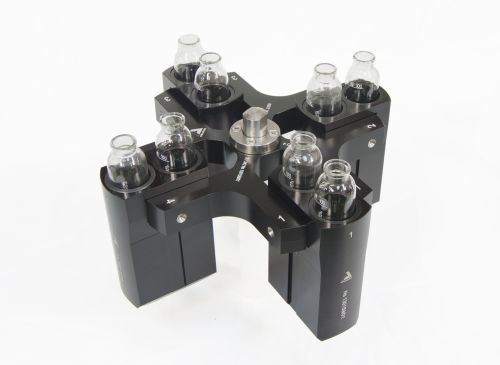

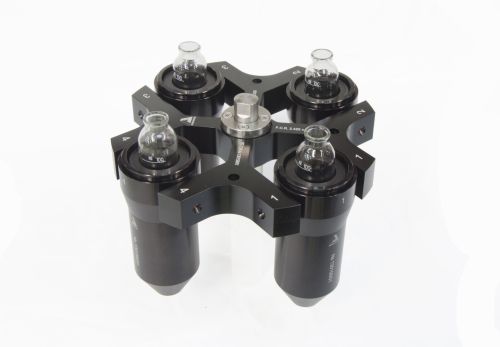

Rotor and adapter for DIGTOR 22 C, DIGTOR 22 C-U and DIGTOR 22 C-8 centrifuges
