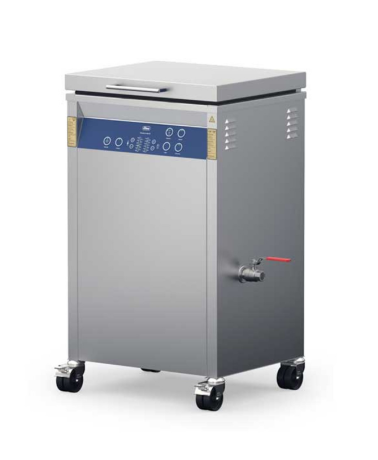

Elmasonic xtra ST 600H with noise protection cover
Elmasonic xtra ST 600H with noise protection cover

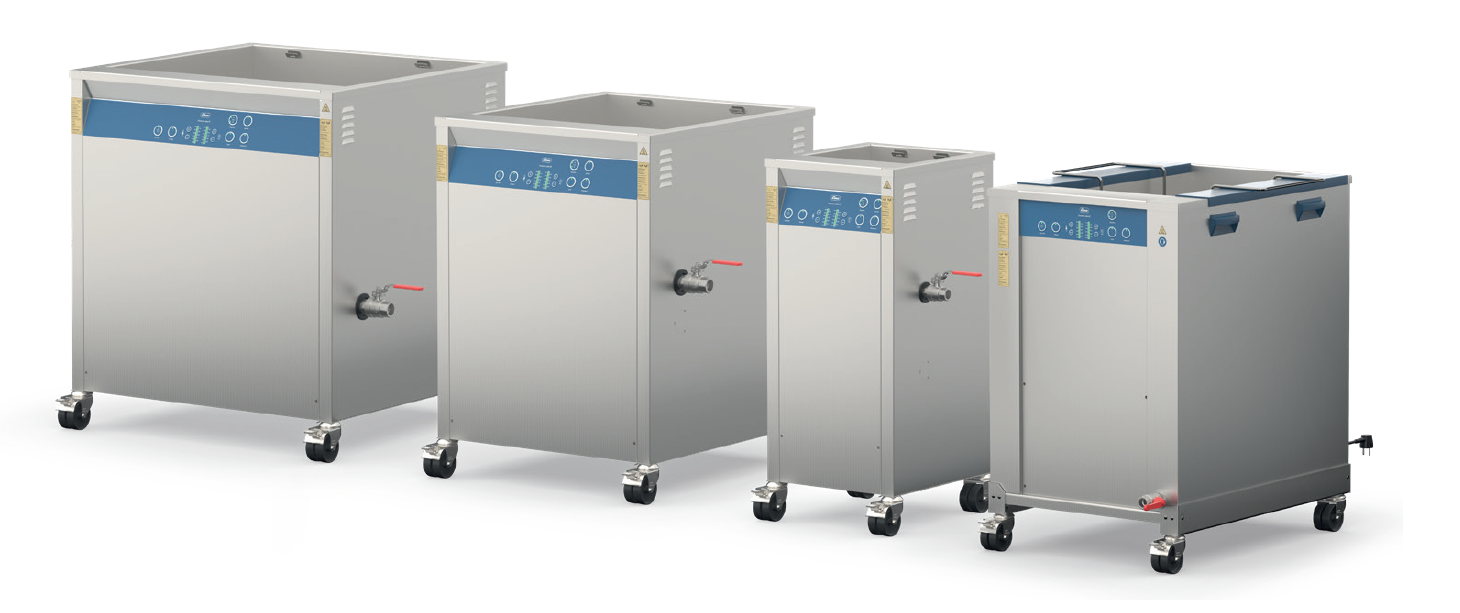

Elmasonic xtra ST industrial ultrasonic water baths

Elma

Request a price


The devices with a robust structure, which can operate with two frequencies (25 and 45 kHz), are also suitable for increased use, so they can be used without problems in the long term for industrial production or service procedures. Adjustable temperature between 30 °C and 80 °C.


The heating range of PULSE and SWEEP and water baths equipped with various extra safety functions is 30-80°C. The ultrasound only turns on after the set temperature is reached. The device turns off automatically at 90 °C bath temperature or after 12 hours of continuous operation. DYNAMIC function is the alternating use of the PULSE and SWEEP functions with 20% increased ultrasound power.

All types are equipped with rollers and a drain plug. The manufacturer guarantees the high-quality stainless steel against rusting for two years.

More details

Technical data:

Specifications: 300H 500H 600H 800H
Volume: 28.8 litre 48.7 litre 56.3 litre 81.0 litre
Recommended filling volume: 22.0 litre 42.0 litre 45.0 litre 70.0 litre
Power consumption: 2000 Watt 2000 Watt 2400 / 3800 Watt 5200 Watt
Heating power: 1400 Watt 1400 Watt 1400 / 2800 Watt 4200 Watt
Tank dimensions (W x D x H): 290 x 265 x 280 mm 290 x 265 x 480 mm 460 x 295 x 330 mm 460 x 295 x 480 mm
Device dimensions (W x D x H): 595 x 555 x 935 mm 595 x 555 x 935 mm 765 x 595 x 935 mm 765 x 595 x 935 mm
Drain internal diameter: 10 mm 10 mm 10 mm 10 mm
Weight: 40 kg 45 kg 55 kg 61 kg
Specifications: 1400H 1600H 1900S 2500H
Volume: 120.3 litre 156.3 litre 186.7 litre 245.1 litre
Recommended filling volume: 97.0 litre 133.0 litre 134.0 litre 215.0 litre
Power consumption: 6800 Watt 9500 Watt 3350 Watt 9500 Watt
Heating power: 5000 Watt 7500 Watt 2300 Watt 7500 Watt
Tank dimensions (W x D x H): 550 x 565 x 315 mm 550 x 565 x 415 mm 410 x 600 x 680 mm 615 x 700 x 485 mm
Device dimensions (W x D x H): 875 x 865 x 935 mm 875 x 865 x 935 mm 655 x 965 x 960 mm 1020 x 915 x 935 mm
Drain internal diameter: 10 mm 10 mm 10 mm 10 mm
Weight: 87 kg 93 kg 75 kg 107 kg



Elmasonic Xtra ST sorozat

code
Type
Volume
Phase / voltage
Power
net price
amount
in stock
25.1076429
300H
22 l
1 / 230 V
2000 W
Request a price
pc

"Recommended operating capacity: 22 liters. Designed for industrial operations, with high cleaning power and robust design Heated version: 30°C - 80°C Electronic timing: 1-30 minutes or continuous operation (automatic switch-off is activated after 12 hours) Homogeneous ultrasound field (Sweep function) Effective cleaning with 20% increased pulses (Pulse function) Automatic change of Sweep and Pulse function (Dynamic function) Multi-frequency: 25 kHz (rough cleaning), 45 kHz (removal of oils, greases) LED temperature and timing display. Power consumption: 2000 W Heating power: 1400 W (230-240V) Stainless tank: 290 x 265 x 280 mm (W x D x H), Drain hose internal diameter: 10 mm External dimensions: 595 x 555 x 935 mm Weight: 40 kg"

"Recommended operating capacity: 22 liters. Designed for industrial operations, with high cleaning power and robust design Heated version: 30°C - 80°C Electronic timing: 1-30 minutes or continuous operation (automatic switch-off is activated after 12 hours) Homogeneous ultrasound field (Sweep function) Effective cleaning with 20% increased pulses (Pulse function) Automatic change of Sweep and Pulse function (Dynamic function) Multi-frequency: 25 kHz (rough cleaning), 45 kHz (removal of oils, greases) LED temperature and timing display. Power consumption: 2000 W Heating power: 1400 W (230-240V) Stainless tank: 290 x 265 x 280 mm (W x D x H), Drain hose internal diameter: 10 mm External dimensions: 595 x 555 x 935 mm Weight: 40 kg"

25.1076433
500H
42 l
1 / 230 V
2000 W
Request a price
pc

"Recommended operating capacity: 42 liters. Designed for industrial operations, with high cleaning power, robust design Heatable: 30°C - 80°C Electronic timing: 1- 30 minutes or continuous operation (automatic shutdown activated after 12 hours) - Homogeneous ultrasonic field (Sweep function) - Effective cleaning with 20% increased pulses (Pulse function) - Automatic change of Sweep and Pulse function (Dynamic function) Multifrequency: 25 kHz (coarse cleaning), 45 kHz (removal of oils, fats) LED temperature and timing display. Power: 2000 W Effective ultrasonic input: 540/600 W / max 2160/2400 W Heating power: 1400 W (230-240V) Stainless steel tank (W x D x H): 290 x 265 x 480 mm Drain hose inner diameter: 10 mm External dimensions: 595 x 555 x 935 mm Weight: 45 kg"

"Recommended operating capacity: 42 liters. Designed for industrial operations, with high cleaning power, robust design Heatable: 30°C - 80°C Electronic timing: 1- 30 minutes or continuous operation (automatic shutdown activated after 12 hours) - Homogeneous ultrasonic field (Sweep function) - Effective cleaning with 20% increased pulses (Pulse function) - Automatic change of Sweep and Pulse function (Dynamic function) Multifrequency: 25 kHz (coarse cleaning), 45 kHz (removal of oils, fats) LED temperature and timing display. Power: 2000 W Effective ultrasonic input: 540/600 W / max 2160/2400 W Heating power: 1400 W (230-240V) Stainless steel tank (W x D x H): 290 x 265 x 480 mm Drain hose inner diameter: 10 mm External dimensions: 595 x 555 x 935 mm Weight: 45 kg"

25.1076435
600H
45 l
1 / 230 V
2400 W
Request a price
pc

"Designed for industrial operations, with high cleaning power and robust design Volume: 56,3 litre Recommended filling volume: 45 litre Heated version: 30°C - 80°C Electronic timing: 1-30 minutes or continuous operation (automatic switch-off is activated after 12 hours) Homogeneous ultrasound field (Sweep function) Effective cleaning with 20% increased pulses (Pulse function) Automatic change of Sweep and Pulse function (Dynamic function) Multi-frequency: 25 kHz (rough cleaning), 45 kHz (removal of oils, greases) LED temperature and timing display. Heating power: 1,400 W Power: 2,400 W (230-240V) Stainless tank: 460 x295 x 330 mm (W x D x H) Drain hose internal diameter: 10 mm External dimensions: 765 x 595 x 935 mm Weight: 55 kg"

"Designed for industrial operations, with high cleaning power and robust design Volume: 56,3 litre Recommended filling volume: 45 litre Heated version: 30°C - 80°C Electronic timing: 1-30 minutes or continuous operation (automatic switch-off is activated after 12 hours) Homogeneous ultrasound field (Sweep function) Effective cleaning with 20% increased pulses (Pulse function) Automatic change of Sweep and Pulse function (Dynamic function) Multi-frequency: 25 kHz (rough cleaning), 45 kHz (removal of oils, greases) LED temperature and timing display. Heating power: 1,400 W Power: 2,400 W (230-240V) Stainless tank: 460 x295 x 330 mm (W x D x H) Drain hose internal diameter: 10 mm External dimensions: 765 x 595 x 935 mm Weight: 55 kg"

25.1076431
600H
45 l
3 / 400 V
3800 W
Request a price
pc

"Designed for industrial operations, with high cleaning power and robust design Volume: 56.3 litre Recommended filling volume: 45 litre Heated version: 30°C - 80°C Electronic timing: 1-30 minutes or continuous operation (automatic switch-off is activated after 12 hours) Homogeneous ultrasound field (Sweep function) Effective cleaning with 20% increased pulses (Pulse function) Automatic change of Sweep and Pulse function (Dynamic function) Multi-frequency: 25 kHz (rough cleaning), 45 kHz (removal of oils, greases) LED temperature and timing display. Heating power: 2,800 W Power: 3,800 W (3x400V) Stainless tank: 460 x 295 x 330 mm (W x D x H) Drain hose internal diameter: 10 mm External dimensions: 765 x 595 x 935 mm Weight: 55 kg"

"Designed for industrial operations, with high cleaning power and robust design Volume: 56.3 litre Recommended filling volume: 45 litre Heated version: 30°C - 80°C Electronic timing: 1-30 minutes or continuous operation (automatic switch-off is activated after 12 hours) Homogeneous ultrasound field (Sweep function) Effective cleaning with 20% increased pulses (Pulse function) Automatic change of Sweep and Pulse function (Dynamic function) Multi-frequency: 25 kHz (rough cleaning), 45 kHz (removal of oils, greases) LED temperature and timing display. Heating power: 2,800 W Power: 3,800 W (3x400V) Stainless tank: 460 x 295 x 330 mm (W x D x H) Drain hose internal diameter: 10 mm External dimensions: 765 x 595 x 935 mm Weight: 55 kg"

25.1076438
800H
70 l
3 / 400 V
5200 W
Request a price
pc

"Designed for industrial operations, with high cleaning power and robust design Volume: 81 litre Recommended filling volume: 70 litre Heated version: 30°C - 80°C Electronic timing: 1-30 minutes or continuous operation (automatic switch-off is activated after 12 hours) Homogeneous ultrasound field (Sweep function) Effective cleaning with 20% increased pulses (Pulse function) Automatic change of Sweep and Pulse function (Dynamic function) Multi-frequency: 25 kHz (rough cleaning), 45 kHz (removal of oils, greases) LED temperature and timing display. Power consumption: 5,200 W Heating power: 4,200 W (3x400V) Stainless tank: 460 x 295 x 330 mm Drain hose internal diameter: 10 mm External dimensions: 765 x 595 x 935 mm Weight: 61 kg"

"Designed for industrial operations, with high cleaning power and robust design Volume: 81 litre Recommended filling volume: 70 litre Heated version: 30°C - 80°C Electronic timing: 1-30 minutes or continuous operation (automatic switch-off is activated after 12 hours) Homogeneous ultrasound field (Sweep function) Effective cleaning with 20% increased pulses (Pulse function) Automatic change of Sweep and Pulse function (Dynamic function) Multi-frequency: 25 kHz (rough cleaning), 45 kHz (removal of oils, greases) LED temperature and timing display. Power consumption: 5,200 W Heating power: 4,200 W (3x400V) Stainless tank: 460 x 295 x 330 mm Drain hose internal diameter: 10 mm External dimensions: 765 x 595 x 935 mm Weight: 61 kg"

25.1076440
1400H
97 l
3 / 400 V
6800 W
Request a price
pc

"Designed for industrial operations, with high cleaning power and robust design Volume: 120,3 litre Recommended filling volume: 97 litre Heated version: 30°C - 80°C Electronic timing: 1-30 minutes or continuous operation (automatic switch-off is activated after 12 hours) Homogeneous ultrasound field (Sweep function) Effective cleaning with 20% increased pulses (Pulse function) Automatic change of Sweep and Pulse function (Dynamic function) Multi-frequency: 25 kHz (rough cleaning), 45 kHz (removal of oils, greases) LED temperature and timing display. Heating power: 5,000 W Total power: 6,800 Watt, (3x400V) Stainless tank: 550 x 565 x 315 mm Drain hose internal diameter: 10 mm External dimensions: 875 x 865 x 935 mm Weight: 87 kg"

"Designed for industrial operations, with high cleaning power and robust design Volume: 120,3 litre Recommended filling volume: 97 litre Heated version: 30°C - 80°C Electronic timing: 1-30 minutes or continuous operation (automatic switch-off is activated after 12 hours) Homogeneous ultrasound field (Sweep function) Effective cleaning with 20% increased pulses (Pulse function) Automatic change of Sweep and Pulse function (Dynamic function) Multi-frequency: 25 kHz (rough cleaning), 45 kHz (removal of oils, greases) LED temperature and timing display. Heating power: 5,000 W Total power: 6,800 Watt, (3x400V) Stainless tank: 550 x 565 x 315 mm Drain hose internal diameter: 10 mm External dimensions: 875 x 865 x 935 mm Weight: 87 kg"

25.1076442
1600H
133 l
3 / 400 V
9500 W
Request a price
pc

"Recommended operating capacity: 133 liters. Designed for industrial operations, with high cleaning power, robust design Heatable design: 30°C - 80°C Electronic timing: 1- 30 minutes or continuous operation (automatic shutdown activated after 12 hours) - Homogeneous ultrasonic field (Sweep function) - Effective cleaning with 20% increased pulses (Pulse function) - Automatic change of Sweep and Pulse function (Dynamic function) Multifrequency: 25 kHz (coarse cleaning), 45 kHz (removal of oils, fats) LED temperature and timing display. Power: 9500 W Ultrasonic effective input: 1600/1800 W / max 6400/7200 W Heating power: 7500 W (230-240V) Stainless steel tank (W x D x H): 550 x 565 x 415 mm Drain tap internal diameter: 10 mm External dimensions: 875 x 565 x 415 mm Weight: 45 kg"

"Recommended operating capacity: 133 liters. Designed for industrial operations, with high cleaning power, robust design Heatable design: 30°C - 80°C Electronic timing: 1- 30 minutes or continuous operation (automatic shutdown activated after 12 hours) - Homogeneous ultrasonic field (Sweep function) - Effective cleaning with 20% increased pulses (Pulse function) - Automatic change of Sweep and Pulse function (Dynamic function) Multifrequency: 25 kHz (coarse cleaning), 45 kHz (removal of oils, fats) LED temperature and timing display. Power: 9500 W Ultrasonic effective input: 1600/1800 W / max 6400/7200 W Heating power: 7500 W (230-240V) Stainless steel tank (W x D x H): 550 x 565 x 415 mm Drain tap internal diameter: 10 mm External dimensions: 875 x 565 x 415 mm Weight: 45 kg"

25.1076443
1900S
134 l
1 / 230 V
3350 W
Request a price
pc

"Designed for industrial operations, with high cleaning power and robust design Heated version: 30°C - 80°C Electronic timing: 1-15 minutes or continuous operation, max. 12 hours. Homogeneous ultrasound field (Sweep function) The Pulse function can be switched on to increase the ultrasonic cleaning effect in case of stubborn dirt. In addition, operational readiness (reaching the cavitation threshold) is optimized with freshly prepared cleaning fluid, as well as after changing the basket (shortening the cleaning time). (Pulse function) The Sweep and Pulse functions work alternately automatically. The power of the ultrasound temporarily increases by up to 20%. At the same time, the cleaning effect is enhanced by the even distribution of ultrasound in the ultrasonic bath (Dynamic function) Multi-frequency: 25 kHz (rough cleaning), 45 kHz (removal of oils, greases) LED display Power: 9,500 W Stainless tank: 410 / 600 / 680 mm, 186.7 liters, recommended filling volume 134 liters. Drain tap: ID: 10 mm External dimensions: 655 / 965 / 960 mm. Weight: 75 kg IP23 compliance. Power supply: 3x400 V/N/PE The lid and the basket must be ordered separately."

"Designed for industrial operations, with high cleaning power and robust design Heated version: 30°C - 80°C Electronic timing: 1-15 minutes or continuous operation, max. 12 hours. Homogeneous ultrasound field (Sweep function) The Pulse function can be switched on to increase the ultrasonic cleaning effect in case of stubborn dirt. In addition, operational readiness (reaching the cavitation threshold) is optimized with freshly prepared cleaning fluid, as well as after changing the basket (shortening the cleaning time). (Pulse function) The Sweep and Pulse functions work alternately automatically. The power of the ultrasound temporarily increases by up to 20%. At the same time, the cleaning effect is enhanced by the even distribution of ultrasound in the ultrasonic bath (Dynamic function) Multi-frequency: 25 kHz (rough cleaning), 45 kHz (removal of oils, greases) LED display Power: 9,500 W Stainless tank: 410 / 600 / 680 mm, 186.7 liters, recommended filling volume 134 liters. Drain tap: ID: 10 mm External dimensions: 655 / 965 / 960 mm. Weight: 75 kg IP23 compliance. Power supply: 3x400 V/N/PE The lid and the basket must be ordered separately."

25.1076439C
2500H
215 l
3 / 400 V
9500 W
Request a price
pc

"Designed for industrial operations, with high cleaning power and robust design Heated version: 30°C - 80°C Electronic timing: 1-15 minutes or continuous operation, max. 12 hours. Homogeneous ultrasound field (Sweep function) The Pulse function can be switched on to increase the ultrasonic cleaning effect in case of stubborn dirt. In addition, operational readiness (reaching the cavitation threshold) is optimized with freshly prepared cleaning fluid, as well as after changing the basket (shortening the cleaning time). (Pulse function) The Sweep and Pulse functions work alternately automatically. The power of the ultrasound temporarily increases by up to 20%. At the same time, the cleaning effect is enhanced by the even distribution of ultrasound in the ultrasonic bath (Dynamic function) Multi-frequency: 25 kHz (rough cleaning), 45 kHz (removal of oils, greases) LED display Power: 9,500 W Stainless tank: 615 x 700 x 485 mm, 245,1 liters, recommended filling volume 215 liters. Drain tap: ID: 10 mm External dimensions: 1020 x 915 x 935 mm Weight: 107 kg IP23 compliance. Power supply: 3x400 V/N/PE The lid and the basket must be ordered separately."

"Designed for industrial operations, with high cleaning power and robust design Heated version: 30°C - 80°C Electronic timing: 1-15 minutes or continuous operation, max. 12 hours. Homogeneous ultrasound field (Sweep function) The Pulse function can be switched on to increase the ultrasonic cleaning effect in case of stubborn dirt. In addition, operational readiness (reaching the cavitation threshold) is optimized with freshly prepared cleaning fluid, as well as after changing the basket (shortening the cleaning time). (Pulse function) The Sweep and Pulse functions work alternately automatically. The power of the ultrasound temporarily increases by up to 20%. At the same time, the cleaning effect is enhanced by the even distribution of ultrasound in the ultrasonic bath (Dynamic function) Multi-frequency: 25 kHz (rough cleaning), 45 kHz (removal of oils, greases) LED display Power: 9,500 W Stainless tank: 615 x 700 x 485 mm, 245,1 liters, recommended filling volume 215 liters. Drain tap: ID: 10 mm External dimensions: 1020 x 915 x 935 mm Weight: 107 kg IP23 compliance. Power supply: 3x400 V/N/PE The lid and the basket must be ordered separately."
