Fume hood, chemical resistant design, 820 - 1620 mm internal width
Fume hood, chemical resistant design, 820 - 1620 mm internal width

Fume hood, chemical resistant design

Biobase

Request a price

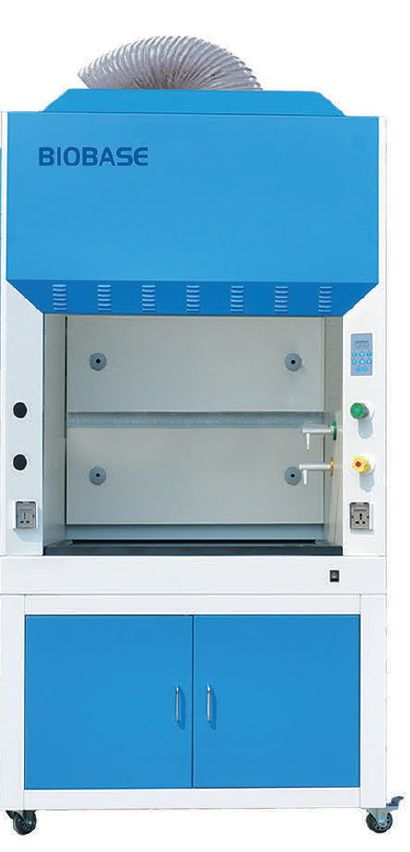

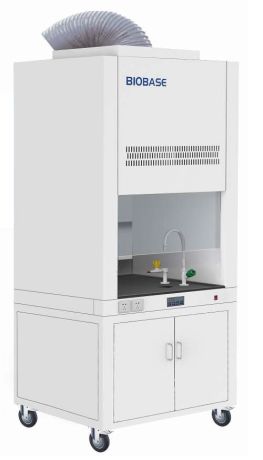

The extraction (chemical) cabinets of BIOBASE for the tasks to be performed in the laboratory, which emit fumes harmful to health, are made in two versions:

- the first version (E) with a manually operated (max.H=750 mm) window.

- the second version (A) is made with a motorized window (max. H=520 mm).

The frame of the cabinet is 1.2 mm thick steel plate protected with corrosion-resistant paint. The interior of the cabinet is covered with acid- and alkali-resistant, high-quality melamine sheets. The work table is a chemical-resistant "physiochemical" board. The speed of the built-in exhaust fan can be adjusted in 9 steps.

The window is motorized, maximum height: 520 mm.

Cabin equipment:

  • LED lighting
  • UV lamp
  • two pcs. waterproof electrical plug
  • built-in centrifugal fan
  • water tap, gas tap
  • drain
  • lower cabinet
  • it is mounted on a rolling frame.
  • 4 meters of flexible (300 mm) hose for connection to the external extractor.

The connection with the above flexible pipe allows the cabinet to be moved around the lab.

Optionally, a special activated carbon filter can be installed in the cabinets, which helps to protect the environment.

Specifications: FH1000(A) FH1200(A) FH1500(A) FH1800(A)
Consumption: 400 W 400 W 500 W 500 W
Air flow velocity: 0,3-0,8 m/s 0,3-0,8 m/s 0,3-0,8 m/s   0,3-0,8 m/s
Noise: ≤60 dB ≤60 dB ≤60 dB ≤60 dB
Lamp: LED lamp and UV lamp LED lamp and UV lamp LED lamp and UV lamp LED lamp and UV lamp
Workplace internal height: 850 mm 850 mm 850 mm 850 mm
Internal dimensions: 820 x 620 x 750 mm 1020 x 670 x 750 mm 1320 x 670 x 750 mm 1620 x 670 x 750 mm
External dimensions: 1000 x 750 x 2200 mm 1200 x 800 x 2200 mm 1500 x 800 x 2200 mm 1800 x 800 x 2200 mm
Weight: 230 kg 270 kg 370 kg 420 kg

code
Name
net price
amount
in stock
19.170080
FH1000
Request a price
pc

"The frame of the booth is 1.2 mm thick steel plate protected with corrosion-resistant paint. The interior of the booth is covered with acid- and alkali-resistant, high-quality melamine sheets. The work table is a chemical-resistant ""physiochemical"" board. Working height: 850 mm. Cabin equipment: - microprocessor control, LCD display - The built-in extraction centrifugal fan, its speed can be regulated in 9 steps - The window is motorized, maximum height: 520 mm. - LED lighting (8 W), UV lamp (20 W), - two pcs. water-free electric plug, max load capacity: 500 W - water tap, gas tap, drain, - lower cabinet, - mounted on a rolling frame. - 4 meters of flexible (?300 mm) pipe for connection to the external extractor. Optionally, a special activated carbon filter can be installed in the booths. Air speed: 0.3-0.8 m/s. Noise level < 60 dB Energy consumption: 400 Watt (+ sockets) Workspace dimensions: 820x670x730 mm (WxDxH) External dimensions: 1,040x800x2,200 mm. Weight: 230 kg"

"The frame of the booth is 1.2 mm thick steel plate protected with corrosion-resistant paint. The interior of the booth is covered with acid- and alkali-resistant, high-quality melamine sheets. The work table is a chemical-resistant ""physiochemical"" board. Working height: 850 mm. Cabin equipment: - microprocessor control, LCD display - The built-in extraction centrifugal fan, its speed can be regulated in 9 steps - The window is motorized, maximum height: 520 mm. - LED lighting (8 W), UV lamp (20 W), - two pcs. water-free electric plug, max load capacity: 500 W - water tap, gas tap, drain, - lower cabinet, - mounted on a rolling frame. - 4 meters of flexible (?300 mm) pipe for connection to the external extractor. Optionally, a special activated carbon filter can be installed in the booths. Air speed: 0.3-0.8 m/s. Noise level < 60 dB Energy consumption: 400 Watt (+ sockets) Workspace dimensions: 820x670x730 mm (WxDxH) External dimensions: 1,040x800x2,200 mm. Weight: 230 kg"

19.170100
FH1200
Request a price
pc

"The frame of the booth is 1.2 mm thick steel plate protected with corrosion-resistant paint. The interior of the booth is covered with acid- and alkali-resistant, high-quality melamine sheets. The work table is a chemical-resistant ""physiochemical"" board. Working height: 850 mm. Cabin equipment: - microprocessor control, LCD display - The built-in extraction centrifugal fan, its speed can be regulated in 9 steps - The window is motorized, maximum height: 520 mm. - LED lighting (12 W), UV lamp (20 W), - two pcs. water-free electric plug, max load capacity: 500 W - water tap, gas tap, drain, - lower cabinet, - mounted on a rolling frame. - 4 meters of flexible (?300 mm) PVC pipe for connection to the external extractor. Optionally, a special activated carbon filter can be installed in the booths. Air speed: 0.3-0.8 m/s. Noise level < 68 dB Energy consumption: 400 Watt (+ sockets) Workspace dimensions: 1,020x670x730 mm (WxDxH) External dimensions: 1,240x800x2,200 mm. Weight: 275 kg"

"The frame of the booth is 1.2 mm thick steel plate protected with corrosion-resistant paint. The interior of the booth is covered with acid- and alkali-resistant, high-quality melamine sheets. The work table is a chemical-resistant ""physiochemical"" board. Working height: 850 mm. Cabin equipment: - microprocessor control, LCD display - The built-in extraction centrifugal fan, its speed can be regulated in 9 steps - The window is motorized, maximum height: 520 mm. - LED lighting (12 W), UV lamp (20 W), - two pcs. water-free electric plug, max load capacity: 500 W - water tap, gas tap, drain, - lower cabinet, - mounted on a rolling frame. - 4 meters of flexible (?300 mm) PVC pipe for connection to the external extractor. Optionally, a special activated carbon filter can be installed in the booths. Air speed: 0.3-0.8 m/s. Noise level < 68 dB Energy consumption: 400 Watt (+ sockets) Workspace dimensions: 1,020x670x730 mm (WxDxH) External dimensions: 1,240x800x2,200 mm. Weight: 275 kg"

19.170130
FH1500
Request a price
pc

"The frame of the booth is 1.2 mm thick steel plate protected with corrosion-resistant paint. The interior of the booth is covered with acid- and alkali-resistant, high-quality melamine sheets. The work table is a chemical-resistant ""physiochemical"" board. Working height: 850 mm. Cabin equipment: - microprocessor control, LCD display - The built-in extraction centrifugal fan, its speed can be regulated in 9 steps - The window is motorized, maximum height: 520 mm. - LED lighting (16 W), UV lamp (20 W), - two pcs. water-free electric plug, max load capacity: 500 W - water tap, gas tap, drain, - lower cabinet, - mounted on a rolling frame. - 4 meters of flexible (?300 mm) pipe for connection to the external extractor. Optionally, a special activated carbon filter can be installed in the booths. Air speed: 0.3-0.8 m/s. Noise level < 60 dB Energy consumption: 500 Watt (+ sockets) Workspace dimensions: 1,320x670x730 mm (WxDxH) External dimensions: 1,540x800x2,200 mm. Weight: 370 kg"

"The frame of the booth is 1.2 mm thick steel plate protected with corrosion-resistant paint. The interior of the booth is covered with acid- and alkali-resistant, high-quality melamine sheets. The work table is a chemical-resistant ""physiochemical"" board. Working height: 850 mm. Cabin equipment: - microprocessor control, LCD display - The built-in extraction centrifugal fan, its speed can be regulated in 9 steps - The window is motorized, maximum height: 520 mm. - LED lighting (16 W), UV lamp (20 W), - two pcs. water-free electric plug, max load capacity: 500 W - water tap, gas tap, drain, - lower cabinet, - mounted on a rolling frame. - 4 meters of flexible (?300 mm) pipe for connection to the external extractor. Optionally, a special activated carbon filter can be installed in the booths. Air speed: 0.3-0.8 m/s. Noise level < 60 dB Energy consumption: 500 Watt (+ sockets) Workspace dimensions: 1,320x670x730 mm (WxDxH) External dimensions: 1,540x800x2,200 mm. Weight: 370 kg"

19.170160
FH1800
Request a price
pc

"The frame of the booth is 1.2 mm thick steel plate protected with corrosion-resistant paint. The inside of the cabin is covered with acid- and alkali-resistant, high-quality melamine sheets. The work table is a chemical-resistant ""physiochemical"" board. Working height: 850 mm. Cabin equipment: - microprocessor control, LCD display - The built-in extraction centrifugal fan (2 pcs), its speed can be regulated in 9 steps - The window is motorized, maximum height: 520 mm, adjustable. - LED lighting (16 W), UV lamp: 253.7 nm, - two pcs. water-free electric plug, max load capacity: 500 W - water tap, gas tap, drain, - lower cabinet, - mounted on a rolling frame. - 4 meters of flexible (?300 mm) pipe for connection to the external extractor. Optionally, a special activated carbon filter can be installed in the booths. Air speed: 0.3-0.8 m/s. Noise level < 68 dB Supply voltage. 220V ±10%, 60/50Hz Energy consumption: 500 Watt (+ sockets) Workspace dimensions: 1,620x670x730 mm (WxDxH) External dimensions: 1,840x800x2,200 mm. Weight: 420 kg"

"The frame of the booth is 1.2 mm thick steel plate protected with corrosion-resistant paint. The inside of the cabin is covered with acid- and alkali-resistant, high-quality melamine sheets. The work table is a chemical-resistant ""physiochemical"" board. Working height: 850 mm. Cabin equipment: - microprocessor control, LCD display - The built-in extraction centrifugal fan (2 pcs), its speed can be regulated in 9 steps - The window is motorized, maximum height: 520 mm, adjustable. - LED lighting (16 W), UV lamp: 253.7 nm, - two pcs. water-free electric plug, max load capacity: 500 W - water tap, gas tap, drain, - lower cabinet, - mounted on a rolling frame. - 4 meters of flexible (?300 mm) pipe for connection to the external extractor. Optionally, a special activated carbon filter can be installed in the booths. Air speed: 0.3-0.8 m/s. Noise level < 68 dB Supply voltage. 220V ±10%, 60/50Hz Energy consumption: 500 Watt (+ sockets) Workspace dimensions: 1,620x670x730 mm (WxDxH) External dimensions: 1,840x800x2,200 mm. Weight: 420 kg"
