LABOPORT diaphragm vacuum pump and compressor, medium chemical resistance

KNF

Request a price

Devices marked KT: Teflon-coated membrane and special plastic (PPS) pump head.

Application: for vacuum filtration, water pump replacement.

The raw material of the parts in contact with the pumped medium:

Pump type	Pump head	Membrane	Valve	Datasheet
N 86.KT.18	PPS	Teflon coated	FFPM	KNF N 86 series
N 816.3 KT.18	PPS	Teflon coated	FFPM	KNF N 816.3 series
N 816.1.2 KT.18	PPS	Teflon coated	FFPM	KNF N 816.1.2 series
N 938.50 KT.18	PPS	Teflon coated	FFPM	KNF N 938.50 series
N 840 G	Teflon	Teflon coated	FFPM	KNF N 840 series
N 820 G	Teflon	Teflon coated	FFPM	KNF N 820 G


code

Type

Air transport

Pressure

Vacuum

Size

Weight

net price

amount

in stock

33.N86KT18

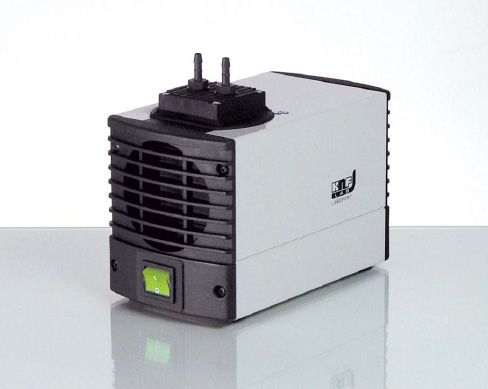

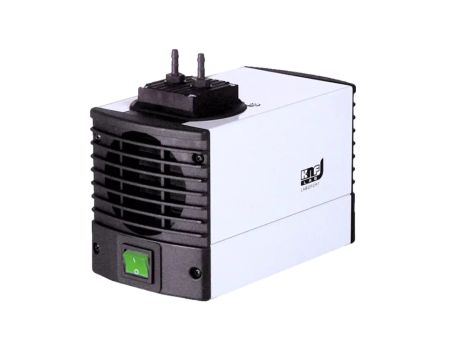

N 86 KT.18

5.5 liters / minute

2.5 bar

160 mbar

90 x 164 x 141 mm

1.9 kg

Request a price

oilfree membrane pump. PPS pump head, PTFE covered membrane, FFPM valve. Air flow: 5,5 l/min Ultimate vacuum: 160 mbar Power: 65 W Weight: 1,9 kg Outer dimension: 164 x 141 x 90 mm (H x D x W) IP 20 protection

33.N8163KT18

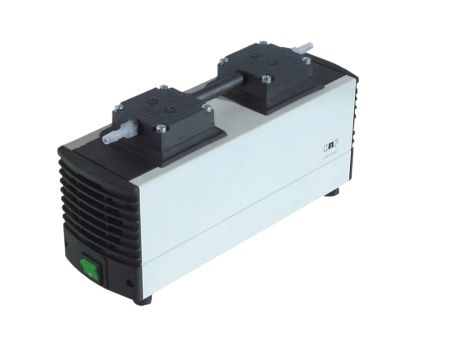

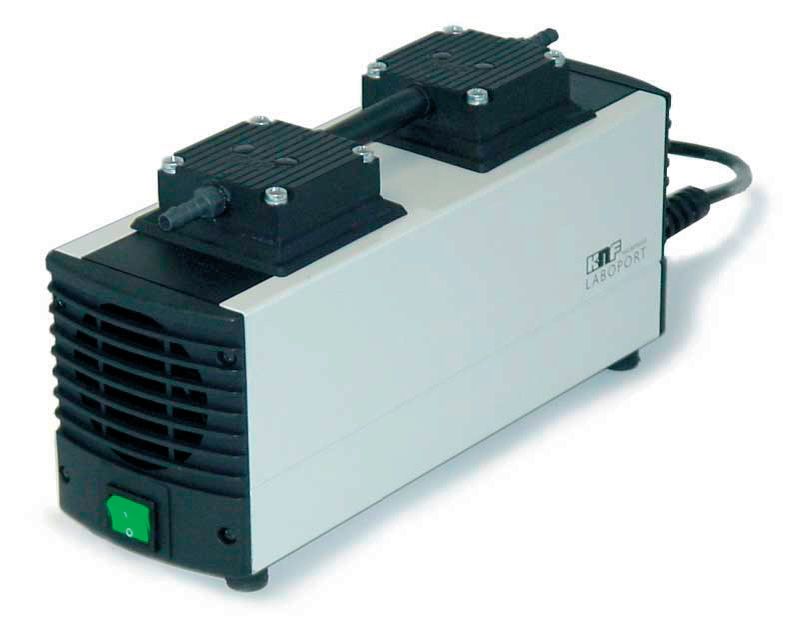

N 816.3 KT.18

16 liters / minute

0.5 bar

20 mbar

90 x 361 x 141 mm

4 kg

Request a price

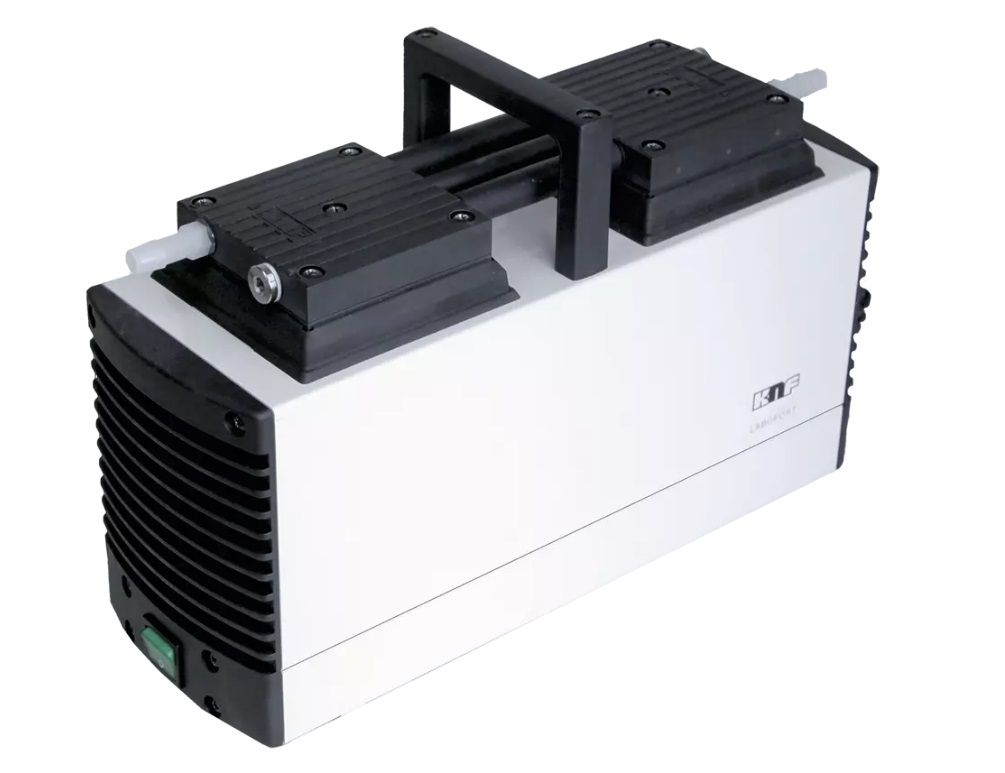

oil-free, double-head diaphragm vacuum pump. PPS pump head, PTFE coated diaphragm, moderately chemical resistant Air delivery: 16 l / min Final vacuum: 20 mbar Power: 100 W Weight: 3.95 kg External dimensions: 361 x 141 x 90 mm (L x W x H) Protection: IP 20

33.N820g

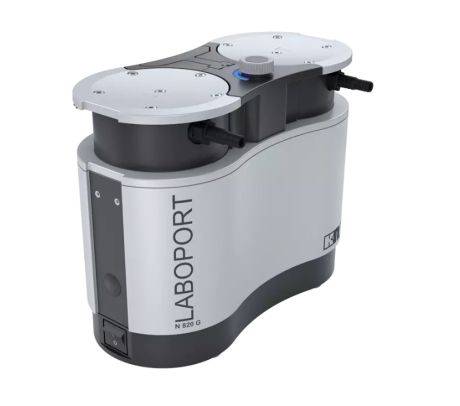

N 820 G

20 liters / minute

0.1 bar

6 mbar

125 x 259 x 220 mm

8.8 kg

Request a price

"100% oil-free ideal for extremely corrosive and/aggressive gases and vapors with integrated gas ballast valve 3-color status display for operation/stand-by/errors built-in rotation speed control Flow rate m. under pressure. 1.2 m3/h, 20 L/min Vacuum: 6 mbar abs. IP30 66 W 0.66 A 50/60Hz Pump head: TFM PTFE Diaphragm: PTFE coating Valves: FFPM Weight: 8.8 kg Dimensions W x H x D: 163 x 220 x 259 mm ATEX conformity: (Ex) II 2/-G IIB+H2 T3"

33.N93850KT18

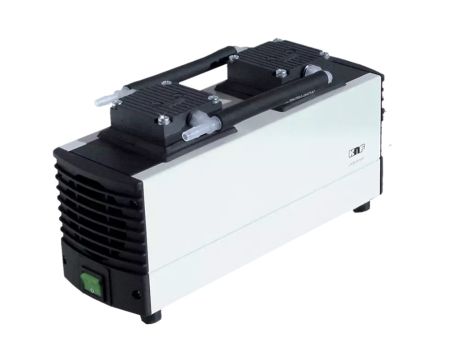

N 938.50 KT.18

30 liters / minute

0.5 bar

15 mbar

110 x 317 x 212 mm

6.8 kg

Request a price

oil-free, double-head diaphragm vacuum pump. PPS pump head, PTFE coated diaphragm, moderately chemical resistant. Pipe connection: ID10 Moderately chemical resistant Air delivery: 30 l / min Air delivery: 1.8m³ / h at atmospheric pressure Final vacuum: 15 mbar Power: 110 W Weight: 6.8 kg External dimensions: 317 x 212 x 110 mm (LxWxH) Protection: IP 20

33.N81612KT18

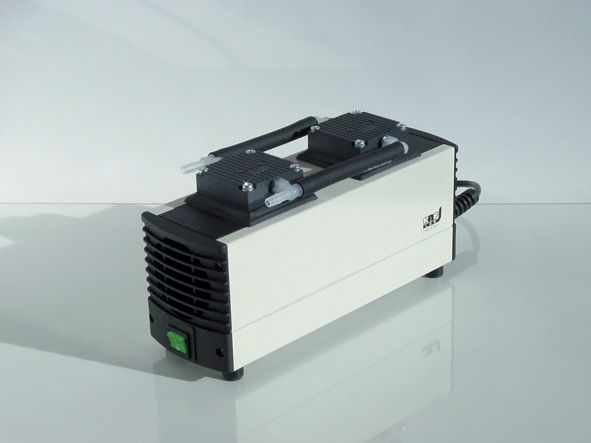

N 816.1.2 KT.18

30 liters / minute

0.5 bar

160 mbar

90 x 361 x 141 mm

4 kg

Request a price

"oil-free, two-head diaphragm vacuum pump. PPS pump head, PTFE-coated diaphragm Air delivery: 30 l/min Final vacuum: 160 mbar Power: 100 W Weight: 3.95 kg External dimensions: 361 x 141 x 102 mm (L x H x W) Protection: IP 20"

LABOPORT diaphragm vacuum pump and compressor, medium chemical resistance

33.N840G

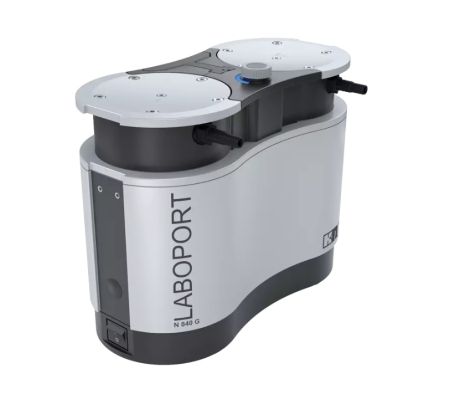

N 840 G

34 liters / minute

0.1 bar

6 mbar

139 x 289 x 240 mm

11.3 kg

Request a price

oil-free diaphragm vacuum pump. PTFE pump head, PTFE-covered diaphragm. ATEX compatible, internal design according to II 2/-G IIB+H2 T3 (ATEX only for the internal atmosphere) - Built-in gas ballast valve - Expandable: Isolators and/or capacitors can be used can be purchased individually at any time and is easily installed, allows users to build their own customized vacuum system. - 3-color status display in case of operation / standby / error - Integrated speed control Air delivery: 34 l/min (2.04 m3/hour) Final vacuum: 6 mbar Power: 100 W Weight: 11.3 kg External dimensions: 177 x 240 x 289 (L x H x W) Protection: IP 30
