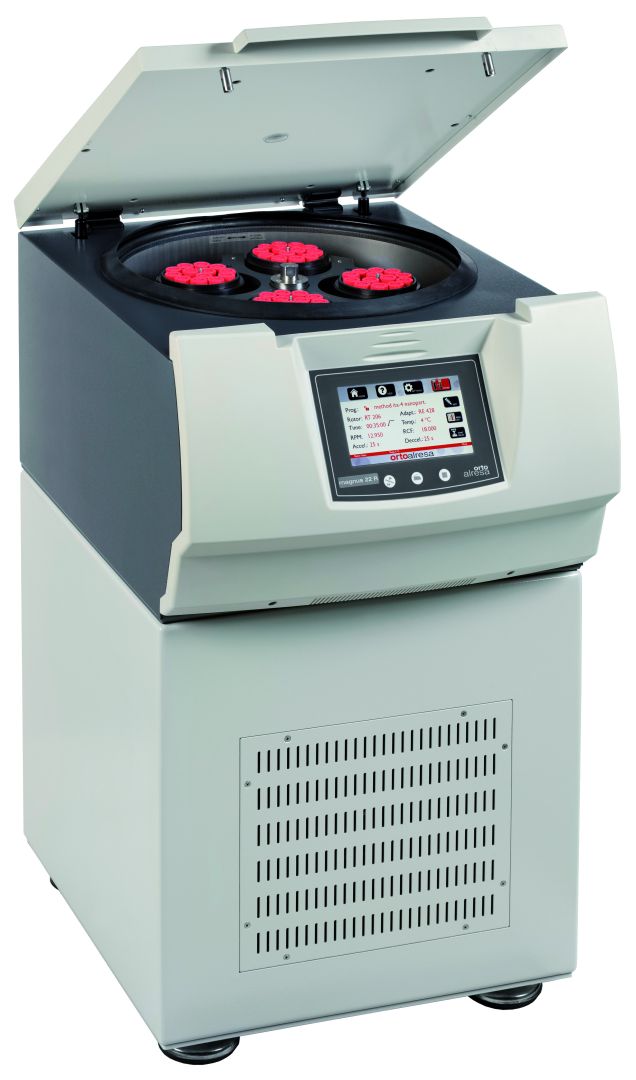

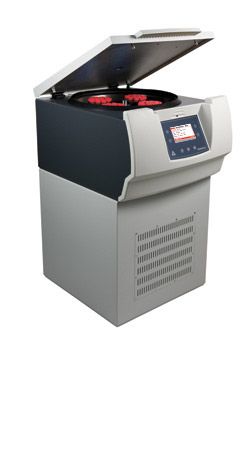

MAGNUS 22 and MAGNUS 22 R floor standing laboratory centrifuge
Ortoalresa
Request a price
Stable, robust floor standing centrifuges in normal and refrigated versions for large volumes and large numbers of samples. Their services are the same as the DIGTOR 22 and DIGTOR 22 R devices. The maximum speed of the centrifuge is determined by the selected rotor.
The device has a touch screen controller, which provides the possibility of password data protection in addition to easy settings and monitoring of parameters.
Capacity:
- 4 x 750 ml
- 4 blood bag
- 72 x 15 ml centrifuge tube
- 20 x 50 ml centrifuge tube
| Specifications: | MAGNUS 22 | MAGNUS 22 R |
|---|---|---|
| Consumption: | 1020 Watt | 1450 Watt |
| Timer: | 1 sec – 99 hour / continuous | 1 sec – 99 hour / continuous |
| Speed setting: | 100 rpm | 100 rpm |
| Max. RCF / max. RPM: |
21,948 xg / 14,300 rpm (rotor dependent)
|
21,948 xg / 14,300 rpm (rotor dependent) |
| Refrigating range: | - | -20 – +40 °C |
| Temperature setting: | - | 1 °C |
| Dimensions: | 530 x 640 x 870 mm | 530 x 640 x 870 mm |
| Weight: | 116 kg | 137 kg |
related products
Rotors and adapters for DIGTOR 22 and 22R

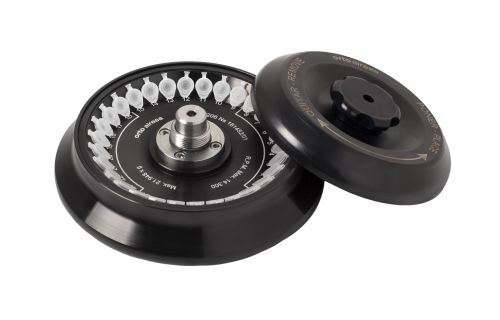

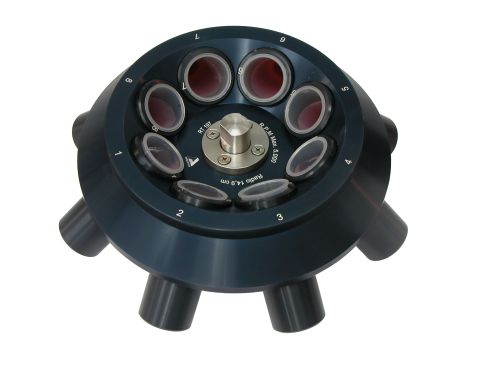

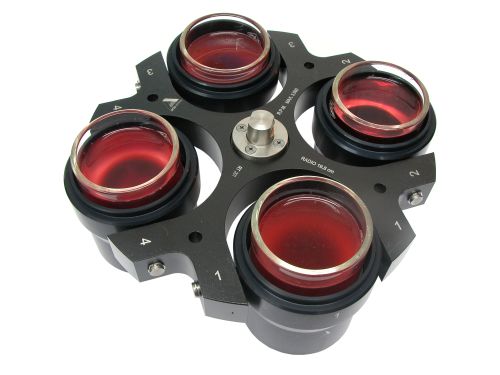

Angle or swing out rotor and tube adapters for Orto Alresa DIGTOR 22 and 22R type centrifuges. Capacity: 4 x 750 ml, 52 x 15 ml, microplate rotor, microtube rotor.
More informations
Request a price
Quotation
Rotors and adapters for MAGNUS 22 and 22 R

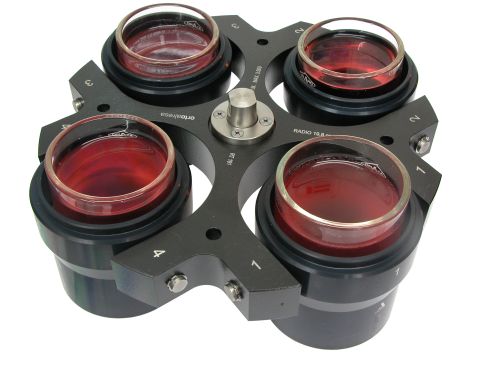

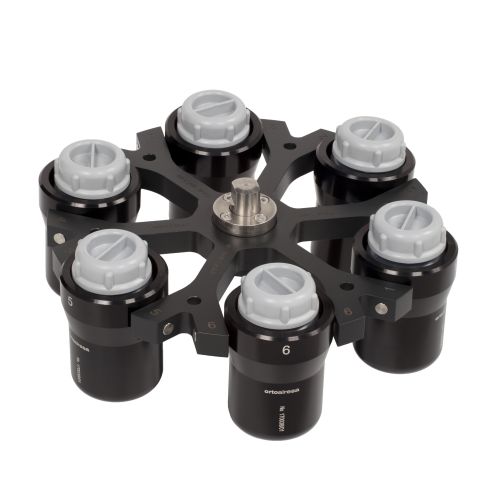

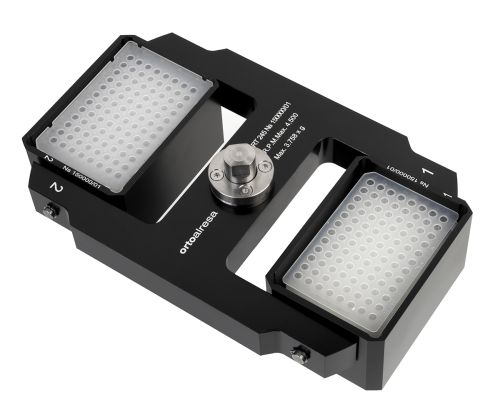

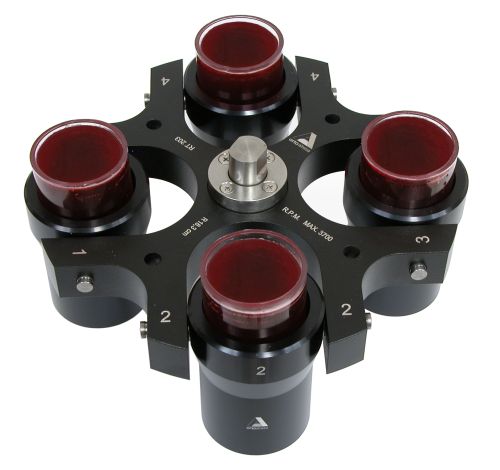

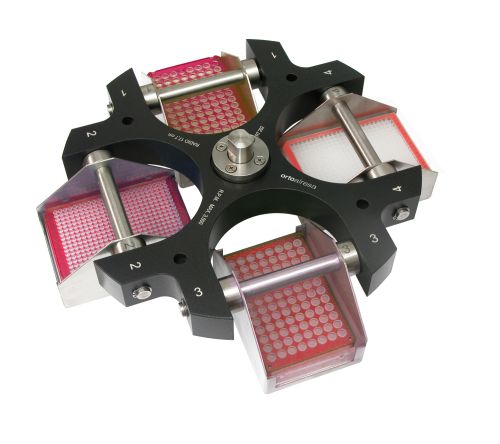

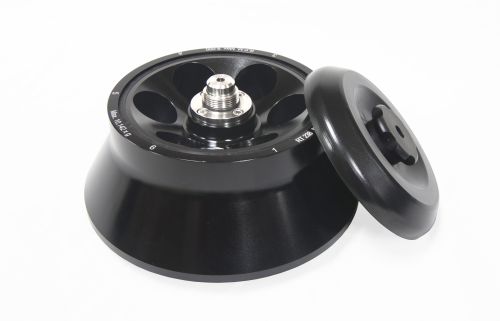

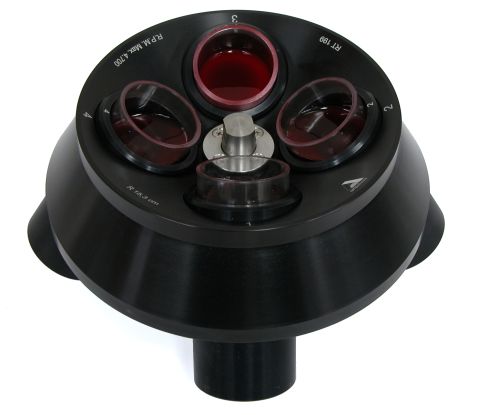

Swing out and angle rotor for up to 4 x 750 ml vessels, large volume 50, 30 and 15 ml centrifuge tubes, blood bags, microplates.
