Masuring cylinder with base and spout
Masuring cylinder with base and spout

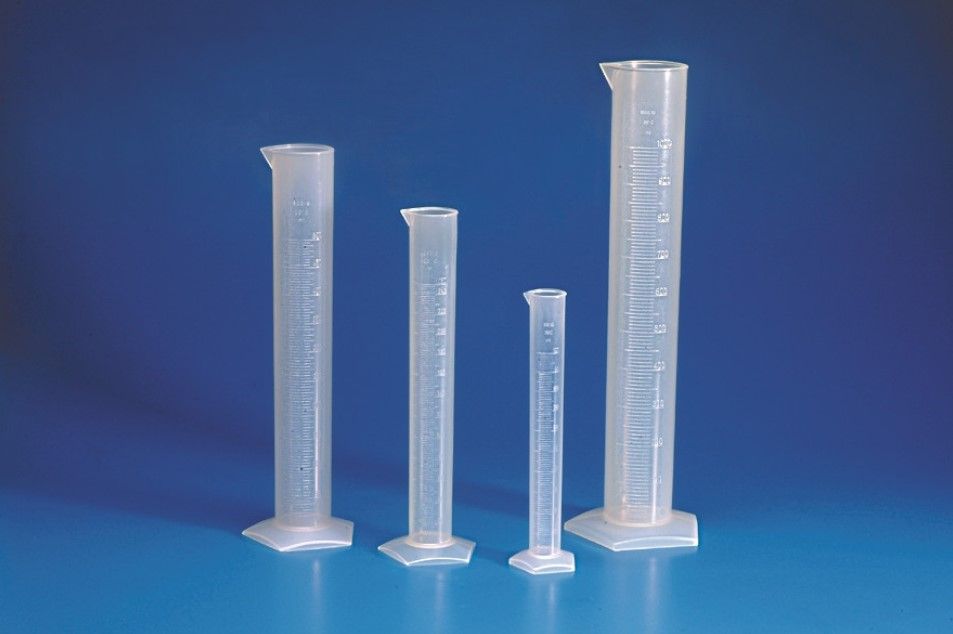

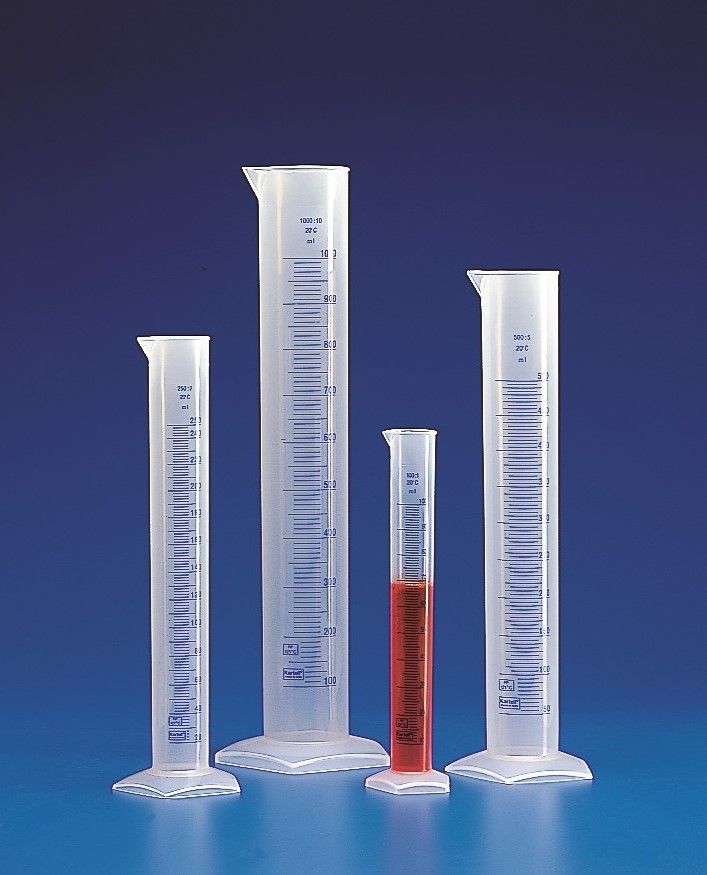

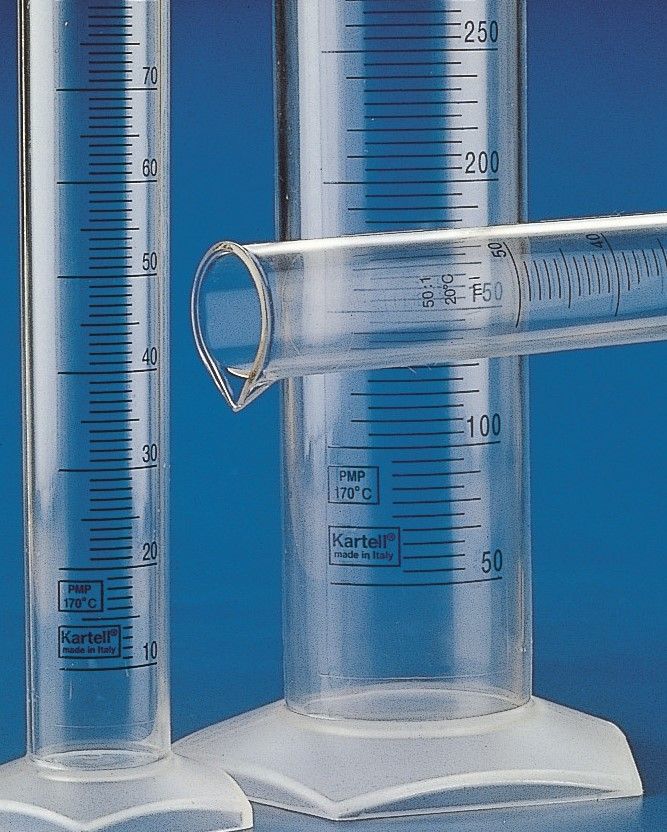

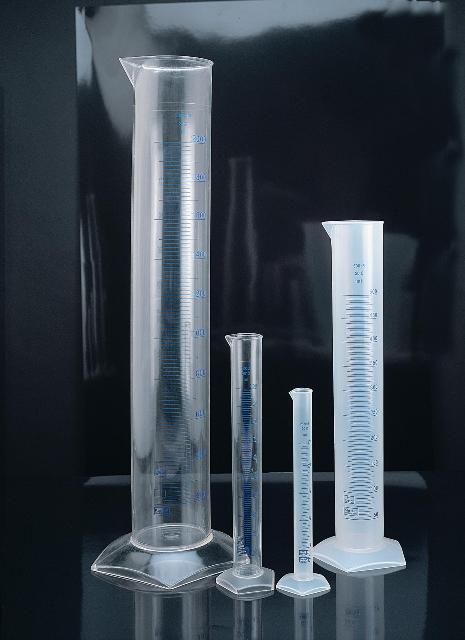

Measuring cylinder, with base and spout, made of plastic

Deltalab

Request a price


Material: polypropylene (PP) or polymethylpentene (TPX).

TPX is a glass-clear material, max. permissible liquid temperature: 170°C

Polypropylene (PP) is a transparent material that is highly resistant to chemicals.

Measuring cylinders of both materials can be autoclaved, we recommend using / autoclaving polypropylene up to a maximum of 121oC.

The PP measuring cylinder is produced in two versions:

  • Made of its own material - embossed - with a division
  • With a smooth surface and blue-painted markings

Can be used for food!

code
d
h
Volume
Type
Graduation colour
net price
amount
in stock
22.408010
13,5 mm
140 mm
10 ml
PP
embossed
Request a price
pc

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=13.5 mm, H=140 mm. Grad: 2 / 0.2 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations are moulded in for reproducibility. No wetting. Chemically cleaner than glass. Chemically non- absorbant. Excellent chemical resistance. Pentagon base for added stability.. Material: PP.

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=13.5 mm, H=140 mm. Grad: 2 / 0.2 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations are moulded in for reproducibility. No wetting. Chemically cleaner than glass. Chemically non- absorbant. Excellent chemical resistance. Pentagon base for added stability.. Material: PP.

22.192560
13 mm
140 mm
10 ml
PP
blue
Request a price
pc

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=13.5 mm, H=140 mm. Grad: 2 / 0.2 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations. Material: PP.

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=13.5 mm, H=140 mm. Grad: 2 / 0.2 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations. Material: PP.

22.192570
13,5 mm
139 mm
10 ml
TPX
blue
Request a price
pc

Autoclavable. Can be used for liquids up 170°C. Suitable for foodstuff. D=13.5 mm, H=139 mm. Grad: 2 / 0.2 ml. Conforms to ISO 6706 - 1981 (E). Crystal clear. No wetting. No meniscus. Permanent graduations. Material: PMP (TPX).

Autoclavable. Can be used for liquids up 170°C. Suitable for foodstuff. D=13.5 mm, H=139 mm. Grad: 2 / 0.2 ml. Conforms to ISO 6706 - 1981 (E). Crystal clear. No wetting. No meniscus. Permanent graduations. Material: PMP (TPX).

22.408025
19 mm
195 mm
25 ml
PP
embossed
Request a price
pc

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=18 mm, H=195 mm. Grad: 5 / 0.5 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations are moulded in for reproducibility. No wetting. Chemically cleaner than glass. Chemically non- absorbant. Excellent chemical resistance. Pentagon base for added stability.. Material: PP.

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=18 mm, H=195 mm. Grad: 5 / 0.5 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations are moulded in for reproducibility. No wetting. Chemically cleaner than glass. Chemically non- absorbant. Excellent chemical resistance. Pentagon base for added stability.. Material: PP.

22.192561
19 mm
195 mm
25 ml
PP
blue
Request a price
pc

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=18 mm, H=195 mm. Grad: 5 / 0.5 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations. Material: PP.

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=18 mm, H=195 mm. Grad: 5 / 0.5 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations. Material: PP.

22.192571
19 mm
195 mm
25 ml
TPX
blue
Request a price
pc

Autoclavable. Can be used for liquids up 170°C. Suitable for foodstuff. D=18.5 mm, H=195 mm. Grad: 5 / 0.5 ml. Conforms to ISO 6706 - 1981 (E). Crystal clear. No wetting. No meniscus. Permanent graduations. Material: PMP (TPX).

Autoclavable. Can be used for liquids up 170°C. Suitable for foodstuff. D=18.5 mm, H=195 mm. Grad: 5 / 0.5 ml. Conforms to ISO 6706 - 1981 (E). Crystal clear. No wetting. No meniscus. Permanent graduations. Material: PMP (TPX).

22.408050
26 mm
200 mm
50 ml
PP
embossed
Request a price
pc

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=25.5 mm, H=199 mm. Grad: 10 / 1 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations are moulded in for reproducibility. No wetting. Chemically cleaner than glass. Chemically non- absorbant. Excellent chemical resistance. Pentagon base for added stability.. Material: PP.

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=25.5 mm, H=199 mm. Grad: 10 / 1 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations are moulded in for reproducibility. No wetting. Chemically cleaner than glass. Chemically non- absorbant. Excellent chemical resistance. Pentagon base for added stability.. Material: PP.

22.192562
26 mm
200 mm
50 ml
PP
blue
Request a price
pc

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=25.5 mm, H=199 mm. Grad: 10 / 1 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations. Material: PP.

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=25.5 mm, H=199 mm. Grad: 10 / 1 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations. Material: PP.

22.192572
26 mm
200 mm
50 ml
TPX
blue
Request a price
pc

Autoclavable. Can be used for liquids up 170°C. Suitable for foodstuff. D=26 mm, H=199 mm. Grad: 10 / 1 ml. Conforms to ISO 6706 - 1981 (E). Crystal clear. No wetting. No meniscus. Permanent graduations. Material: PMP (TPX).

Autoclavable. Can be used for liquids up 170°C. Suitable for foodstuff. D=26 mm, H=199 mm. Grad: 10 / 1 ml. Conforms to ISO 6706 - 1981 (E). Crystal clear. No wetting. No meniscus. Permanent graduations. Material: PMP (TPX).

22.192563
31 mm
250 mm
100 ml
PP
blue
Request a price
pc

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=30.5 mm, H=249 mm. Grad: 10 / 1 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations. Material: PP.

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=30.5 mm, H=249 mm. Grad: 10 / 1 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations. Material: PP.

22.408100
31 mm
250 mm
100 ml
PP
embossed
Request a price
pc

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=30.5 mm, H=249 mm. Grad: 10 / 1 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations are moulded in for reproducibility. No wetting. Chemically cleaner than glass. Chemically non- absorbant. Excellent chemical resistance. Pentagon base for added stability.. Material: PP.

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=30.5 mm, H=249 mm. Grad: 10 / 1 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations are moulded in for reproducibility. No wetting. Chemically cleaner than glass. Chemically non- absorbant. Excellent chemical resistance. Pentagon base for added stability.. Material: PP.

22.192573
31 mm
250 mm
100 ml
TPX
blue
Request a price
pc

Autoclavable. Can be used for liquids up 170°C. Suitable for foodstuff. D=31 mm, H=249 mm. Grad: 10 / 1 ml. Conforms to ISO 6706 - 1981 (E). Crystal clear. No wetting. No meniscus. Permanent graduations. Material: PMP (TPX).

Autoclavable. Can be used for liquids up 170°C. Suitable for foodstuff. D=31 mm, H=249 mm. Grad: 10 / 1 ml. Conforms to ISO 6706 - 1981 (E). Crystal clear. No wetting. No meniscus. Permanent graduations. Material: PMP (TPX).

22.408250
41mm
315 mm
250 ml
PP
embossed
Request a price
pc

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=41.5 mm, H=315 mm. Grad: 20 / 2 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations are moulded in for reproducibility. No wetting. Chemically cleaner than glass. Chemically non- absorbant. Excellent chemical resistance. Pentagon base for added stability.. Material: PP.

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=41.5 mm, H=315 mm. Grad: 20 / 2 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations are moulded in for reproducibility. No wetting. Chemically cleaner than glass. Chemically non- absorbant. Excellent chemical resistance. Pentagon base for added stability.. Material: PP.

22.192564
41mm
315 mm
250 ml
PP
blue
Request a price
pc

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=41.5 mm, H=315 mm. Grad: 20 / 2 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations. Material: PP.

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=41.5 mm, H=315 mm. Grad: 20 / 2 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations. Material: PP.

22.192574
41mm
315 mm
250 ml
TPX
blue
Request a price
pc

Autoclavable. Can be used for liquids up 170°C. Suitable for foodstuff. D=41.5 mm, H=315 mm. Grad: 20 / 2 ml. Conforms to ISO 6706 - 1981 (E). Crystal clear. No wetting. No meniscus. Permanent graduations. Material: PMP (TPX).

Autoclavable. Can be used for liquids up 170°C. Suitable for foodstuff. D=41.5 mm, H=315 mm. Grad: 20 / 2 ml. Conforms to ISO 6706 - 1981 (E). Crystal clear. No wetting. No meniscus. Permanent graduations. Material: PMP (TPX).

22.408500
56 mm
360 mm
500 ml
PP
embossed
Request a price
pc

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=55 mm, H=361 mm. Grad: 50 / 5 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations are moulded in for reproducibility. No wetting. Chemically cleaner than glass. Chemically non- absorbant. Excellent chemical resistance. Pentagon base for added stability.. Material: PP.

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=55 mm, H=361 mm. Grad: 50 / 5 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations are moulded in for reproducibility. No wetting. Chemically cleaner than glass. Chemically non- absorbant. Excellent chemical resistance. Pentagon base for added stability.. Material: PP.

22.192565
56 mm
360 mm
500 ml
PP
blue
Request a price
pc

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=55 mm, H=361 mm. Grad: 50 / 0.5 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations. Material: PP.

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=55 mm, H=361 mm. Grad: 50 / 0.5 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations. Material: PP.

22.192575
56 mm
360 mm
500 ml
TPX
blue
Request a price
pc

Autoclavable. Can be used for liquids up 170°C. Suitable for foodstuff. D=55 mm, H=361 mm. Grad: 50 / 5 ml. Conforms to ISO 6706 - 1981 (E). Crystal clear. No wetting. No meniscus. Permanent graduations. Material: PMP (TPX).

Autoclavable. Can be used for liquids up 170°C. Suitable for foodstuff. D=55 mm, H=361 mm. Grad: 50 / 5 ml. Conforms to ISO 6706 - 1981 (E). Crystal clear. No wetting. No meniscus. Permanent graduations. Material: PMP (TPX).

22.481000
66 mm
440 mm
1000 ml
PP
embossed
Request a price
pc

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=66 mm, H=439 mm. Grad: 100 / 10 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations are moulded in for reproducibility. No wetting. Chemically cleaner than glass. Chemically non- absorbant. Excellent chemical resistance. Pentagon base for added stability.. Material: PP.

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=66 mm, H=439 mm. Grad: 100 / 10 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations are moulded in for reproducibility. No wetting. Chemically cleaner than glass. Chemically non- absorbant. Excellent chemical resistance. Pentagon base for added stability.. Material: PP.

22.192566
66 mm
440 mm
1000 ml
PP
blue
Request a price
pc

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=66 mm, H=439 mm. Grad: 100 / 10 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations. Material: PP.

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=66 mm, H=439 mm. Grad: 100 / 10 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations. Material: PP.

22.192576
66 mm
440 mm
1000 ml
TPX
blue
Request a price
pc

Autoclavable. Can be used for liquids up 170°C. Suitable for foodstuff. D=66 mm, H=438 mm. Grad: 100 / 10 ml. Conforms to ISO 6706 - 1981 (E). Crystal clear. No wetting. No meniscus. Permanent graduations. Material: PMP (TPX).

Autoclavable. Can be used for liquids up 170°C. Suitable for foodstuff. D=66 mm, H=438 mm. Grad: 100 / 10 ml. Conforms to ISO 6706 - 1981 (E). Crystal clear. No wetting. No meniscus. Permanent graduations. Material: PMP (TPX).

22.482000
80 mm
530 mm
2000 ml
PP
embossed
Request a price
pc

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=84mm, H=531 mm. Grad: 200 / 20 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations are moulded in for reproducibility. No wetting. Chemically cleaner than glass. Chemically non- absorbant. Excellent chemical resistance. Pentagon base for added stability.. Material: PP.

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=84mm, H=531 mm. Grad: 200 / 20 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations are moulded in for reproducibility. No wetting. Chemically cleaner than glass. Chemically non- absorbant. Excellent chemical resistance. Pentagon base for added stability.. Material: PP.

22.192567
80 mm
530 mm
2000 ml
PP
blue
Request a price
pc

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=84 mm, H=531 mm. Grad: 200 / 20 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations. Material: PP.

Autoclavable to 121°C for 20 min., continuous work at 100°C. Food contact suitability of the raw material, it has not been tested on the final product. D=84 mm, H=531 mm. Grad: 200 / 20 ml. Conforms to ISO 6706 - 1981 (E). Special PP giving very high translucency. Permanent graduations. Material: PP.

22.192577
80 mm
530 mm
2000 ml
TPX
blue
Request a price
pc

Autoclavable. Can be used for liquids up 170°C. Suitable for foodstuff. D=84 mm, H=531 mm. Grad: 200 / 20 ml. Conforms to ISO 6706 - 1981 (E). Crystal clear. No wetting. No meniscus. Permanent graduations. Material: PMP (TPX).

Autoclavable. Can be used for liquids up 170°C. Suitable for foodstuff. D=84 mm, H=531 mm. Grad: 200 / 20 ml. Conforms to ISO 6706 - 1981 (E). Crystal clear. No wetting. No meniscus. Permanent graduations. Material: PMP (TPX).
