Microscopic counting chambers with two cover slides

Laboreszköz katalógus Marketplace 0Cart

Request a price

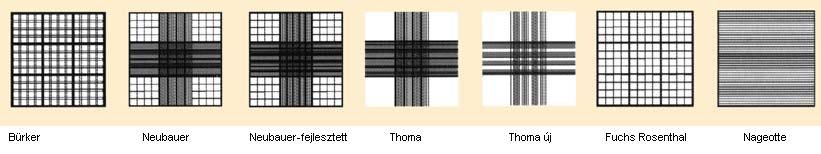

Microscopic counting chambers with two cover slides in several types:

- Bürker, Neubauer, Thoma, Fuchs-Rosenthal, Nageotte,

- normal (white background with dark lines) or inverse (dark background with bright lines),

- with or without clamp


code

Type

Name

Depth

net price

amount

in stock

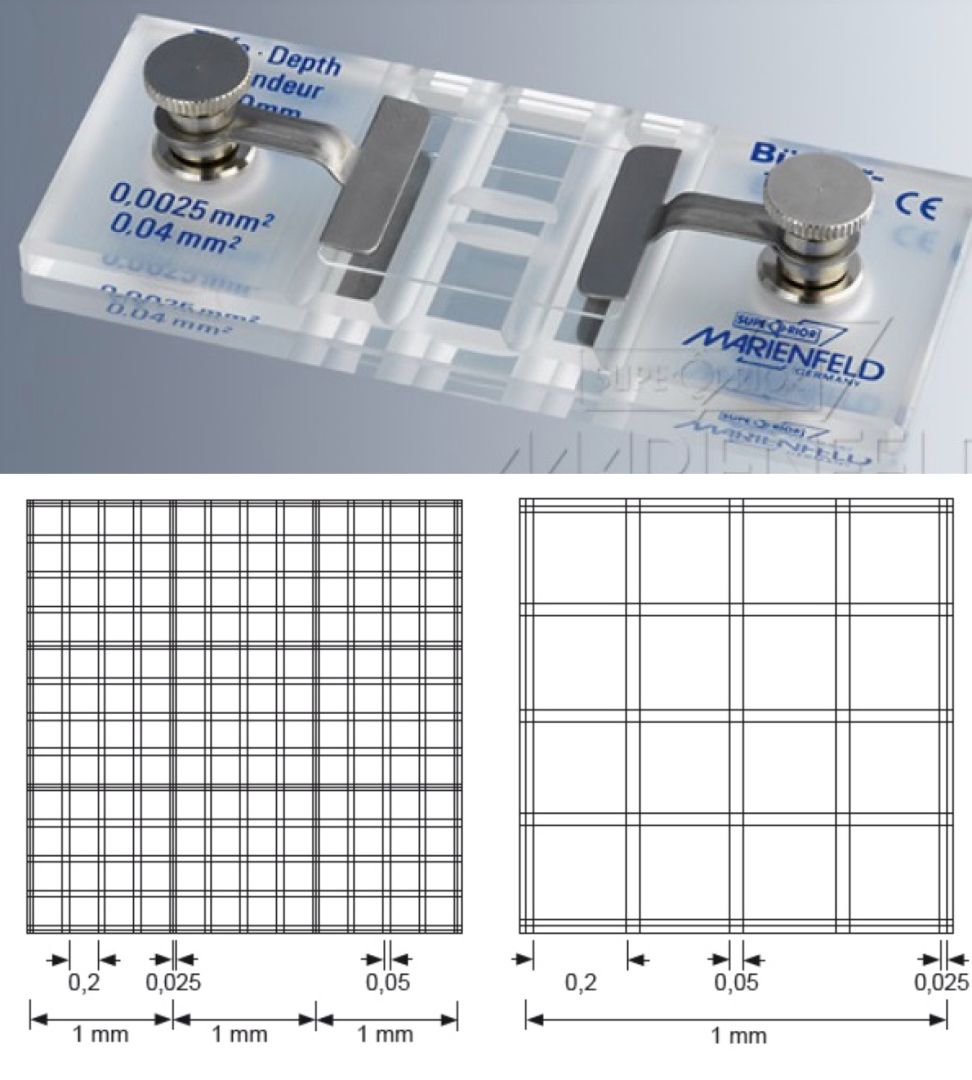

Chambers CE Bürker with clamps bright line

310.0640231

inverse

Bürker chamber with clamp

0,1 mm

Request a price

on a dark background with bright lines

310.0640210

normal

Bürker chamber

0,1 mm

Request a price

without clamp

Chambers CE Bürker w/out clamps bright line

310.0640230

inverse

Bürker chamber

0,1 mm

Request a price

on a dark background with bright lines, without clamp

Chambers CE Bürker with clamps dark line

310.0640211

normal

Bürker chamber with clamp

0,1 mm

Request a price

Depth of chamber: 0,1 mm

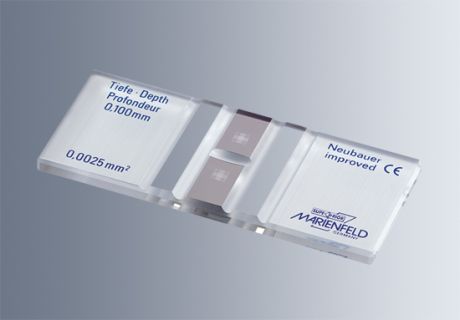

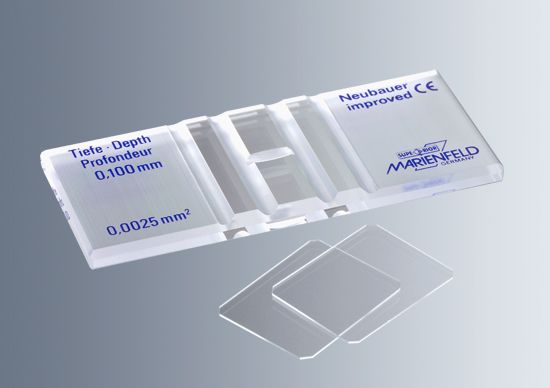

Chambers CE Neubauer with clamps dark line

310.0640111

normal

Neubauer chamber

0,1 mm

Request a price

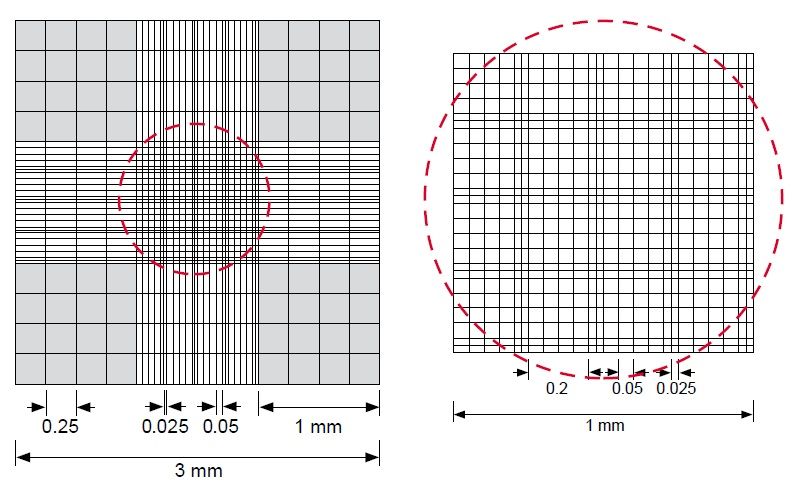

"With 2 cover plates. The coated area of ??the net is a total of 3 x 3 mm and consists of 9 large squares, each with a side of 1 mm. The central large square is further divided into groups of 4 x 4 squares measuring 0.2 X 0.2 mm. Triple lines separate groups of squares at a distance of 0.025 mm. Each square group contains 16 small squares with a side length of 0.05 mm."

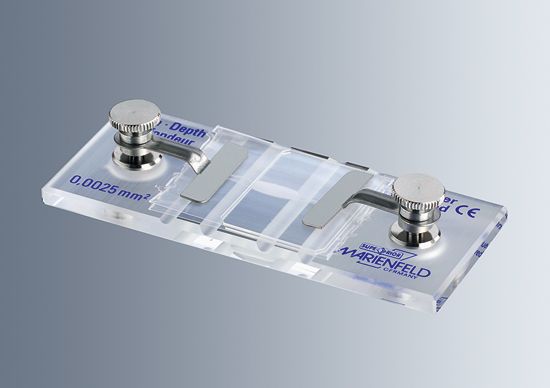

Chambers CE Neubauer-imp. with clamps dark line

310.0640011

normal

developed Neubauer chamber

0,1 mm

Request a price

310.0640711

normal

Thoma chamber

0,1 mm

Request a price

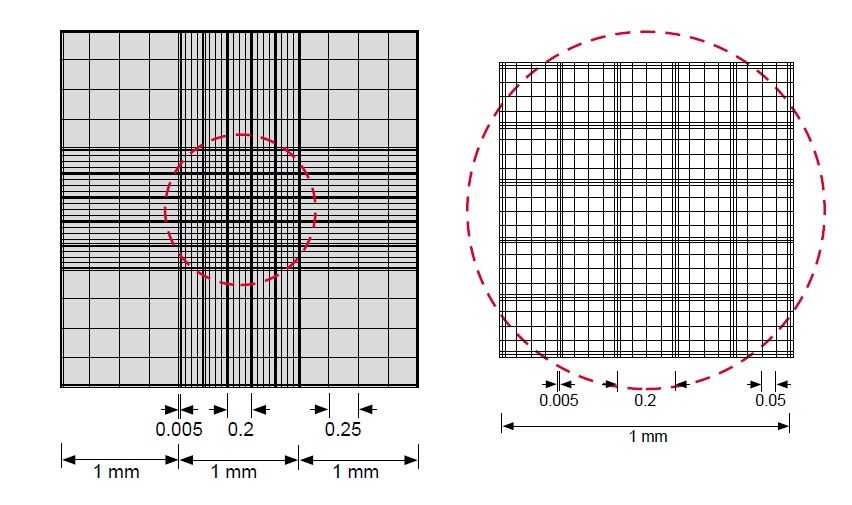

The depth of the Thoma chamber is 0.1 mm. Dark lines. The depth of the standard is 0.1 mm. The mesh is 1 x 1 mm?. These groups of squares are further divided into 16 small squares, each with an area of ??0.05 mm x 0.05 mm = 0.0025 mm?.

Chambers CE Fuchs-Rosenthal with clamps dark line

310.0640411

normal

Fuchs-Rosenthal chamber

0,2 mm

Request a price

"depth: 0.2 mm. The total area of ??the grid: 16 mm2 It has 16 1 mm2 cells, each of which is divided into 16 small cells. The size of the small cells: 0.25x0.25 mm. Large cells are separated by triple lines. The dividing lines are 0.01 mm apart. The central lines (right drawing) are 1 mm apart Thanks to the large counter grid and the depth of 0.2 mm, the maximum volume that can be measured is 3.2 ?l."

Chambers CE Fuchs-Rosenthal with clamps bright line

310.0610431

inverse

Fuchs-Rosenthal chamber

0,2 mm

Request a price

Depth of the chamber: 0,2 mm

310.0640510

normal

Nageotte chamber

0,5 mm

Request a price

The square area of 100 mm2 is divided into 40 rectangles each with an area of 0.25 x 10 = 2.5 mm2. This counting chamber is mainly used for counting cells in cerebro-spinal fluid or for counting nematodes.
