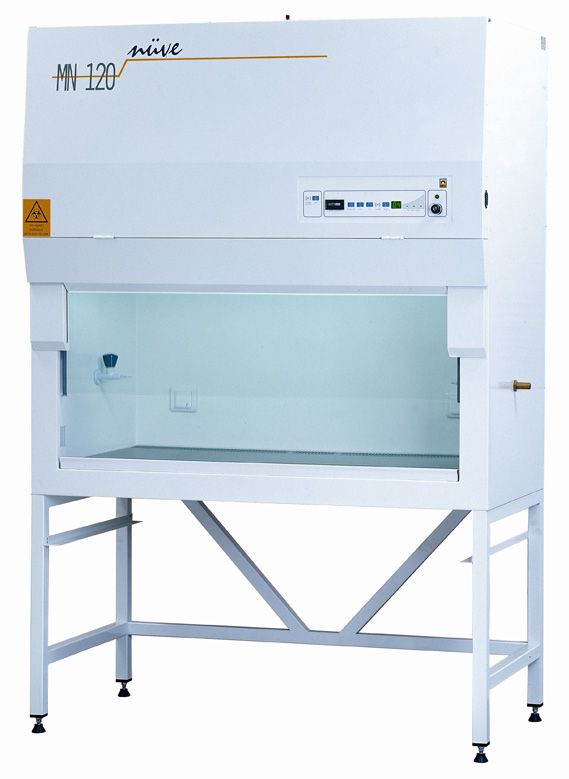

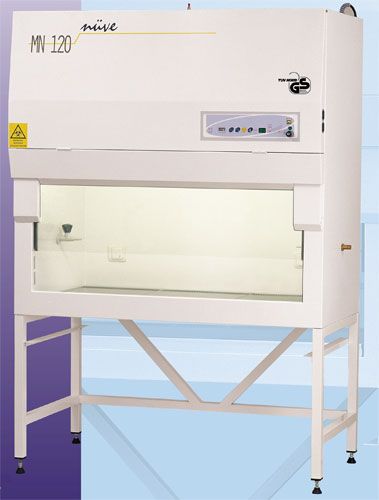

NÜVE Class II A2 cabinet

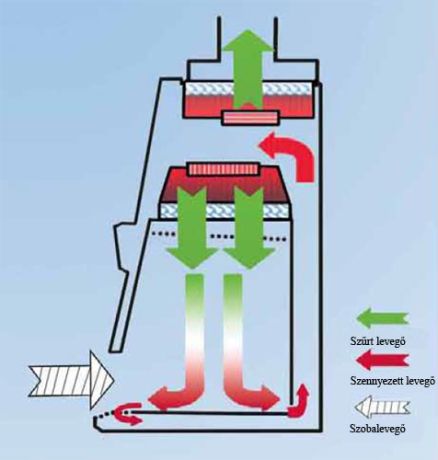

Class II A2 cabinet air flow

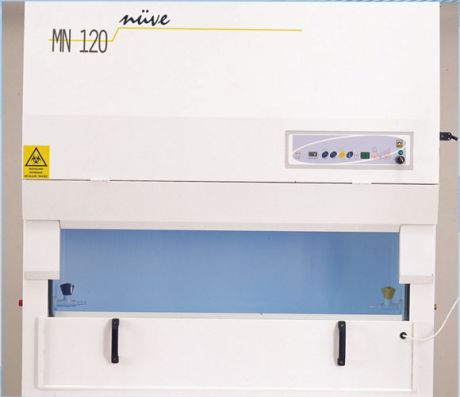

NÜVE cabinet with UV lamp enclosure

NÜVE biological safety cabinets (BSC)

Nüve

Request a price

NÜVE's Class II A2 biological safety cabinets are made in two sizes. About 70% of the room air drawn in through front panel is filtered through a HEPA filter and delivered to the work space with laminar flow, the remaining 30% of the air is returned to the laboratory airspace through a second HEPA filter.

The HEPA filter filters out 99.999% of particles larger than 0.3 microns from the air, so the air enters the workplace with H14 purity, protecting both the user and samples from contamination. The air coming out of the equipment leaves through another HEPA filter.

The microprocessor control takes care of increasing the performance of the fan, compensating for possible clogging of the HEPA filter. The closing of the front window is airtight, its opening and closing is facilitated by air springs. When the door is open, the cab sounds an alarm. The devices have a D.O.P. for air quality control. with stub.

Fluorescent lighting, operating hours counter and 2 pcs. a mains power socket is included.

Optional: UV lamp, gas tap with magnetic valve, and vacuum tap available on request.

NÜVE's BSC cabinets are certified according to the EN 12469:2000 standard by TUV NORD.


code

Weight

Inner size

External size

Air flow

Lighting

Noise level

net price

amount

in stock

35.MN090

190 kg

885 x 600 x 650 mm

1060 x 795 x 1400 mm

0,45 m/s

≥1000 Lux

≤60 dBA (A)

Request a price

"30% / 70% air blowing / recirculation. Epoxy-polyester painted, steel housing, stainless steel worktop. The air enters the workspace through a HEPA filter, protecting the user, the environment and the sample from contamination. The air coming out of the cabin is also removed through a HEPA filter. HEPA filters (2 pcs): filter out 99.995% of particles larger than 0.3 µm (H14). Liftable (forward) window, flow display. Microprocessor control with digital display of air flow rate. Automatic air speed compensation in case of filter clogging. Air speed: 0.45 m/s. Visual and acoustic alarm: power failure, control system error, open window, low and high air flow rate. clogged filters.. Built-in fluorescent lighting. ? 1,000 lux Built-in D.O.P stub. Built-in operating hours counter. 2 pcs. power connection Acid-resistant steel and removable 3-piece work table Key operated main switch. Stand, gas tap and UV lamp must be ordered separately! Internal working space: 885x600x650 mm. External dimensions (WxDxH): 1060x795x1400 mm Noise: <60dBA 230 V-50 Hz. 1860 W EN 12469 Certificate for MN 120 (TÜV GS Certified)"

35.MN120

220 kg

1190 x 600 x 650 mm

1360 x 795 x 1400 mm

0,45 m/s

≥1000 Lux

≤60 dBA (A)

Request a price

"30% / 70% air blowing / recirculation. Epoxy-polyester painted, steel housing, stainless steel worktop. The air enters the workspace through a HEPA filter, protecting the user, the environment and the sample from contamination. The air coming out of the cabin is also removed through a HEPA filter. HEPA filters (2 pcs): filter out 99.995% of particles larger than 0.3 µm (H14). Liftable (forward) window, flow display. Microprocessor control with digital display of air flow rate. Automatic air speed compensation in case of filter clogging. Air speed: 0.45 m/s. Visual and acoustic alarm: power failure, control system error, open window, low and high air flow rate. clogged filters. Built-in fluorescent lighting. ? 1,000 lux Built-in D.O.P socket and 2 electrical sockets. Supplied with key switch. Acid-resistant steel and removable 3-piece work table Stand, gas tap and UV lamp must be ordered separately! Internal workspace: 1,190x600x650 mm External dimensions: 1360x795x1400 mm (WxDxH) Supplied with EN14469 certificate. Noise: <60dBA 230 V-50 Hz. 1860 W"
