NÜVE laminar air flow cabinets

Laboreszköz katalógus Marketplace 0Cart

Nüve

Request a price

The laminar cabinet protect the sample from impurities in the laboratory air and from cross-contamination. The sample is separated from the environment with a sterile air stem. Not suitable to work with samples that are dangerous for the operator.

The air entering the cabinet from above goes to a pre-filter, which filters particles larger than 0.5 microns (G4 purity) from the air, thereby significantly increasing the service life of the main filter.

The sterile air with 99.999% purity is produced by a HEPA filter, which filters particles larger than 0.3 microns (H14 purity) from the air. In the cabinet, the sterile air flows from top to bottom – protecting the samples from external contamination – and then exits in all directions on the surface of the workplace.

The release of air in all directions has a good effect on the service life of the main filter, and the operator feels more comfortable with less air flowing towards him.

The speed of the air flow is 0.45 meters/second, which is constantly displayed on the digital display of the control panel. The microprocessor control takes care of increasing the performance of the fan, compensating for possible clogging of the main filter.

The front (openable) window of the cabinet is made of polycarbonate (PC), the work surface is made of 2 mm thick stainless steel plate. The frame of the device is made of steel treated with electrostatic powder coating. Two main power sockets (on the right and on the left) are standard accessories. The laminar cabinet with fluorescent lighting can also be installed on a suitable table or stand.

UV lamp, stand and pins can be ordered as options.


code

Weight

Inner size

External size

Air flow

Lighting

Noise level

net price

amount

in stock

35.LN090

165 kg

885 x 630 x 650 mm

1060 x 795 x 1400 mm

0,45 m/s

≥800 Lux

≤60 dBA (A)

Request a price

"Vertical airflow, only protects the product. Pre-filter (washable) to protect the main filter (G4). HEPA filter: filters out 99.999% of particles larger than 0.3 µm (H14 purity). Stainless steel (304) work surface. Liftable (forward) window, digital flow display. Microprocessor control, digital flow display. Air speed: 0.45 m/s. Half speed can be set. Visual and acoustic alarm in the event of an open window, clogged filter or low speed. Built-in fluorescent lighting and 2 230 V sockets on the back wall. Equipped with an operating hours counter. The cabin opening can be closed with the UV lamp block (option). Stand, gas tap and UV lamp must be ordered separately! Internal workspace: 890 x 630 x 620 mm (WxDxH) External dimensions: 1,050 x 790 x 1390 mm. (WxDxH) The picture is an illustration! The support frame must be ordered separately."

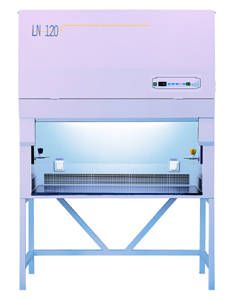

Nuve LN 120 vertical laminar air flow Cabinet

35.LN120

185 kg

1195 x 630 x 650 mm

1360 x 795 x 1400 mm

0,45 m/s

≥800 Lux

≤60 dBA (A)

Request a price

Designed for the applications with non-hazardous materials in particle free environment for complete product protection Totally product protection Microprocessor control system Digital display for airflow speed Elapsed hour counter Automatic speed compensation Partial recirculation of Hepa filtered air Prefilter for particles › 0.5 μm, 85% efficiency HEPA filter for particles › 0.3 μm, 99.999 efficiency 2 x Power outlet as standard Int. Dims ( W x D x H ) : 1195 x 630 x 620 mm Ext. Dims ( W x D x H ) : 1355 x 770 x 1295 mm 230 V-50 Hz.
