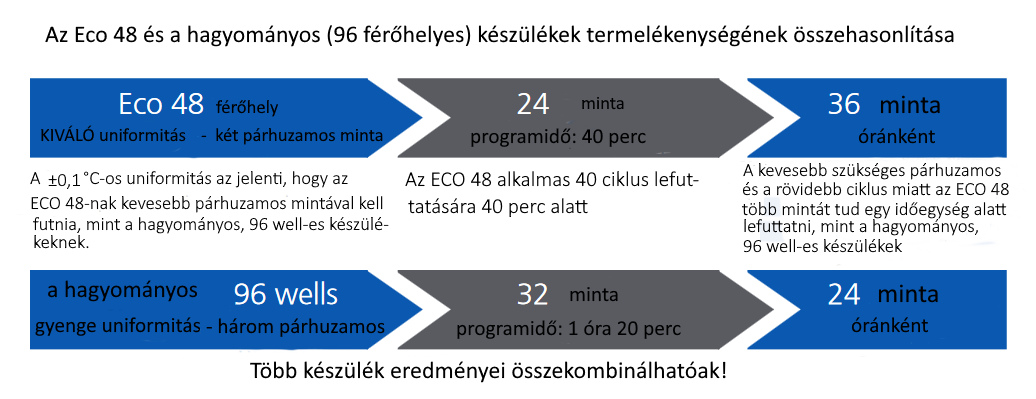

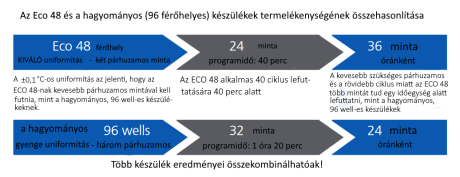

Eco 48 vs. 96-well devices

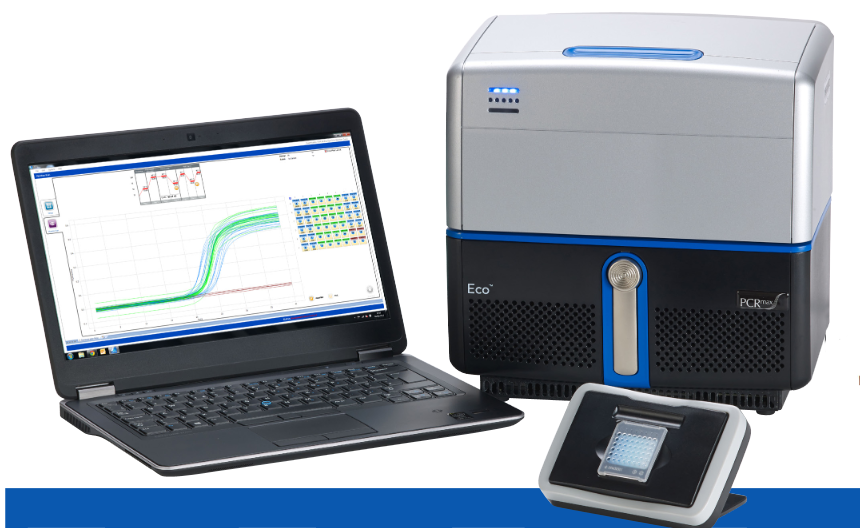

ECO 48 real-time PCR with computer

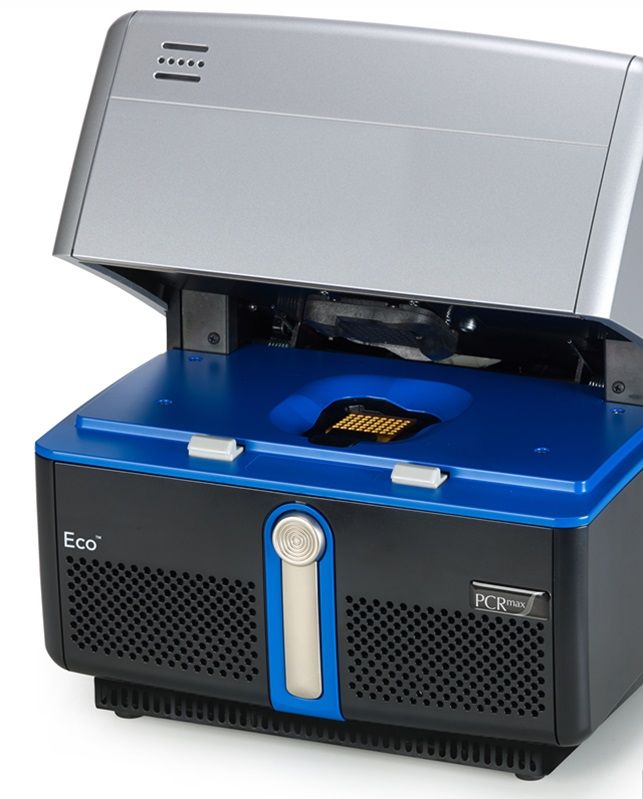

PCRmax Eco 48 real-time (Real-time) PCR device

Techne

Request a price

Speed, sensitivity, reliability, economy!

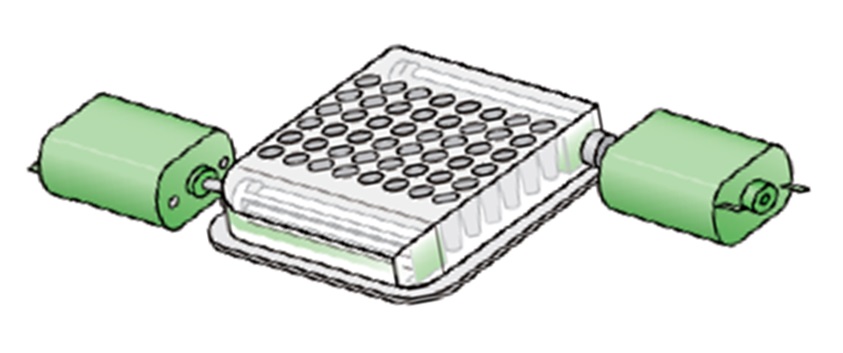

Thanks to its patented heating system, the ECO 48 real-time PCR device sold by Cole-Parmer has a unique speed and uniformity on the market. Fewer parallel measurements are required, and due to its speed, more measurements can be performed at a given time. See the "arrow" figure to the left! Uniformity allows us to evaluate the results of different plates or even different ECO 48s together. More cycles/day, less operating costs! More than 2,000 scientific articles serve as references (among others: Nature).

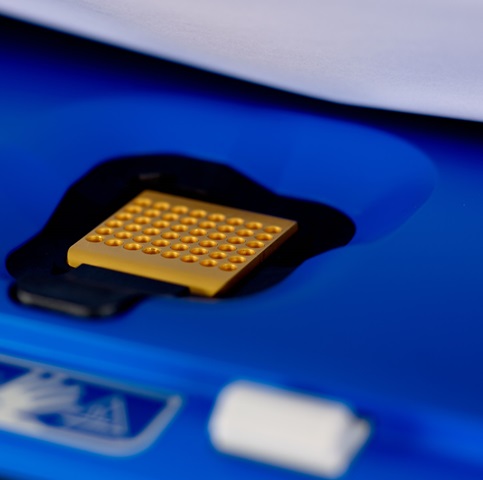

Block material: gold-plated silver (corrosion-free, excellent thermal conductivity). 40 cycles in 40 minutes! (with optimized protocol: 15 minutes), HRM analysis < 4 minutes. Temperature range: 35-100 °C; uniformity: ± 0.1 °C.

No need for empty "corners", all places are equivalent in terms of reaction! It is sufficient to run two parallels per sample.

Compared to devices available on the market, its speed is unbeatable! Average heating-cooling speed: 5.5 °C/sec, max. 25 °C/sec. Sensitivity: 1 copy. 48 sample slots with up to 5 µl sample volume: 384 plate geometry, 1/8 size, which allows the user to reduce the amount of expensive reagents (compared to conventional devices with 96 sample slots blocks) and a small amount of available templates an intense fluorescent signal can also be measured.

More details

PCR applications that satisfy all user needs:

Gene expression, Genotyping, HRM (High Resolution Melt)

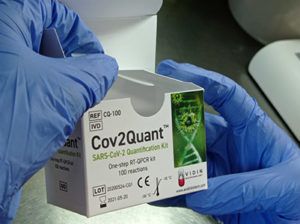

qPCR reagent kits (RNA, DNA, with or without mastermix) human pathogen, veterinary medicine and agriculture, food, water sample
Open system for PCR reagents, according to individual needs

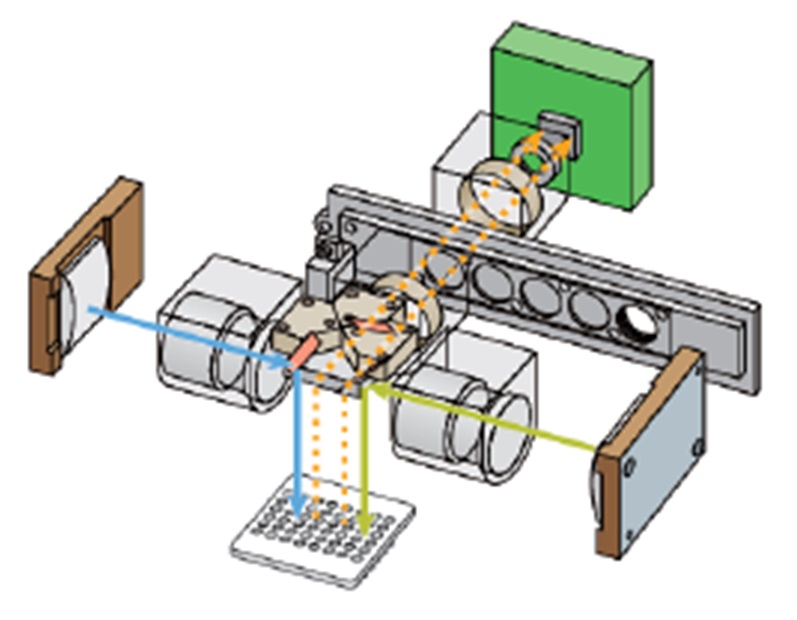

High-performance optical system, accurate and sensitive fluorescence detection for multiplex applications

Dual LED (452-486 nm and 542-582 nm) for all 48 sample locations, patented adaptive LED control method (neighboring samples do not distort the results, accurate, correct results, no need to dilute the sample).

4 emission filters: 505-545 nm, 562-596 nm, 604-644 nm, 665-705 nm.

Factory calibrated for: SYBR®, FAM™, HEX®, VIC®, ROX®, Cy®5 dyes, or a dye freely chosen by the user in the specified wavelength range.

CCD optics.

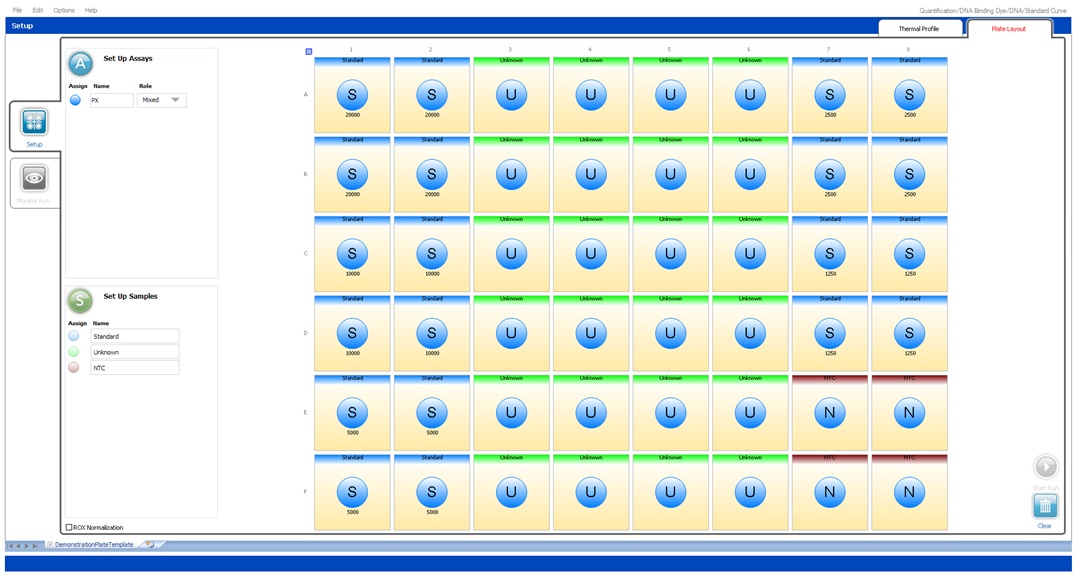

In the PCR block scheme displayed in the Control software, the data for each sample location can be easily entered:

• sample name, type (unknown, standard, negative-positive control, etc.), calibrated dye, and the measurement method created by the user.

All of this can be clearly distinguished by colors and markings.

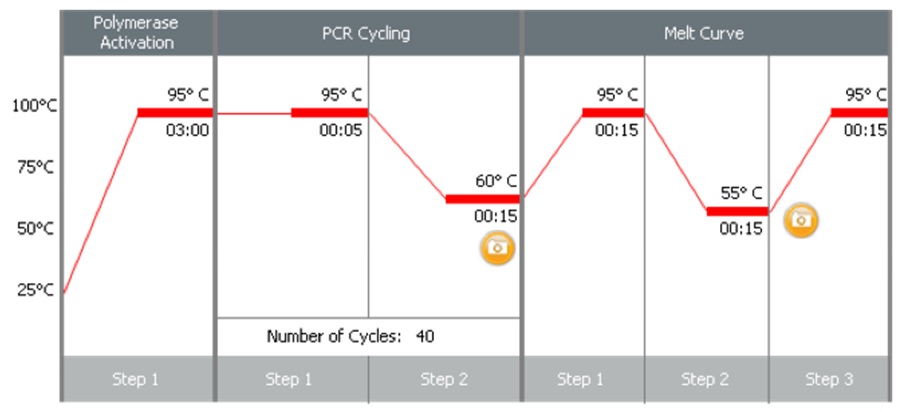

Also in the Control software, you can enter the data required to create the program quickly and easily:

• steps, temperatures, cycle times, etc.

Both the block diagram and the programs can be saved as templates, so they are easily available for later use.

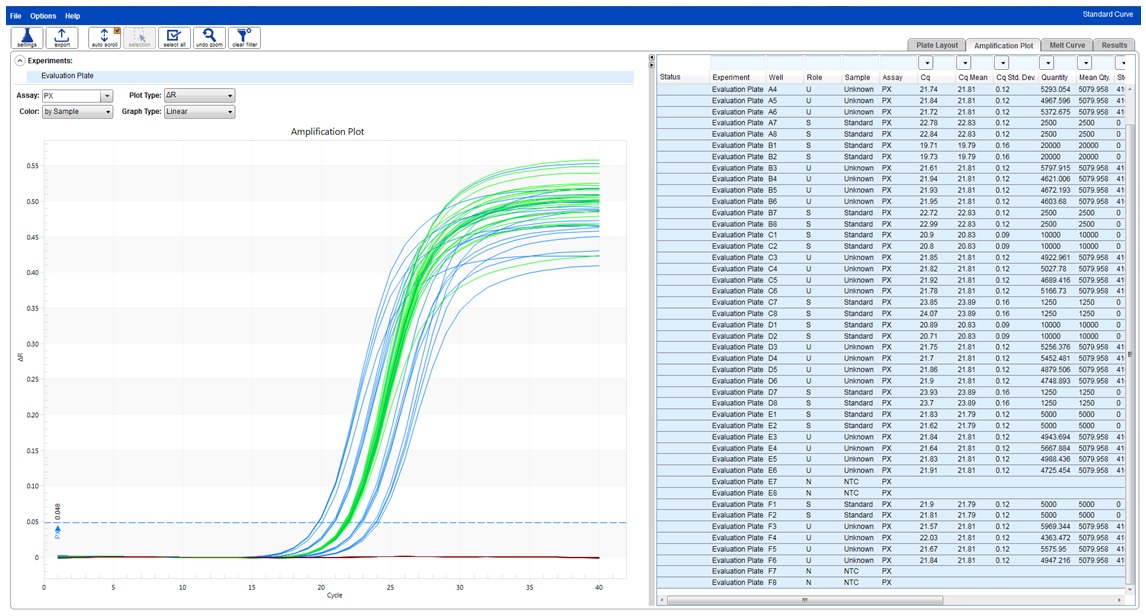

Data processing: user-friendly software, absolute and relative quantification,

Export: XLS and PPT, graphs: JPEG and BRN

Statistical evaluation, comparative analyses

Free to download.

Technical data of the PCRmax Eco 48 real-time (Real-time) PCR device:

Specifications:	PCRmax Eco 48 real-time (Real-time) PCR device
Number of samples:	48
Min. volume:	5 µl
Dimensions:	34.5 x 31 x 32 cm (W x D x H)
Weight:	13.6 kg
Power:	100–240 V, 50/60 Hz

The package includes

ECO 48 Real Time PCR device
ECO Control and ECO Study software (on USB drive)
ECO 48 sample loading unit: with transillumination option, adjustable tilt angle to facilitate pipetting, 2 plate adapters for centrifugation
Ethernet and network cables
50 ECO 48 plates
50 pcs ECO 48 sealing film
User guide, references


code

Type

net price

amount

in stock

38.ECORT48

PCRmax Eco 48 real-time (Real-time) PCR device

Request a price

1606/5000 - 48 sample wells, optimal volume of reaction mixture: 5-20 µl - Block material: gold plated silver - Temperature range: 35-100 ° C; uniformity: ± 0.1 ° C; average heating / cooling rate: 5.5 ° C / sec, max. 25 ° C / sec Reaction time: standard realtime PCR settings <40 min, HRM analysis <4 min (melting curve) - Sensitivity: 1 copy - Dynamic range:> 9 log linear range - Sensitive Optics: dual LED (452-486 nm and 542-582 nm) 4 emission filters: 505-545 nm, 562-596 nm, 604-644 nm, 665-705 nm, CCD camera Factory calibrated: SYBR Green, RCX, FAM, HEX, VIC, Cy5 no further calibration required for ECO 48 filter range (ROX optional) - Amplification monitoring on all 4 channels, simultaneous multiplex analysis (Melt curve with one filter) - PCR Applications: Gene Expression, Genotyping, HRM (High Resolution Melt) - Data processing: absolute quantification by standard curve, relative quantification by ΔΔCq, allele discrimination, HRM analysis Export to XLS and PPT, graphs: JPEG and BRNP - Size: (W x D x H): 34.5cm x 31cm x 32cm - Weight: 13.6 kg - Network connection: 100-240 V, 50/60 Hz The package includes: -ECO 48 Real Time PCR Instrument - ECO 48 and ECO 48 study software (USB drive-on): upgrade available online -ECO 48 sample loading unit: lighted, 2 plate adapters for centrifugation, variable inclination for easy pipetting - Ethernet and network cables - 50 db ECO 48 plate - 50 ECO 48 sealing foils - User guide, references non-IVD medical devices The computer is provided by the user!

38.ECOplate48

Eco 48 real-time PCR plate, 50 pcs/pack

Request a price

pack

48 sample places

38.ECOseal48

Eco 48 real-time PCR sealing film, 50 pcs/pack

Request a price

It has a speed and uniformity unique in the market. More cycles/day, lower operating costs!

45.UFL002B

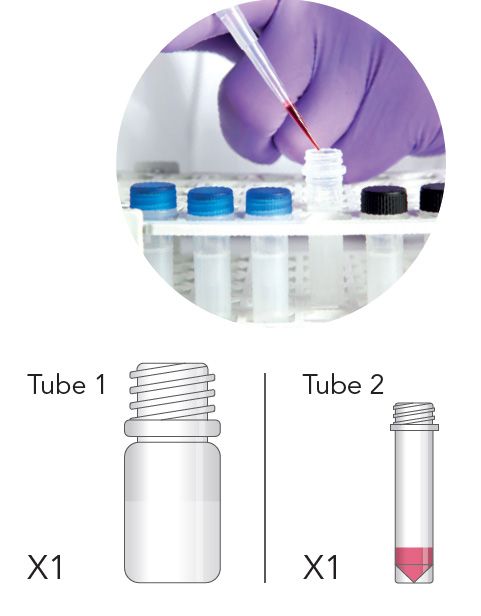

DNA detection kit, 50 pcs/box

Request a price

box

DNA exploration without sample preparation in 3 minutes. Simple 2-step digestion with no need for centrifugation or heat treatment. It can be used on blood, mucus, bacteria, plant, animal cells and tissues. Shelf-life at room temperature in unopened packaging is 18 months. Synthetic, non-infectious.
