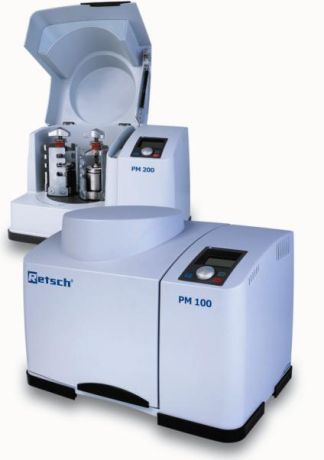

RETSCH PM 100 CM type centrifugal ball mill

Laboreszköz katalógus Marketplace 0Cart

RETSCH PM 100 C type centrifugal ball mill

RETSCH PM 100 CM type centrifugal ball mill

Retsch

Request a price

Very fine (micron size) and gentle grinding without loss, even for sensitive, dry and wet samples that require high cleanliness.

Grinding is based on the collision and rubbing of the balls deflected by the centrifugal force against the wall of the grinding vessel. The speed ratio of the sun wheel and the grinding bowl: 1:.-1

The material of the balls and grinding bowls must be chosen for the hardness and specific gravity of the sample. The size (diameter) of the grinding balls is determined by the volume of the grinding vessel and the particle size of the sample. In the case of a larger sample volume, one, or even two samples in the case of a smaller volume can be ground simultaneously.

New technology with maximum handling comfort. Displaying the most important data and setting parameters is extremely easy on the one-button user interface with a graphic LCD display: speed, grinding time, energy consumption, programmed grinding direction change, programmed start, remaining operating time, display of load factor, display of operating hours and maintenance intervals. 10 programs can be stored for regular grinding tasks.

The cover is made of strong plastic, the safety door is automatically closed. Grinding is accompanied by lower noise than usual thanks to good sound insulation.

The intensive ventilation of the chamber ensures the air exchange necessary for working with solvents.

Specifications:	PM 100 CM
Material feed size:	< 10 mm
Final fineness:	< 1 μm (< 0,1 μm colloidal grinding)
Sample volume max.:	1 x 220 ml or 2 x 20 ml
Speed:	100 – 650 rpm
Speed ratio:	1:-1
Dimensions:	630 x 415 x 468 mm
Weight:	80 kg
Grinding tools material:	agate, corundum, stainless steel, chrome steel, tungsten carbide, zirconium oxide, porcelain
Grinding jar volume:	50 ml, 100 ml, 250 ml, 500 ml
Grinding ball diameter:	10 mm, 20 mm, 30 mm, 40 mm


code

Name

net price

amount

in stock

PM 100 CM centrifugal ball mill without grinding bowl and balls.

27.205200001

RETSCH PM 100 CM type centrifugal ball mill

Request a price

For grinding and homogenizing soft, hard, medium hard, brittle samples with a particle size of less than 10 mm. Speed ??ratio: 1 : -1 Gentle and fast grinding! A grinding bowl can be inserted. Input particle size: < 10 mm. Output sample: <1 micrometer (depends on grinding time). Available sizes of grinding bowls: 12, 25, 50, 80, 125, 250 and 500 ml. Material selection of the grinding bowls: stainless steel, agate, corundum, zirconium dioxide, tungsten carbide. The grinding vessel can be filled up to a third of its volume with sample, the second third must be filled with balls. Voltage: 230-240 V/50 Hz. Manufacturer: RETSCH (Germany)
