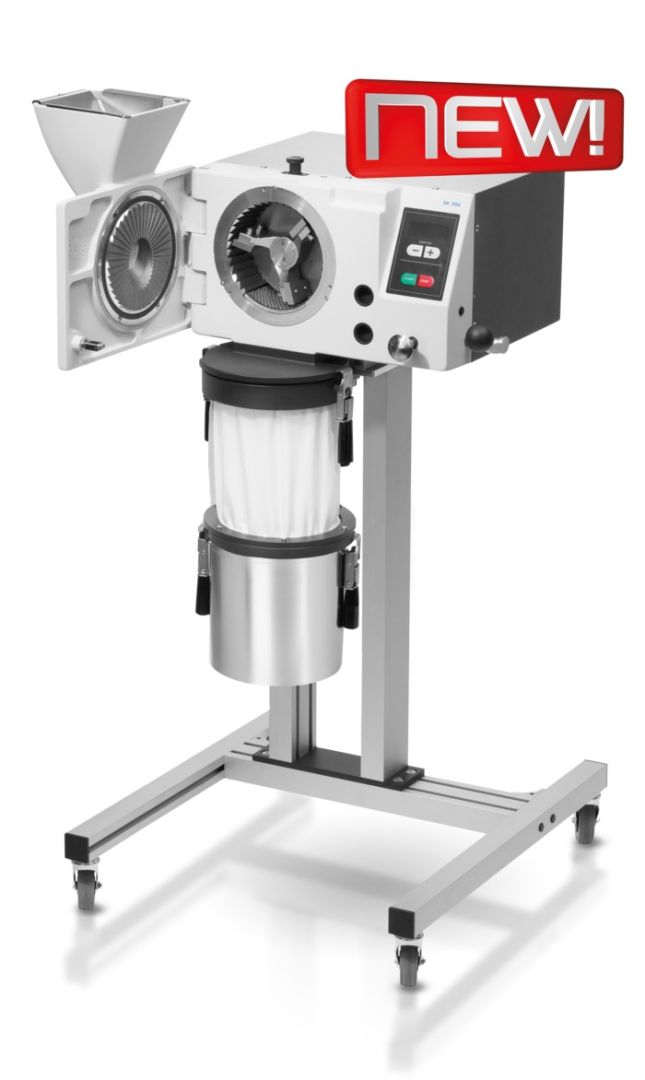

Retsch SK 300

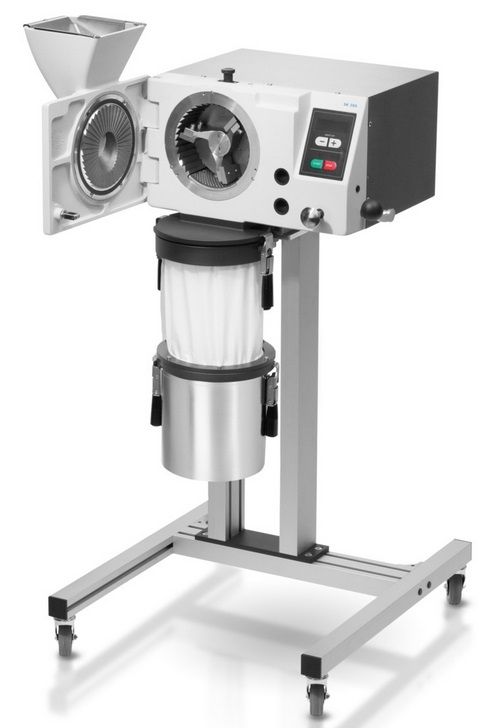

SK 300 in operation

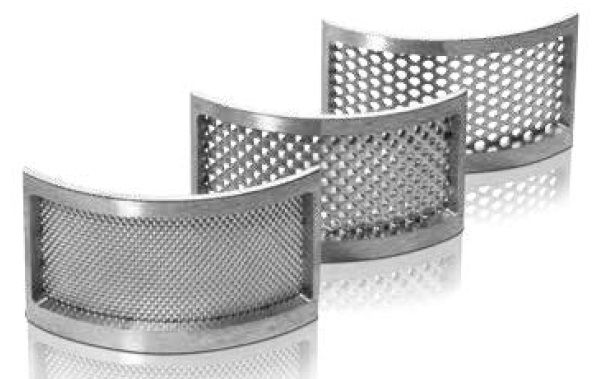

Bottom sieves for SK 300

RETSCH SK 300 type cross beater

Retsch

Request a price

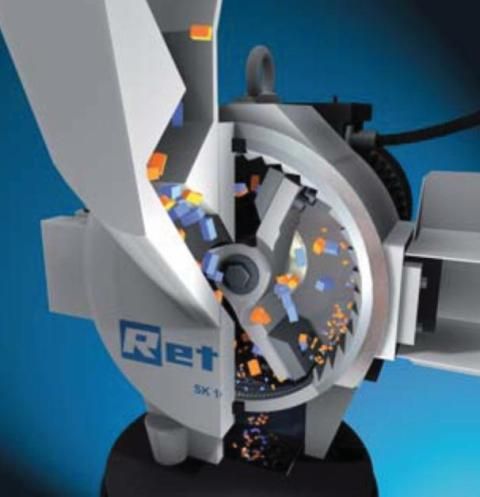

The SK 300 can be used for the preparation of medium-hard and hard materials such as: soil, slag, ores, minerals, ceramics, etc. The sample loaded into the dosing hopper is crushed by the beater knives rotating in a closed space by the crushing edges on the wall of the grinding chamber and the door, and then the sample passes through a bottom sieve into the collection container. The grinding device can be made of four types of materials - cast iron, chrome steel, stainless steel and special heavy metal-free steel - with a grinding chamber according to the use. The bottom sieves in the device are replaceable, so the particle size of the final product can vary over a wide range. The device can be operated mounted on a table or stand (option). Accessories: three-knife parallel impact rotor, filter stocking, 5 liter collection container. Bottom sieves must be ordered separately.

Technical data of the RETSCH SK 300 cross knife grinder:

Specifications:	SK 300
Material feed size:	< 25mm
Bottom sieve hole size:	0,12 – 10 mm
Collector capacity:	5 – 30 liter
Performance:	< 80 kg/óra
Speed:	2.000- 4.000 ford./perc
Drive power:	1.300 Watt
Power connection:	1x 200 - 240 V*
Méretek, állvány nélkül:	420 x 560 x 445 mm
Dimensions with frame:	560 x 1183 x 700 mm
Weight without frame:	32 kg
*: It drives a 3-phase motor with frequency converter.

More details


code

Name

net price

amount

in stock

SK 300, 200-240 V, 50/60 Hz, with cast iron grinding insert and rotor, hard steel hammer blades

27.207510001

SK 300 with cast iron rotor and chamber, hard steel hammer blades

Request a price

"Task: shredding Field of application: construction materials industry, geology / metallurgy, environmental protection / recycling, agriculture, glass / ceramic production, chemical / plastics industry Sample nature: semi-hard, brittle Shredding technique: impact Loadable sample size:*< 25 mm Output particle size:*< 100 µm Speed ??at 50(60) Hz: 2000 - 4000 min-1 (200 min-1 per step) Adjustable speed: yes Rotor peripheral speed: 15.5 m/s .. 31 m/s Rotor material: cast iron Material of grinding pads: cast iron Knife material: hardened steel sieve hole sizes: trapezoid 0.12 / 0.20 / 0.25 / 0.35 / 0.50 / 0.75 / 1.00 / 1.50 / 2.00 mm round 3.00 / 4.00 / 5.00 / 6.00 / 8.00 / 10.00 mm Dust extraction: optional cyclone unit Collection container volume: 5 l / optionally 30 l Drive: 3-phase electric motor with frequency converter Power consumption: 1.1 kW Mains voltage: 200 .. 240 V 50 / 60 Hz Mains connection: 1-phase Electrical protection method: IP 41 Power consumption: 1.5 kW Dimensions (closed): width x core x depth: 600 x 1200 x 700 mm (with stand) Weight, net: ~ 57 kg (with stand) Note: ~ 45 kg (without stand) Standards: CE *Output grain size: depends on the hole size of the bottom sieve used. 80% of the sample falling through the bottom sieve placed at the bottom of the grinder will be less than half the hole size of the sieve. Delivery package: device with cross-knife rotor, impact plates mounted in the chamber and on the door, 240 mm filter bag and collection tank (sieve insert and optional stand to be ordered separately)"

SK 300, 200-240 V, 50/60 Hz, hard steel / cast iron / hard steel

27.207510002

SK 300 with cast iron rotor, hard steel grinding set

Request a price

"Task: shredding Field of application: construction materials industry, geology / metallurgy, environmental protection / recycling, agriculture, glass / ceramic production, chemical / plastics industry Sample nature: semi-hard, brittle Shredding technique: impact Loadable sample size*< 25 mm Output particle size:*< 100 µm Speed ??at 50(60) Hz: 2000 - 4000 min-1 (200 min-1 per step) Adjustable speed: yes Rotor peripheral speed: 15.5 m/s .. 31 m/s Rotor material: cast iron Material of grinding inserts: hard steel Knife material: hardened steel sieve hole sizes: trapezoid 0.12 / 0.20 / 0.25 / 0.35 / 0.50 / 0.75 / 1.00 / 1.50 / 2.00 mm round 3.00 / 4.00 / 5.00 / 6.00 / 8.00 / 10.00 mm Dust extraction: optional cyclone unit Collection container volume: 5 l / optionally 30 l Drive: 3-phase electric motor with frequency converter Power consumption: 1.1 kW Mains voltage: 200 .. 240 V 50 / 60 Hz Mains connection: 1-phase Electrical protection method: IP 41 Power consumption: 1.5 kW Dimensions (closed): width x core x depth: 600 x 1200 x 700 mm (with stand) Weight, net: ~ 57 kg (with stand) Note: ~ 45 kg (without stand) Standards: CE *Output grain size: depends on the hole size of the bottom sieve used. 80% of the sample falling through the bottom sieve placed at the bottom of the grinder will be less than half the hole size of the sieve. Delivery package: device with cross-knife rotor, impact plates mounted in the chamber and on the door, 240 mm filter bag and collection tank (sieve insert and optional stand to be ordered separately)"

RETSCH SK 300 type cross knife grinder with stainless steel rotor and grinder set

27.207510003

SK 300 stainless steel rotor and grinder kit

Request a price

"Task: shredding Field of application: construction materials industry, geology / metallurgy, environmental protection / recycling, agriculture, glass / ceramic production, chemical / plastics industry Sample nature: semi-hard, brittle Shredding technique: impact Loadable sample size*< 25 mm Output particle size:*< 100 µm Speed ??at 50(60) Hz: 2000 - 4000 min-1 (200 min-1 per step) Adjustable speed: yes Rotor peripheral speed: 15.5 m/s .. 31 m/s Rotor material: stainless steel Material of grinding inserts: stainless steel Knife material: stainless steel sieve hole sizes: trapezoid 0.12 / 0.20 / 0.25 / 0.35 / 0.50 / 0.75 / 1.00 / 1.50 / 2.00 mm round 3.00 / 4.00 / 5.00 / 6.00 / 8.00 / 10.00 mm Dust extraction: optional cyclone unit Collection container volume: 5 l / optionally 30 l Drive: 3-phase electric motor with frequency converter Power consumption: 1.1 kW Mains voltage: 200 .. 240 V 50 / 60 Hz Mains connection: 1-phase Electrical protection method: IP 41 Power consumption: 1.5 kW Dimensions (closed): width x core x depth: 600 x 1200 x 700 mm (with stand) Weight, net: ~ 57 kg (with stand) Note: ~ 45 kg (without stand) Standards: CE *Output grain size: depends on the hole size of the bottom sieve used. 80% of the sample falling through the bottom sieve placed at the bottom of the grinder will be less than half the hole size of the sieve. Delivery package: device with cross-knife rotor, impact plates mounted in the chamber and on the door, 240 mm filter bag and collection tank (sieve insert and optional stand to be ordered separately)"

SK 300, 200-240 V, 50/60 Hz, cast iron / cast iron / steel 1.1740 for heavy metal-free grinding

27.207510004

SK 300 cast iron rotor and grinding pads, 1.1740 carbon steel hammer blades

Request a price

"Task: shredding Field of application: construction materials industry, geology / metallurgy, environmental protection / recycling, agriculture, glass / ceramic production, chemical / plastics industry Sample nature: semi-hard, brittle Shredding technique: impact Loadable sample size*< 25 mm Output particle size:*< 100 µm Speed ??at 50(60) Hz: 2000 - 4000 min-1 (200 min-1 per step) Adjustable speed: yes Rotor peripheral speed: 15.5 m/s .. 31 m/s Rotor material: cast iron Material of grinding pads: cast iron Knife material: stell 1.1740 type steel, sieve hole sizes: trapezoid 0.12 / 0.20 / 0.25 / 0.35 / 0.50 / 0.75 / 1.00 / 1.50 / 2.00 mm round 3.00 / 4.00 / 5.00 / 6.00 / 8.00 / 10.00 mm Dust extraction: optional cyclone unit Collection container volume: 5 l / optionally 26 l Drive: 3-phase electric motor with frequency converter Engine power: 1.1 kW Mains voltage: 200 .. 240 V 50 / 60 Hz Mains connection: 1-phase Electrical protection method: IP 41 Power consumption: 1.5 kW Dimensions (closed): width x core x depth: 600 x 1200 x 700 mm (with stand) Weight, net: ~ 57 kg (with stand) Note: ~ 45 kg (without stand) Standards: CE *Output grain size: depends on the hole size of the bottom sieve used. 80% of the sample falling through the bottom sieve placed at the bottom of the grinder will be less than half the hole size of the sieve. Delivery package: device with cross-knife rotor, impact plates mounted in the chamber and on the door, 240 mm filter bag and collection tank (sieve insert and optional stand to be ordered separately)"
