SAFE® Tube Presenter

LVL Technologies

Request a price

These devices help to eliminate errors when removing the correct tube from the rack or cryotube box. Removing tubes that are tightly packed together has a significant error factor, even with great care, especially during long-term work.

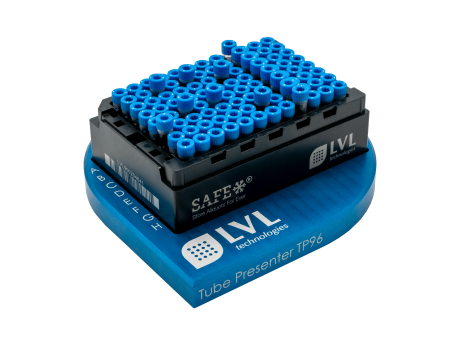

The Tube Presenter helps to minimize the chances of removing the wrong tube. The Tube Presenter itself is an alphanumeric numbered sheet, which each position is marked separately. The position of the tube to be removed must be selected with one of the markers, and then after placing the rack on it, the marked tube stands out from the others.

This is also available in an automated version for SBS 96 racks. Based on the selection list imported into the device, the required tubes are lifted after placing the rack on it. The integrated rack code reader enables high data accuracy and good traceability. The control software allows for simple and precise management of selection lists and export files.

More details


code

Name

net price

amount

in stock

625.TP48

Tube Presenter for SBS 48 racks

Request a price

"A marker on the board allows you to select which sample to remove from the rack. As soon as the rack is placed on the board, the marked tube stands out from the rest. Helps avoid errors due to removing the wrong sample. With 4 free-standing markers and 2 strings consisting of 6 markers. Compatible with the following 2D tube racks: - XLX500 - XLX2000 - XLX4000"

625.TP96

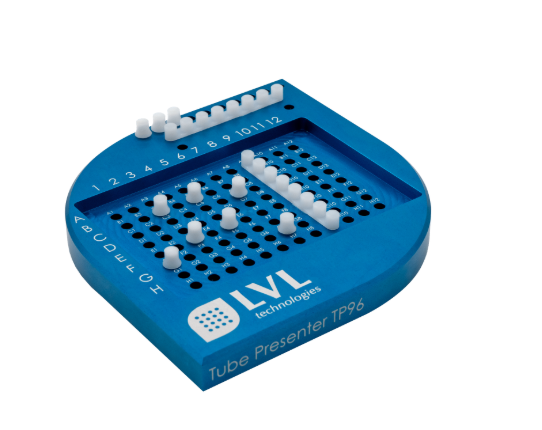

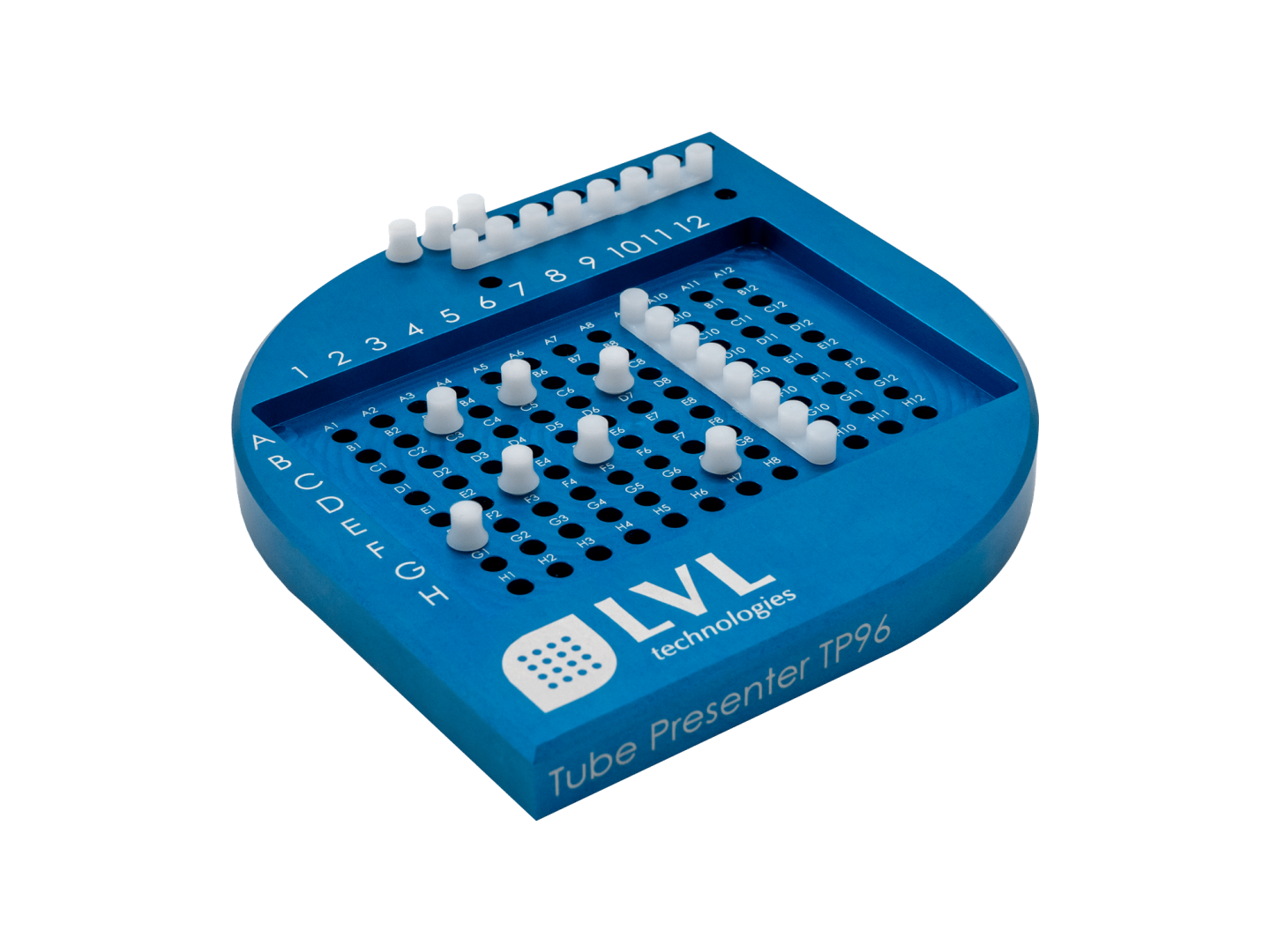

Tube Presenter for SBS 96 racks

Request a price

"A marker on the board allows you to select which sample will be removed from the rack. As soon as the rack is placed on the board, the marked tube stands out from the rest. Helps avoid errors due to removing the wrong sample. With 10 free-standing markers and 2 strings consisting of 8 markers. Compatible with the following 2D tube racks: - SX300 - MX500 - LX1000 - MI500 - LI1000"

625.TP81

Tube Presenter for 81 position Cryo box

Request a price

"A marker on the board allows you to select which sample will be removed from the rack. As soon as the rack is placed on the board, the marked tube stands out from the others. Helps avoid errors due to removing the wrong sample. With 10 free-standing markers. Compatible with the 81-position cryotube rack."

SAFE® Access Tube Presenter for CRYO 100

625.TP100

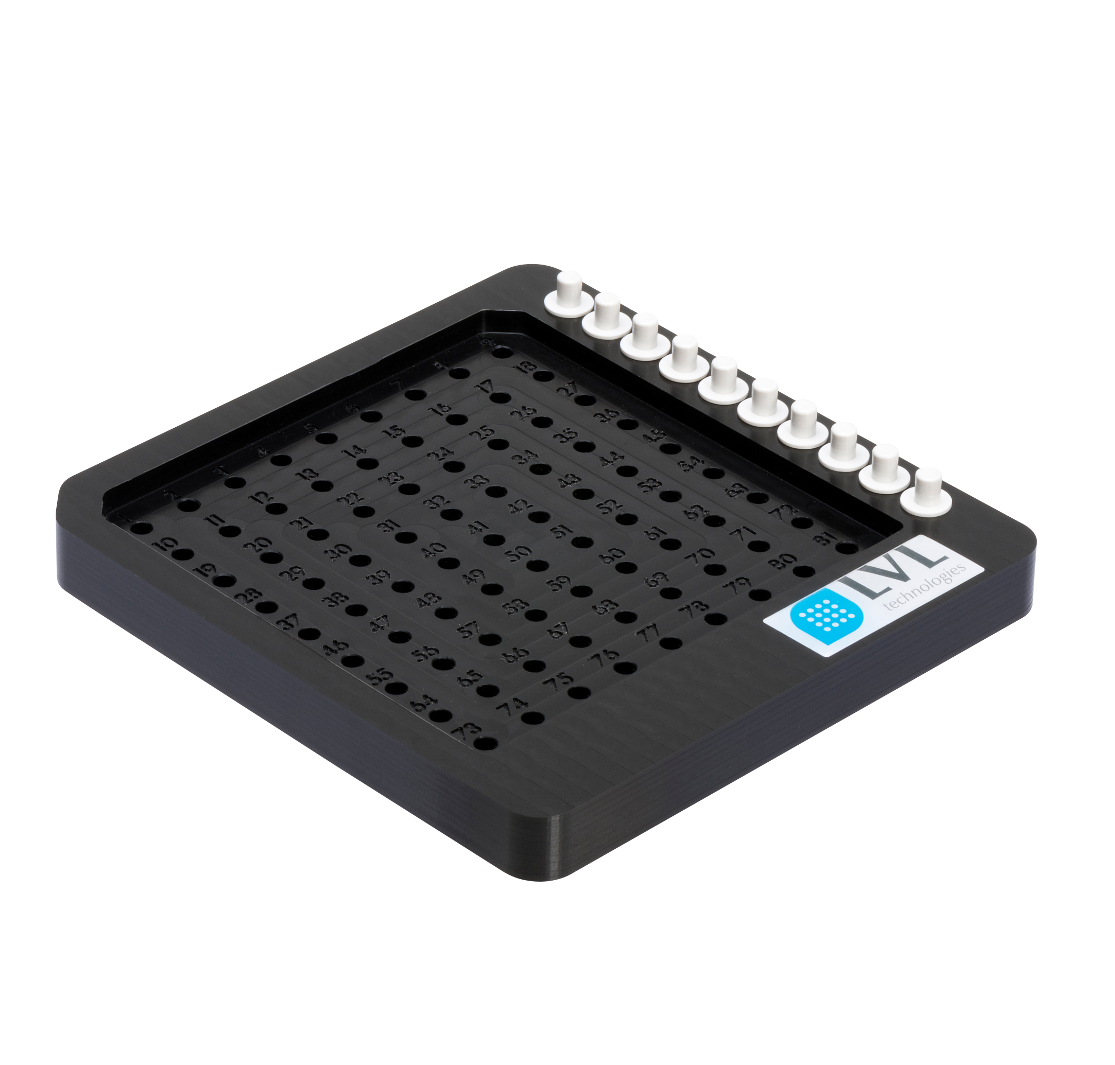

Tube Presenter for 100 position Cryo box

Request a price

"A marker on the board allows you to select which sample will be removed from the rack. As soon as the rack is placed on the board, the marked tube stands out from the others. Helps avoid errors due to removing the wrong samples. With 10 free-standing markers. Compatible with the 100-position cryotube rack."

625.ATP96

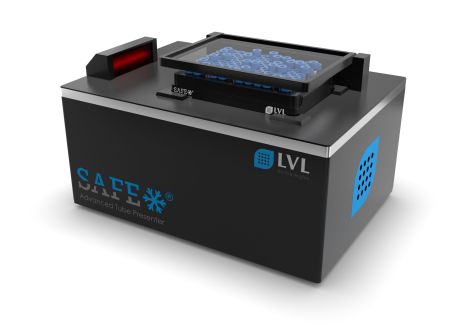

Automated Tube Presenter for SBS 96 racks

Request a price

"Provides seamless and secure sample access for reliable and efficient workflows. Compatible with 96-place 2D racks for versatile laboratory applications. Integrated rack barcode scanner for higher data accuracy and improved traceability. 96 individually controlled actuators for precise and safe tube selection. Application / software: - Control software for easy and accurate settings. - Automatic barcode scanning and rack recognition when closing the safety lid for safe workflows. - Simultaneous selection of up to 16 tubes for increased throughput while meeting safety regulations. - Tracking of retrieved tubes in combination with 96-rack scanner for complete inventory control. - Import/export function for lists and sample tracking for seamless data management and safe handling. Dimensions (H x W x D): 280 x 200 x 200 mm Weight: approx. 8 kg 110-230 VAC, 120W"
