Safety cabinets for storing lithium-ion batteries, 14FLI series

Ecosafe

Request a price


These cabinets offer a cost-effective solution for storing Li-ion batteries according to the following standards:

  • Complies with risk prevention and safety recommendations:
  • Standardized pictograms according to ISO 3864-1 and ISO 7010 and European Directive 92/58/EEC.

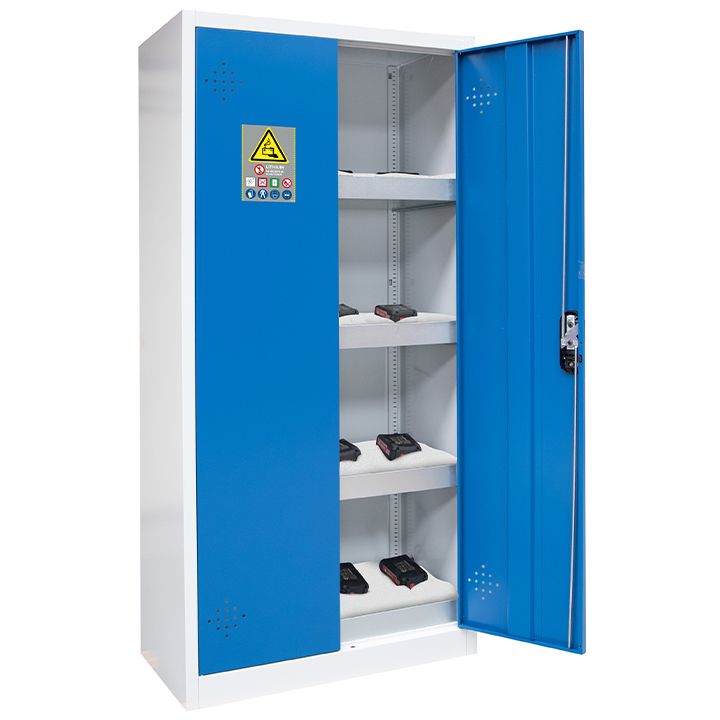

Steel cabinets available in blue and black with perforated, height-adjustable shelves and fire-resistant, moisture-absorbing pads (according to DIN 4102-4). The cabinet door(s) have an opening angle of 110° and the doors have upper and lower ventilation openings. The doors can be locked with a key. Each cabinet has a 100 mm diameter AZVENT outlet for an optionally connectable ventilation system.

More details

The following options can also be ordered for the cabinets. Ask our staff for help in selecting the right accessories!

Wi-Fi smoke detector (ALARMWI): In the event of high heat generation and smoke, it warns those near the cabinet with an acoustic signal, and also sends an alarm to the specified person via a Wi-Fi connection.

Digital code lock (SERCODE14): Enables numerical code locking.

Ventilation system (CDV-A): Enables the extraction and discharge of toxic fumes generated in the cabinet.

Additional fire-retardant cushion (COU150, COU300): The cabinets are delivered with 2 (AZ50, AZ110) or 4 (AZ150, AZ300) fireproof cushions. In addition, additional cushions are available on request.

code
Series
Name
Color
External size
Weight
net price
amount
in stock

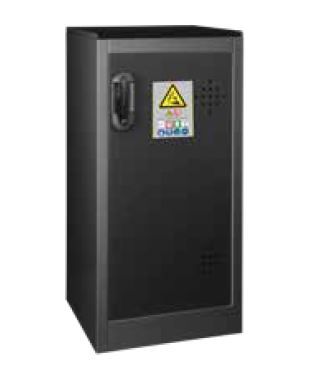

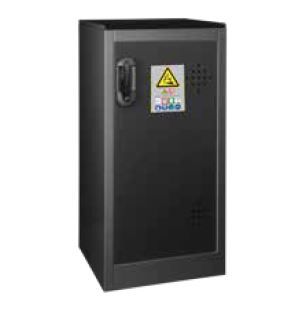

375.AZ50NLI
14FLI
Safety cabinet with 2 pc fireproof cushion
black
1000 x 500 x 500 mm
28 kg
Request a price
pc

"For storage of flammable materials. With 1 lockable door, AZVENT outlet for connecting ventilation, 2 shelves and 2 fireproof cushions.. External dimensions (H x W x D): 1000 x 500 x 500 mm Internal dimensions (H x W x D): 890 x 498 x 453 mm Outlet diameter: 100 mm Shelf load capacity: 75 kg Weight: 28 kg Conformity: ISO 3864-1, ISO 7010, 92/58/EEC"

"For storage of flammable materials. With 1 lockable door, AZVENT outlet for connecting ventilation, 2 shelves and 2 fireproof cushions.. External dimensions (H x W x D): 1000 x 500 x 500 mm Internal dimensions (H x W x D): 890 x 498 x 453 mm Outlet diameter: 100 mm Shelf load capacity: 75 kg Weight: 28 kg Conformity: ISO 3864-1, ISO 7010, 92/58/EEC"

375.AZ50BLI
14FLI
Safety cabinet with 2 pc fireproof cushion
blue
1000 x 500 x 500 mm
28 kg
Request a price
pc

"For storage of flammable materials. With 1 lockable door, AZVENT outlet for connecting ventilation, 2 shelves and 2 fireproof cushions.. External dimensions (H x W x D): 1000 x 500 x 500 mm Internal dimensions (H x W x D): 890 x 498 x 453 mm Outlet diameter: 100 mm Shelf load capacity: 75 kg Weight: 28 kg Conformity: ISO 3864-1, ISO 7010, 92/58/EEC"

"For storage of flammable materials. With 1 lockable door, AZVENT outlet for connecting ventilation, 2 shelves and 2 fireproof cushions.. External dimensions (H x W x D): 1000 x 500 x 500 mm Internal dimensions (H x W x D): 890 x 498 x 453 mm Outlet diameter: 100 mm Shelf load capacity: 75 kg Weight: 28 kg Conformity: ISO 3864-1, ISO 7010, 92/58/EEC"

375.AZ110NLI
14FLI
Safety cabinet with 2 pc fireproof cushion
black
1000 x 930 x 500 mm
49 kg
Request a price
pc

"For storage of flammable materials. With 2 lockable doors, AZVENT outlet for connecting ventilation, 2 shelves and 2 fireproof pads.. External dimensions (H x W x D): 1000 x 930 x 500 mm Internal dimensions (H x W x D): 890 x 925 x 453 mm Outlet diameter: 100 mm Shelf load capacity: 125 kg Weight: 49 kg Conformity: ISO 3864-1, ISO 7010, 92/58/EEC"

"For storage of flammable materials. With 2 lockable doors, AZVENT outlet for connecting ventilation, 2 shelves and 2 fireproof pads.. External dimensions (H x W x D): 1000 x 930 x 500 mm Internal dimensions (H x W x D): 890 x 925 x 453 mm Outlet diameter: 100 mm Shelf load capacity: 125 kg Weight: 49 kg Conformity: ISO 3864-1, ISO 7010, 92/58/EEC"

375.AZ110BLI
14FLI
Safety cabinet with 2 pc fireproof cushion
blue
1000 x 930 x 500 mm
49 kg
Request a price
pc

"For storage of flammable materials. With 2 lockable doors, AZVENT outlet for connecting ventilation, 2 shelves and 2 fireproof pads.. External dimensions (H x W x D): 1000 x 930 x 500 mm Internal dimensions (H x W x D): 890 x 925 x 453 mm Outlet diameter: 100 mm Shelf load capacity: 125 kg Weight: 49 kg Conformity: ISO 3864-1, ISO 7010, 92/58/EEC"

"For storage of flammable materials. With 2 lockable doors, AZVENT outlet for connecting ventilation, 2 shelves and 2 fireproof pads.. External dimensions (H x W x D): 1000 x 930 x 500 mm Internal dimensions (H x W x D): 890 x 925 x 453 mm Outlet diameter: 100 mm Shelf load capacity: 125 kg Weight: 49 kg Conformity: ISO 3864-1, ISO 7010, 92/58/EEC"

375.AZ150NLI
14FLI
Safety cabinet with 4 pc fireproof cushion
black
1950 x 500 x 500 mm
59 kg
Request a price
pc

"For storage of flammable materials. With 1 lockable door, AZVENT outlet for connecting ventilation, 4 shelves and 4 fireproof pads.. External dimensions (H x W x D): 1950 x 500 x 500 mm Internal dimensions (H x W x D): 1840 x 498 x 453 mm Outlet diameter: 100 mm Shelf load capacity: 75 kg Weight: 59 kg Conformity: ISO 3864-1, ISO 7010, 92/58/EEC"

"For storage of flammable materials. With 1 lockable door, AZVENT outlet for connecting ventilation, 4 shelves and 4 fireproof pads.. External dimensions (H x W x D): 1950 x 500 x 500 mm Internal dimensions (H x W x D): 1840 x 498 x 453 mm Outlet diameter: 100 mm Shelf load capacity: 75 kg Weight: 59 kg Conformity: ISO 3864-1, ISO 7010, 92/58/EEC"

375.AZ150BLI
14FLI
Safety cabinet with 4 pc fireproof cushion
blue
1950 x 500 x 500 mm
59 kg
Request a price
pc

"For storage of flammable materials. With 1 lockable door, AZVENT outlet for connecting ventilation, 4 shelves and 4 fireproof pads.. External dimensions (H x W x D): 1950 x 500 x 500 mm Internal dimensions (H x W x D): 1840 x 498 x 453 mm Outlet diameter: 100 mm Shelf load capacity: 75 kg Weight: 59 kg Conformity: EN 14470-1 90 minutes (certified, tested for 105 minutes), EN 1363-1, FM 6050, EN 16121, EN 13501-2"

"For storage of flammable materials. With 1 lockable door, AZVENT outlet for connecting ventilation, 4 shelves and 4 fireproof pads.. External dimensions (H x W x D): 1950 x 500 x 500 mm Internal dimensions (H x W x D): 1840 x 498 x 453 mm Outlet diameter: 100 mm Shelf load capacity: 75 kg Weight: 59 kg Conformity: EN 14470-1 90 minutes (certified, tested for 105 minutes), EN 1363-1, FM 6050, EN 16121, EN 13501-2"

375.AZ300NLI
14FLI
Safety cabinet with 4 pc fireproof cushion
black
1950 x 930 x 500 mm
102 kg
Request a price
pc

"For storage of flammable materials. With 2 lockable doors, AZVENT outlet for connecting ventilation, 4 shelves and 4 fireproof pads. External dimensions (H x W x D): 1950 x 930 x 500 mm Internal dimensions (H x W x D): 1840 x 925 x 453 mm Outlet diameter: 100 mm Shelf load capacity: 125 kg Weight: 102 kg Conformity: ISO 3864-1, ISO 7010, 92/58/EEC"

"For storage of flammable materials. With 2 lockable doors, AZVENT outlet for connecting ventilation, 4 shelves and 4 fireproof pads. External dimensions (H x W x D): 1950 x 930 x 500 mm Internal dimensions (H x W x D): 1840 x 925 x 453 mm Outlet diameter: 100 mm Shelf load capacity: 125 kg Weight: 102 kg Conformity: ISO 3864-1, ISO 7010, 92/58/EEC"

375.AZ300BLI
14FLI
Safety cabinet with 4 pc fireproof cushion
blue
1950 x 930 x 500 mm
102 kg
Request a price
pc

"For storage of flammable materials. With 2 lockable doors, AZVENT outlet for connecting ventilation, 4 shelves and 4 fireproof pads. External dimensions (H x W x D): 1950 x 930 x 500 mm Internal dimensions (H x W x D): 1840 x 925 x 453 mm Outlet diameter: 100 mm Shelf load capacity: 125 kg Weight: 102 kg Conformity: EN 14470-1 90 minutes (certified, tested for 105 minutes), EN 1363-1, FM 6050, EN 16121, EN 13501-2"

"For storage of flammable materials. With 2 lockable doors, AZVENT outlet for connecting ventilation, 4 shelves and 4 fireproof pads. External dimensions (H x W x D): 1950 x 930 x 500 mm Internal dimensions (H x W x D): 1840 x 925 x 453 mm Outlet diameter: 100 mm Shelf load capacity: 125 kg Weight: 102 kg Conformity: EN 14470-1 90 minutes (certified, tested for 105 minutes), EN 1363-1, FM 6050, EN 16121, EN 13501-2"
