SAFETYBOX gas cylinder storage cabinets

Laboreszköz katalógus Marketplace 0Cart

Labor Security

Request a price

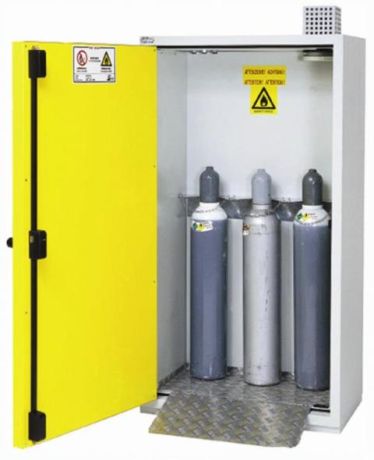

Stable, indoor cabinets for the safe storage of two or four gas cylinders of maximum 50 liters according to EN14470-2 standard.

Features:
Door: made of double, 10/10 thickness galvanized steel sheet, acid-resistant paint, triple silicate-ceramic-silicate insulation between the sheets, spark-proof hinge, lockable with key. It can be fully unfolded and closes at three points.

Cabinet: made of galvanized steel, with acid-resistant paint, protective grounding, equipped with four adjustable bases. It is possible to lead out the gas pipes and install a gas leak detector.

Sealing: made of a special material - heat turns into foam, sealing the interior hermetically. Retains flames, smoke and gases.

Fire prevention valve: normally ensures natural ventilation, but if the temperature rises above 70ºC, it closes automatically, thus protecting the interior from possible fire. Each cabinet has two such valves.

Accessories: stainless steel bottle holder bracket with locking chain, stainless steel storage surface with folding auxiliary plate, warning stickers.


code

Type

Weight

Inner size

External size

Placeable bottle

Bottle volume

net price

amount

in stock

Indoor cabinet for 2 gas sylinders, with ramp

30.CG065

BC 650 GS

284 kg

55 x 49 x 174 cm

65 x 60 x 199 cm

2 pc

50 liters

Request a price

Completely produced in pickled steel. New fireproof insulation, completely ecological. Inflatable trimming + Extra inflatable trimming against “Cold and Hot fumes” and dusts. Two certified security valves, automatic closure at 70 ± 10° C. Predisposed for piping passage. Rolling ramp. Warranty “RC Prodotti”. External Dimensions: 700 x 600 x 2015 mm Internal Dimensions: 445 x 548 x 1787 mm Weight: 212 Kg Total Volume: 435 lt.

Indoor cabinet for 4 gas sylinders, with ramp

30.CG135

BC 1350 GS

163 kg

60 x 50 x 180 cm

70 x 60 x 205 cm

4 pc

50 liters

Request a price

Completely produced in pickled steel. New fireproof insulation, completely ecological. Inflatable trimming + Extra inflatable trimming against “Cold and Hot fumes” and dusts. Two certified security valves, automatic closure at 70 ± 10° C. Predisposed for piping passage. Safety closing system. Rolling ramp. Warranty “RC Prodotti”. External Dimensions: 1300 x 600 x 2015 mm Internal Dimensions: 1165 x 500 x 1830 mm Weight: 460 Kg
