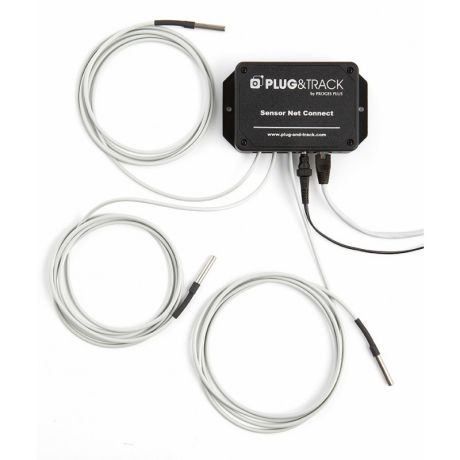

Sensor net connect temperature / humidity, remote monitoring system
Proges Plus
Request a price
Sensor net connect offers an extremely simple and economical solution for remote monitoring of the temperature and humidity of cold stores, plant breeding chambers, server rooms, and laboratories. If limit values are exceeded, the system sends a warning.
Each data collection unit has its own IP address. A data collection unit can receive 3 sensors: the temperature (digital or PT100) and/or the humidity sensor.

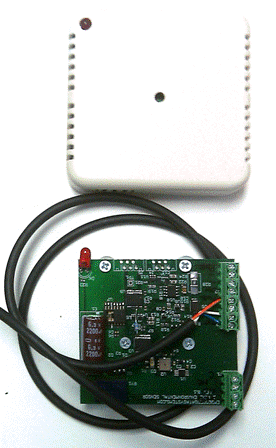

The PT100 sensor signal is received by an interface unit and converted into a 4-20mA signal. This signal will be converted into digital form by the data collection unit and then forwarded to the computer.
There are two versions of the data processing unit:
- It is connected to the network with an Ethernet cable connector
- It connects via Wi-Fi
Each sensor comes with a 2 meter long cable. A 10- or 25-meter cable can be requested as an option.

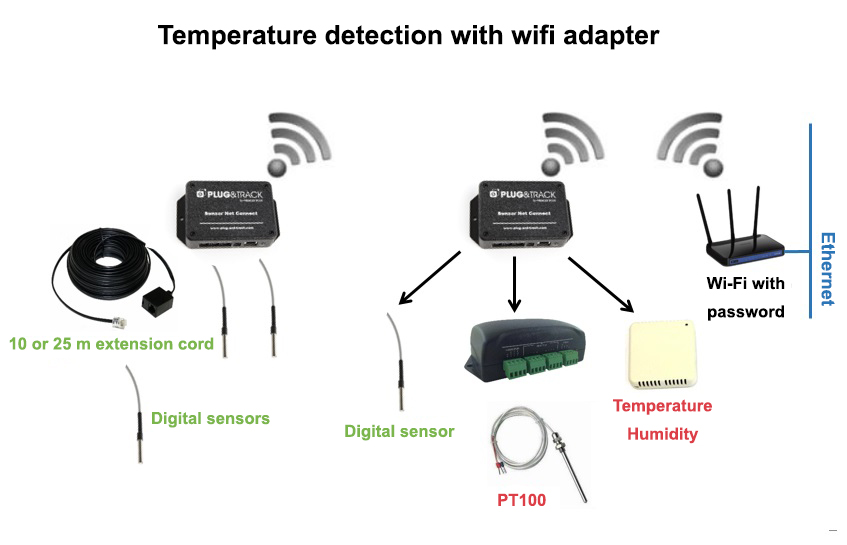

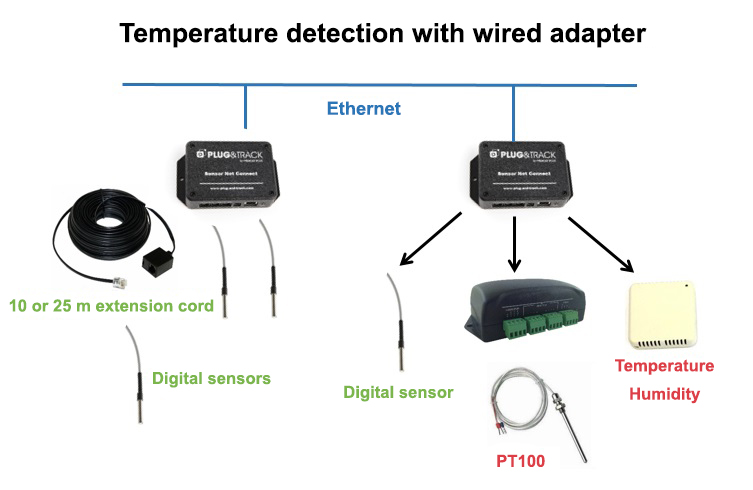

More detailsSystem design with available wired network and WiFi adapter
Wired and WiFi data files modules are available to transmit the signals of the sensors. PC software and an Internet interface are also available for monitoring and alarming. The latter is available with a demo/demo ID/password pair at the following link: http://www.thermotrack-webserve.com/home/blog/login.php (You need to enable Java to use the interface.). The services of the online system are available by paying a one-time fee or with an annual subscription. In addition to e-mail and pop-up alerts, an SMS alert can also be ordered as an additional option.
Characteristics of temperature/humidity sensors:
| Code | 370.ZA0078 | 370.ZA0059 | 370.ZA0060 | 370.POI0012 | 370.ZA0080 |
|---|---|---|---|---|---|
| Measuring range: | -40 +85 °C | -55 +125 °C | -55 +125 °C | 0-100% | -200 +250°C |
| Accuracy: | ±0.2°C | ±0.5°C | ±0.5°C | ±3% | ±0.15°C |
| Resolution: | 0.1°C | 0.1°C | 0.1°C | 0.40% | 0.1°C |
