Stands for dispersing devices

IKA

Request a price


Stands for dispersing devices can be selected from the table below. In case of special needs (floor or telescopic stand), contact our staff.

code
Name
Type
Compatible device
Rod ø
Sizes
net price
amount
in stock

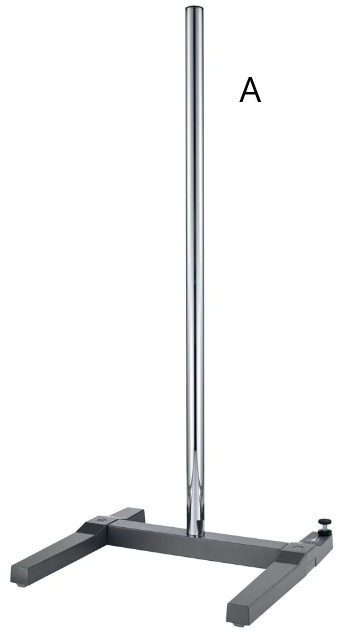

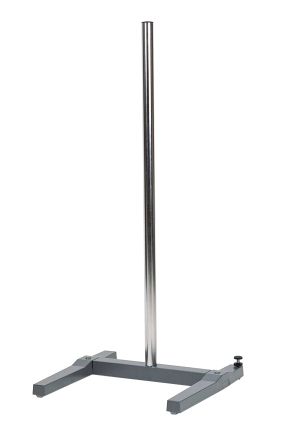

56.1412000
R 2722 stand
A
Microstar, Ministar, Eurostar, T 50 digital, RW 28 digital
34 mm
460 x 1010 x 420 mm
Request a price
pc

For IKA EUROSTAR power type stirrer motors, with non-slip feet. Particularly stable stand with H-shaped base that prevents the stand from tipping over. Provides optimal stability for larger, heavier instruments and accessories, e.g. for rheological measurements with an overhead stirrer. The stand has an adjustment screw to compensate for uneven laboratory bench surfaces. Rod diameter: 34 mm, height: 1,010 mm Base dimensions: 460 x 420 mm Maximum load capacity: 10 kg

For IKA EUROSTAR power type stirrer motors, with non-slip feet. Particularly stable stand with H-shaped base that prevents the stand from tipping over. Provides optimal stability for larger, heavier instruments and accessories, e.g. for rheological measurements with an overhead stirrer. The stand has an adjustment screw to compensate for uneven laboratory bench surfaces. Rod diameter: 34 mm, height: 1,010 mm Base dimensions: 460 x 420 mm Maximum load capacity: 10 kg

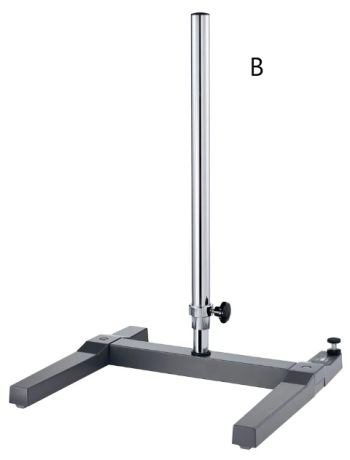

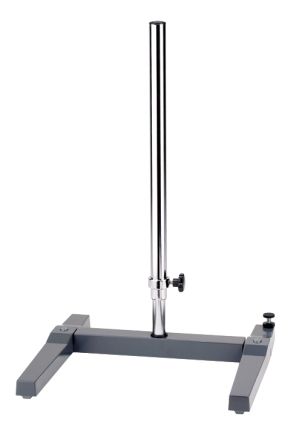

56.1412100
R 2723 telescopic stand
B
Microstar, Ministar, Eurostar, Starvisc, T 50 digital, RW 28 digital
34 mm
460 x 1010 x 420 mm
Request a price
pc

For IKA EUROSTAR power type mixer motors, with non-slip feet. A particularly stable stand with an H-shaped base that prevents the stand from tipping back. It is also equipped with a pneumatic spring-loaded stand rod, which enables smooth lifting and lowering of heavy instruments/accessories, The stand has an adjustment screw that can be used to level the uneven laboratory table surface. Bar diameter: 34 mm, height: 620-1,010 mm (telescopic) Telescope stroke: 390 mm Maximum load capacity: 10 kg Size: 460 x 420 mm

For IKA EUROSTAR power type mixer motors, with non-slip feet. A particularly stable stand with an H-shaped base that prevents the stand from tipping back. It is also equipped with a pneumatic spring-loaded stand rod, which enables smooth lifting and lowering of heavy instruments/accessories, The stand has an adjustment screw that can be used to level the uneven laboratory table surface. Bar diameter: 34 mm, height: 620-1,010 mm (telescopic) Telescope stroke: 390 mm Maximum load capacity: 10 kg Size: 460 x 420 mm

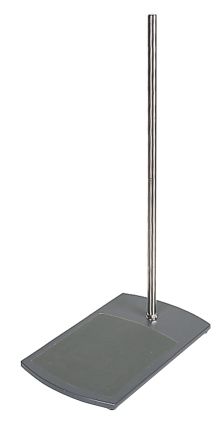

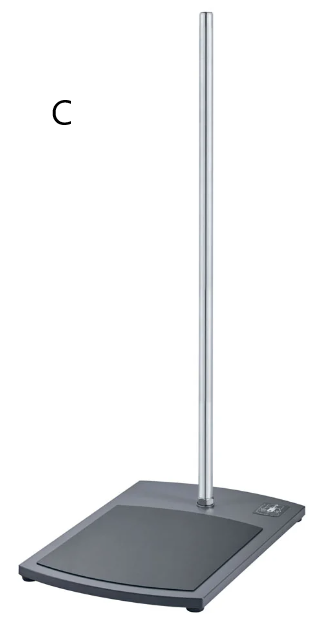

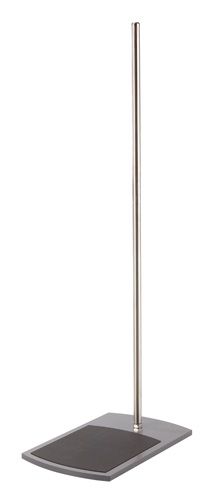

56.3160000
R 1825 stand
C
Nanostar, Microstar, Ministar, Eurostar, T 18, T 25, RW 20 digital
16 mm
200 x 560 x 316 mm
Request a price
pc

With slip resistant foil. Diameter of support rod: 16 mm Max. load: 5 kg Dimensions (W x D): 200 x 316 mm Height: 560 mm

With slip resistant foil. Diameter of support rod: 16 mm Max. load: 5 kg Dimensions (W x D): 200 x 316 mm Height: 560 mm

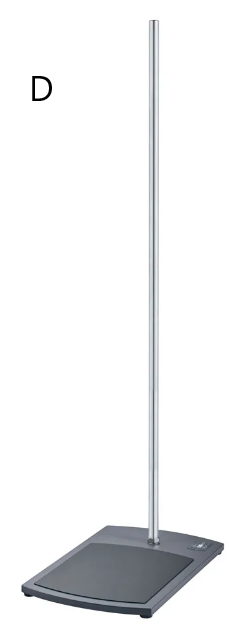

56.3160100
R 1826 stand
D
Nanostar, Ministar, Microstar, Eurostar, T 18, T 25, RW 20 digital
16 mm
200 x 800 x 316 mm
Request a price

For mixing engines, with anti-slip layer. Rod diameter: 16 mm, height: 800 mm Maximum load capacity: 5 kg Size: 200 x 316 mm

For mixing engines, with anti-slip layer. Rod diameter: 16 mm, height: 800 mm Maximum load capacity: 5 kg Size: 200 x 316 mm

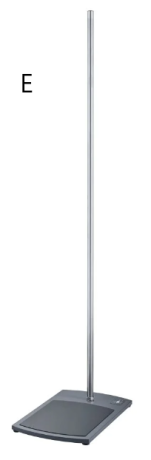

56.3160200
R 18257 stand
E
Nanostar, Microstar, Ministar, Eurostar, T 18, T 25, RW 20 digital
16 mm
200 x 1000 x 316 mm
Request a price
db

IKA keverőmotorhoz, csúszásmentesített réteggel. Rúd átmérő: 16 mm, magasság: 1.000 mm Maximális teherbírás: 5 kg Méret: 200 x 316 mm

IKA keverőmotorhoz, csúszásmentesített réteggel. Rúd átmérő: 16 mm, magasság: 1.000 mm Maximális teherbírás: 5 kg Méret: 200 x 316 mm

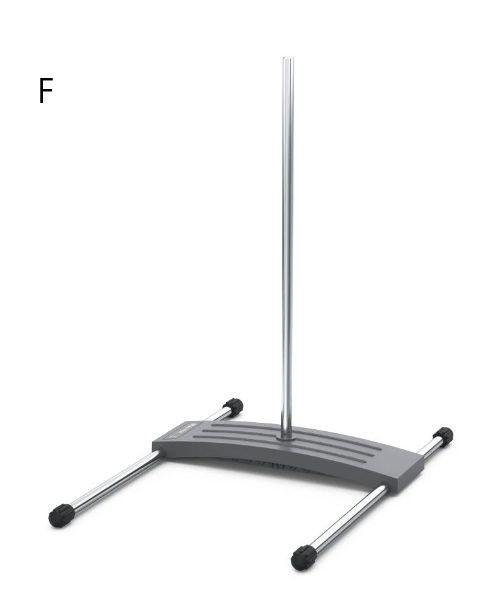

56.3386000
R 104 stand
F
T 10 basic
10 mm
242 x 370 x 355 mm
Request a price
db

és az RW 11 basic pálcás keverőmotorhoz."H" alakú talppal. Rúdméret: d x h: 10 x 370 mm

és az RW 11 basic pálcás keverőmotorhoz."H" alakú talppal. Rúdméret: d x h: 10 x 370 mm

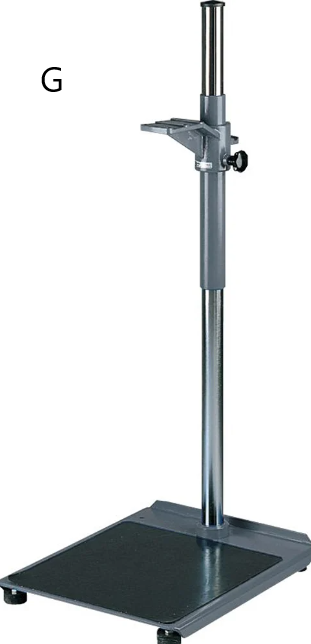

56.1643000
R 474 telescopic stand
G
RW 47 digital
48 mm
500 x 1185 x 575 mm
Request a price
db

Speciális, az RW 47 digital keverőhöz kifejlesztett teleszkópos állvány. Más keverőmotorokhoz is adaptálható. Méretei: 460 x 530 mm (széles x mély) Magasság: 1.200 mm Beállítható: 500 - 1.000 mm között Tartórúd átmérője: 48 mm

Speciális, az RW 47 digital keverőhöz kifejlesztett teleszkópos állvány. Más keverőmotorokhoz is adaptálható. Méretei: 460 x 530 mm (széles x mély) Magasság: 1.200 mm Beállítható: 500 - 1.000 mm között Tartórúd átmérője: 48 mm

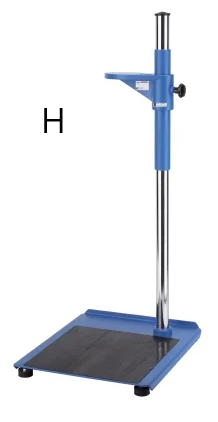

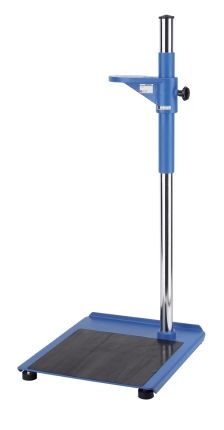

56.1608000
T 653 telescopic stand
H
T 65 basic, T 65 digital
48 mm
500 x 1185 x 575 mm
Request a price
db

Specially designed for the dispersing instrument T 65 digital. The stand is equipped with a pneumatic spring which enables effortless raising and lowering of the dispersion unit. Diameter of support rod :48 mm Dimensions (W x D): 460 x 530 mm Height: 1.200 mm Stroke: 500 - 1.000 mm

Specially designed for the dispersing instrument T 65 digital. The stand is equipped with a pneumatic spring which enables effortless raising and lowering of the dispersion unit. Diameter of support rod :48 mm Dimensions (W x D): 460 x 530 mm Height: 1.200 mm Stroke: 500 - 1.000 mm
