19.140090

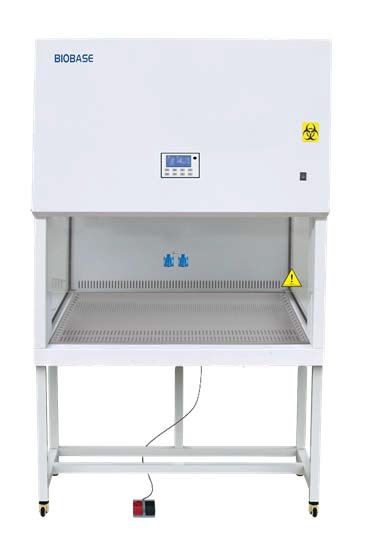

BSC-1100IIA2-X
940 x 600 x 660 mm
1100 x 750 x 2250 mm
pc

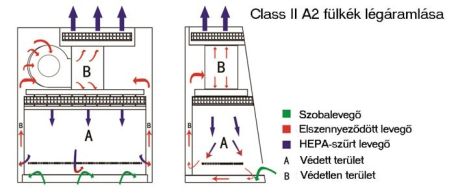

Microprocessor control, VRD display,70% air recirculation, 30% air exhaust
With water and gas tap and 2 waterproof sockets
Internal size: 900× 600× 660 mm
External size: 1100× 850× 2200 mm
Safety height ≤ 200 mm
Max opening: 400 mm
Inflow velocity: 0.53 m/s
Downflow velocity: 0.33 m/s
Two HEPA filter 99.999% efficient(0.3 microns)
Two-layer toughened glass front windows> 5mm
Noise: ≤ 65 dB
UV Lamp: 20W× 1
Fluorescent Lamp: 21W× 1 / 800 lux
Work zone interior is made of 304 stainless steel
Body: expoxy coated cold rolled steel
Base Stand Height: 635mm
caster wheel
240V/50~60Hz / 1200 W
Standard Configuration
Body, Remote control, Foot switch, UV lamp and Fluorescent Lamp, Base Stand
Weight: 240 kg
Microprocessor control, VRD display,70% air recirculation, 30% air exhaust
With water and gas tap and 2 waterproof sockets
Internal size: 900× 600× 660 mm
External size: 1100× 850× 2200 mm
Safety height ≤ 200 mm
Max opening: 400 mm
Inflow velocity: 0.53 m/s
Downflow velocity: 0.33 m/s
Two HEPA filter 99.999% efficient(0.3 microns)
Two-layer toughened glass front windows> 5mm
Noise: ≤ 65 dB
UV Lamp: 20W× 1
Fluorescent Lamp: 21W× 1 / 800 lux
Work zone interior is made of 304 stainless steel
Body: expoxy coated cold rolled steel
Base Stand Height: 635mm
caster wheel
240V/50~60Hz / 1200 W
Standard Configuration
Body, Remote control, Foot switch, UV lamp and Fluorescent Lamp, Base Stand
Weight: 240 kg
19.140110
BSC-1300IIA2-X
1150 x 600 x 660 mm
1300 x 750 x 2250 mm
pc
"30% / 70% air blowing / recirculation.
Antibacterial painted steel housing/ back panel, worktop made of type 304 stainless steel, side windows made of tempered glass.
Working height: 750 mm.
Equipment:
- motor-operated window glued from double-layer glass,
- foot switch (to adjust the window height),
- built-in fluorescent lighting (2x21W)
- built-in UV lamp (1x18W) with timer, operating time monitoring.
- two electrical sockets
- remote controller
- support stand
- drain tap
The window can be pulled up to a maximum height of 400 mm.
Safe operating height: 200 mm
The air enters the workspace through a HEPA filter, protecting the user and sample from contamination. The air coming out of the cabin is also removed through a HEPA filter. HEPA filters: filter out 99.999% of particles larger than 0.3 µm.
Microprocessor control.
Automatic airspeed control.
Visual and acoustic alarm (bad speed, high window, filter change).
Air speed (intake): 0.55 m/s.
Laminar flow speed: 0.33 m/s
Illumination: >1,000 Lux
Noise level < 58 dB (according to EN 12469)
Energy consumption: 260 Watt (+ sockets)
Workspace dimensions: 1,100x540x600 mm.
External dimensions: 1,200x750x2,200 mm.
Weight: 200 kg
Available options: gas faucet, water faucet, armrest, formalin vaporizer, infrared sterilizer, air flow tester."
"30% / 70% air blowing / recirculation.
Antibacterial painted steel housing/ back panel, worktop made of type 304 stainless steel, side windows made of tempered glass.
Working height: 750 mm.
Equipment:
- motor-operated window glued from double-layer glass,
- foot switch (to adjust the window height),
- built-in fluorescent lighting (2x21W)
- built-in UV lamp (1x18W) with timer, operating time monitoring.
- two electrical sockets
- remote controller
- support stand
- drain tap
The window can be pulled up to a maximum height of 400 mm.
Safe operating height: 200 mm
The air enters the workspace through a HEPA filter, protecting the user and sample from contamination. The air coming out of the cabin is also removed through a HEPA filter. HEPA filters: filter out 99.999% of particles larger than 0.3 µm.
Microprocessor control.
Automatic airspeed control.
Visual and acoustic alarm (bad speed, high window, filter change).
Air speed (intake): 0.55 m/s.
Laminar flow speed: 0.33 m/s
Illumination: >1,000 Lux
Noise level < 58 dB (according to EN 12469)
Energy consumption: 260 Watt (+ sockets)
Workspace dimensions: 1,100x540x600 mm.
External dimensions: 1,200x750x2,200 mm.
Weight: 200 kg
Available options: gas faucet, water faucet, armrest, formalin vaporizer, infrared sterilizer, air flow tester."
19.140130
BSC-1500IIA2-X
1350 x 600 x 660 mm
1500 x 750 x 2250 mm
pc
30% / 70% air exhaust / recirculation.
Antibacterial painted steel housing, type 304 stainless steel worktop.
Working height: 750 mm.
Equipment:
- power-operated double-glazed windows,
- footswitch (for adjusting window height),
- built-in LED lighting (2x16W)
- built-in UV lamp (1x40W)
- two electrical sockets
- remote controller,
- support frame can be leveled with fixed castors
drain plug
The window can be tilted up to a height of 500 mm at an angle of 10 °.
Safe working height: 200 mm
The air enters the work area through a HEPA filter, protecting the user and sample from contamination. The air leaving the cab also exits through a HEPA filter. HEPA filters: efficiency: 99.9995% at 0.12 μm.
Microprocessor control.
Automatic air speed control.
Visual and acoustic alarm.
The controller controls all parameters, operating hours air speed, (filters, UV lamp, monitors, displays and warns about maintenance to be performed).
Air speed (intake): 0.53 m / s.
Laminar flow velocity: 0.33 m / s
Illumination:> 1,000 Lux. Noise level <61 dB
Power consumption: 900 Watts (with two sockets).
Workspace dimensions: 1.350x600x660 mm. (WxDxH)
External dimensions: 1.500x850x2.265 mm.
Weight: 316 kg
Built-in operating hour counter.
Available options: gas tap, water tap, armrest, formalin evaporator, infrared sterilizer, air flow tester.
30% / 70% air exhaust / recirculation.
Antibacterial painted steel housing, type 304 stainless steel worktop.
Working height: 750 mm.
Equipment:
- power-operated double-glazed windows,
- footswitch (for adjusting window height),
- built-in LED lighting (2x16W)
- built-in UV lamp (1x40W)
- two electrical sockets
- remote controller,
- support frame can be leveled with fixed castors
drain plug
The window can be tilted up to a height of 500 mm at an angle of 10 °.
Safe working height: 200 mm
The air enters the work area through a HEPA filter, protecting the user and sample from contamination. The air leaving the cab also exits through a HEPA filter. HEPA filters: efficiency: 99.9995% at 0.12 μm.
Microprocessor control.
Automatic air speed control.
Visual and acoustic alarm.
The controller controls all parameters, operating hours air speed, (filters, UV lamp, monitors, displays and warns about maintenance to be performed).
Air speed (intake): 0.53 m / s.
Laminar flow velocity: 0.33 m / s
Illumination:> 1,000 Lux. Noise level <61 dB
Power consumption: 900 Watts (with two sockets).
Workspace dimensions: 1.350x600x660 mm. (WxDxH)
External dimensions: 1.500x850x2.265 mm.
Weight: 316 kg
Built-in operating hour counter.
Available options: gas tap, water tap, armrest, formalin evaporator, infrared sterilizer, air flow tester.
19.140170
BSC-1800IIA2-X
1625 x 600 x 660 mm
1800 x 775 x 2290 mm
pc
"30% / 70% air blowing / recirculation.
Antibacterial painted steel housing, type 304 stainless steel worktop.
Working height: 750 mm.
Max. open height: 550 mm
Equipment:
- motorized movement, made of double-layer glass, anti-UV
- foot switch (to adjust the window height),
- built-in UV lamp (2x40W) counter, lifetime indicator, 253.7 nm emission
- LED lamp (2x16 W)
- two electrical sockets
- remote controller,
- support stand with levelable, fixable rollers
- drain tap

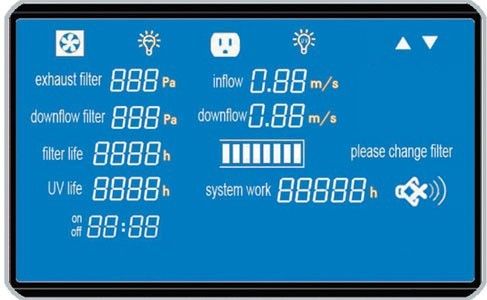

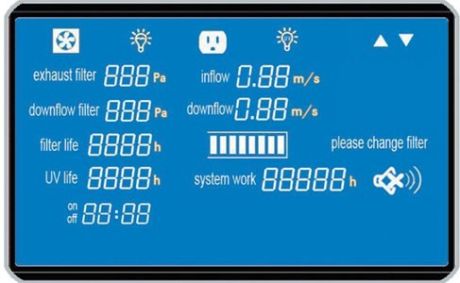

- LCD display: inflow and outflow flow, filter pressure, filter and UV lamp operation time, inflow and outflow speed, filter life, humidity and temperature, system operation time, etc.
ULPA filter: 2 pcs 99.9995% efficiency at 0.12 um, filter life indicator.
Microprocessor control.
Automatic airspeed control.
Air speed (intake): 0.53 m/s.
Laminar flow speed: 0.33 m/s
Illumination: >1,000 Lux.
Noise level < 58 dB (EN12469), < 61 dB (NSF 49)
Energy consumption: 900 Watt (+ sockets)
Workspace dimensions: 1625x600x660 mm.
External dimensions: 1800x775x2290 mm.
Weight: 420 kg
Built-in operating hours counter.
Visual and acoustic alarm: inadequate flow rate, filter replacement, unsafe window opening height, too high filter pressure
Available options: gas faucet, water faucet, armrest, formalin vaporizer, infrared sterilizer, air flow tester."
"30% / 70% air blowing / recirculation.
Antibacterial painted steel housing, type 304 stainless steel worktop.
Working height: 750 mm.
Max. open height: 550 mm
Equipment:
- motorized movement, made of double-layer glass, anti-UV
- foot switch (to adjust the window height),
- built-in UV lamp (2x40W) counter, lifetime indicator, 253.7 nm emission
- LED lamp (2x16 W)
- two electrical sockets
- remote controller,
- support stand with levelable, fixable rollers
- drain tap
- LCD display: inflow and outflow flow, filter pressure, filter and UV lamp operation time, inflow and outflow speed, filter life, humidity and temperature, system operation time, etc.
ULPA filter: 2 pcs 99.9995% efficiency at 0.12 um, filter life indicator.
Microprocessor control.
Automatic airspeed control.
Air speed (intake): 0.53 m/s.
Laminar flow speed: 0.33 m/s
Illumination: >1,000 Lux.
Noise level < 58 dB (EN12469), < 61 dB (NSF 49)
Energy consumption: 900 Watt (+ sockets)
Workspace dimensions: 1625x600x660 mm.
External dimensions: 1800x775x2290 mm.
Weight: 420 kg
Built-in operating hours counter.
Visual and acoustic alarm: inadequate flow rate, filter replacement, unsafe window opening height, too high filter pressure
Available options: gas faucet, water faucet, armrest, formalin vaporizer, infrared sterilizer, air flow tester."
19.140180
BSC-2000IIA2-X
1800 x 600 x 660 mm
1950 x 800 x 2170 mm
pc
"30% / 70% air blowing / recirculation.
Antibacterial painted steel housing, type 304 stainless steel worktop.
Working height: 750 mm.
Equipment:
- motor-operated window glued from double-layer glass,
- foot switch (to adjust the window height),
- built-in fluorescent lighting (2x40W)
- built-in UV lamp (2x40W)
- two electrical sockets
- remote controller,
- support stand with levelable, fixable rollers
- drain tap
A window tilted at an angle of 10° can be pulled up to a maximum height of 400 mm.
Safe operating height: 200 mm
The air enters the workspace through a HEPA filter, protecting the user and sample from contamination. The air coming out of the cabin is also removed through a HEPA filter. HEPA filters: filter out 99.999% of particles larger than 0.3 µm.
Microprocessor control.
Automatic airspeed control.
Visual and acoustic alarm.
Air speed (intake): 0.53±0.025 m/s
Laminar flow speed: 0.33±0.025 m/s
Illumination: >1,000 Lux
Noise level < 61 dB
Energy consumption: 1,500 Watts
Workspace dimensions: 1,800x600x660 mm.
External dimensions: 1,950x800x2,305 mm.
Weight: 420 kg
Built-in operating hours counter.
Available options: gas faucet, water faucet, armrest, formalin vaporizer, infrared sterilizer, air flow tester."
"30% / 70% air blowing / recirculation.
Antibacterial painted steel housing, type 304 stainless steel worktop.
Working height: 750 mm.
Equipment:
- motor-operated window glued from double-layer glass,
- foot switch (to adjust the window height),
- built-in fluorescent lighting (2x40W)
- built-in UV lamp (2x40W)
- two electrical sockets
- remote controller,
- support stand with levelable, fixable rollers
- drain tap
A window tilted at an angle of 10° can be pulled up to a maximum height of 400 mm.
Safe operating height: 200 mm
The air enters the workspace through a HEPA filter, protecting the user and sample from contamination. The air coming out of the cabin is also removed through a HEPA filter. HEPA filters: filter out 99.999% of particles larger than 0.3 µm.
Microprocessor control.
Automatic airspeed control.
Visual and acoustic alarm.
Air speed (intake): 0.53±0.025 m/s
Laminar flow speed: 0.33±0.025 m/s
Illumination: >1,000 Lux
Noise level < 61 dB
Energy consumption: 1,500 Watts
Workspace dimensions: 1,800x600x660 mm.
External dimensions: 1,950x800x2,305 mm.
Weight: 420 kg
Built-in operating hours counter.
Available options: gas faucet, water faucet, armrest, formalin vaporizer, infrared sterilizer, air flow tester."
19.141090
BSC-3FA2-GL
910 x 600 x 660 mm
1087 x 775 x 2265 mm
pc
"Working height: 750 mm.
Equipment:
- motorized window movement
- double-glazed window,
A window inclined at an angle of 10° can be pulled up to a maximum height of 550 mm.
safety window height: 254 mm
- built-in fluorescent lighting (>1,000 Lux)
- water tap, gas tap, drain tap
- two electrical sockets
- support stand
- Germicidal lamp (1x18 W)
The air enters the workspace through a HEPA filter, protecting the user and sample from contamination. The air coming out of the cabin is also removed through a HEPA filter. HEPA filters: filter out 99.999% of particles larger than 0.3 µm.

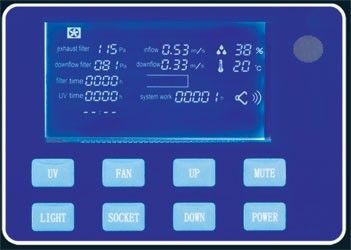

Microprocessor control, multi-line LCD display
Automatic airspeed control.
Built-in operating hour counters (UV lamp, filters, etc.)
Visual and acoustic alarm, warning of maintenance to be performed.
Air speed (intake): 0.53 m/s.
Laminar flow speed: 0.35 m/s
Intake air: 349 m3/hour
Noise level < 58 dB (according to EN 12469)
Energy consumption: 300 Watt (+ sockets)
Workspace dimensions: 910x600x660 mm (WxDxH)
External dimensions: 1,083x775x2,295 mm.
Weight: 270 kg
Available options: remote control, armrest, formalin vaporizer, infrared sterilizer, airflow tester, height-adjustable stand."

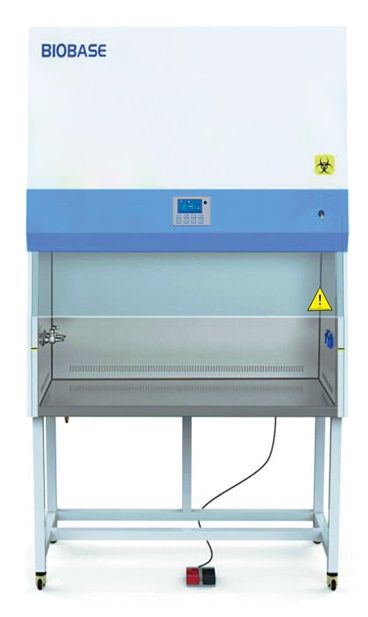

"Working height: 750 mm.
Equipment:
- motorized window movement
- double-glazed window,
A window inclined at an angle of 10° can be pulled up to a maximum height of 550 mm.
safety window height: 254 mm
- built-in fluorescent lighting (>1,000 Lux)
- water tap, gas tap, drain tap
- two electrical sockets
- support stand
- Germicidal lamp (1x18 W)
The air enters the workspace through a HEPA filter, protecting the user and sample from contamination. The air coming out of the cabin is also removed through a HEPA filter. HEPA filters: filter out 99.999% of particles larger than 0.3 µm.

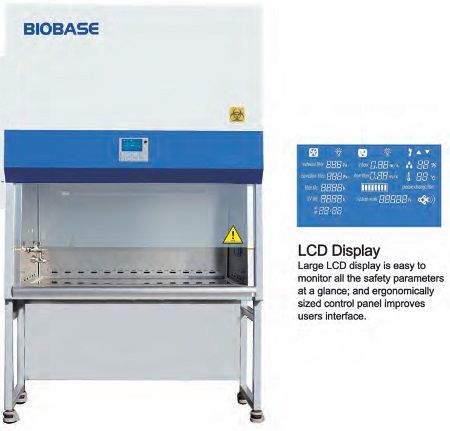

Microprocessor control, multi-line LCD display
Automatic airspeed control.
Built-in operating hour counters (UV lamp, filters, etc.)
Visual and acoustic alarm, warning of maintenance to be performed.
Air speed (intake): 0.53 m/s.
Laminar flow speed: 0.35 m/s
Intake air: 349 m3/hour
Noise level < 58 dB (according to EN 12469)
Energy consumption: 300 Watt (+ sockets)
Workspace dimensions: 910x600x660 mm (WxDxH)
External dimensions: 1,083x775x2,295 mm.
Weight: 270 kg
Available options: remote control, armrest, formalin vaporizer, infrared sterilizer, airflow tester, height-adjustable stand."
19.141120
BSC-4FA2
1210 x 600 x 660 mm
1383 x 775 x 2295 mm
pc
70% rollback, 30% blowout
70% rollback, 30% blowout
19.141170
11236BBC86
1700 x 600 x 660 mm
1883 x 775 x 2295 mm
pc
70% rollback, 30% blowout
70% rollback, 30% blowout
19.140060
11231BBC86
600 x 500 x 540 mm
700 x 650 x 1230 mm
pc

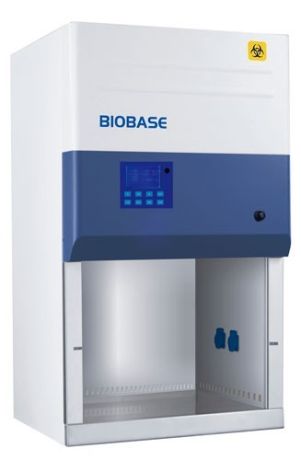

"Can be placed on a table, 30% / 70% air blowing / recirculation.
Antibacterial painted steel housing, type 304 stainless steel worktop.
Equipment:
- motor-operated window glued from double-layer glass,
- built-in LED lighting (2x8 W)
- built-in, timed UV lamp (18 W)
- two electrical sockets
- remote control to control all functions
The air enters the workspace through a HEPA filter, protecting the user and sample from contamination. The air coming out of the cabin is also removed through a HEPA filter. HEPA filters: filter out 99.999% of particles larger than 0.3 µm.
Microprocessor control, large LCD display.
Automatic airspeed control.
Filter lifetime monitoring
Visual and acoustic alarm.
Air speed (intake): 0.55 m/s.
Laminar flow speed: 0.33 m/s
Illumination: >1,000 Lux
Noise level < 60 dB
Energy consumption: 500 Watt
Workspace dimensions: 600x500x540 mm (WxDxH)
External dimensions: 700x650x1,230 mm.
Weight: 90 kg
Built-in operating hours counter.
Available options: stand, gas tap, water tap, armrest, formalin vaporizer, infrared sterilizer, airflow tester."

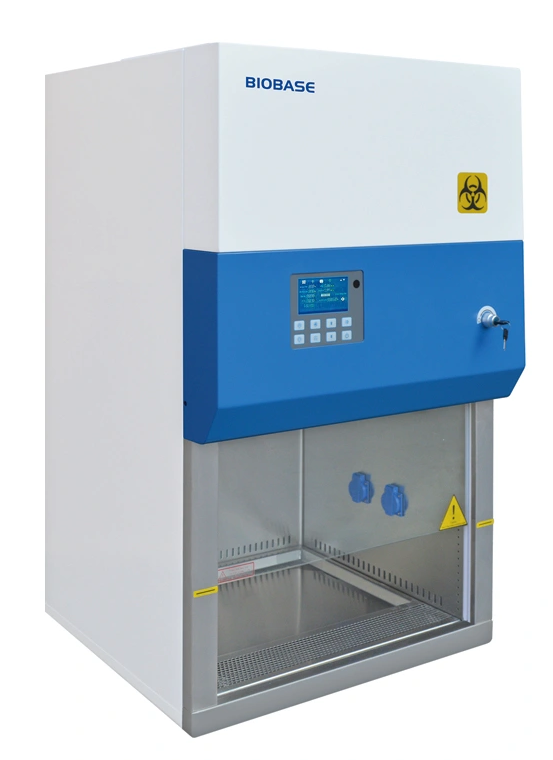

"Can be placed on a table, 30% / 70% air blowing / recirculation.
Antibacterial painted steel housing, type 304 stainless steel worktop.
Equipment:
- motor-operated window glued from double-layer glass,
- built-in LED lighting (2x8 W)
- built-in, timed UV lamp (18 W)
- two electrical sockets
- remote control to control all functions
The air enters the workspace through a HEPA filter, protecting the user and sample from contamination. The air coming out of the cabin is also removed through a HEPA filter. HEPA filters: filter out 99.999% of particles larger than 0.3 µm.
Microprocessor control, large LCD display.
Automatic airspeed control.
Filter lifetime monitoring
Visual and acoustic alarm.
Air speed (intake): 0.55 m/s.
Laminar flow speed: 0.33 m/s
Illumination: >1,000 Lux
Noise level < 60 dB
Energy consumption: 500 Watt
Workspace dimensions: 600x500x540 mm (WxDxH)
External dimensions: 700x650x1,230 mm.
Weight: 90 kg
Built-in operating hours counter.
Available options: stand, gas tap, water tap, armrest, formalin vaporizer, infrared sterilizer, airflow tester."
