LRT TC250 type thermostat head

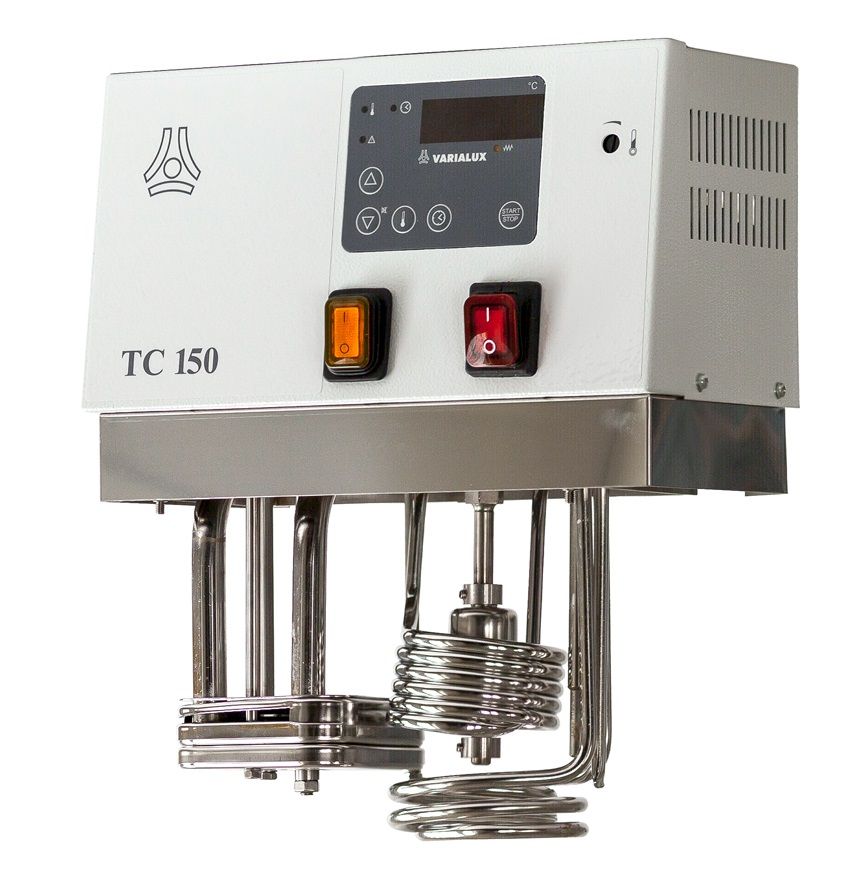

LRT TC150 type thermostat head

LRT open tank circulation thermostats, TC series

LRT

Request a price

The production of this product has been discontinued.

The thermostat heads with a high-performance pump system, combined with stainless steel tubs, are suitable for both internal circulation and tempering of external units.

In the stainless steel tub of the devices, water can be used as a heat transfer medium up to a maximum of 100 °C. If a higher tempering temperature is required, suitable oil must be filled into the tub. In this case, a maximum temperature of 200 °C (depending on the type) can be reached.

The stainless steel tub and the attached lid to prevent evaporation are easy to clean. Each thermostat includes the ends of the external circulation and the integrated cooling coil connecting pipe as standard. A drain tap for tubs (up to 12-22 liters) must be ordered separately.

Circulating thermostats specifications:

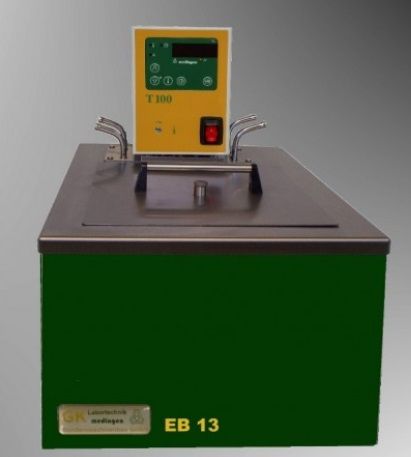

Type:	T 100	T 150	T 200	T 200 K	TC 150	TC 250	TC 250 K
Temperature range:	25 - 100°C	25 - 150°C	30 - 200°C	30 - 200°C	30 - 150 °C	30 - 150 °C	30 - 150 °C
With external cooling:	-30 - 100°C	-50 - 150°C	-60 - 200°C	-60 - 200°C	-50 - 150 °C	-50 - 150 °C	-50 - 150 °C
Heating consumption:	1,000 W	1,800 W	1,800 W	1,800 W	1,800 W	1,800 W	1,800 W
Accuracy:	±0.1 K	±0.1 K	± 0.01 K	± 0.01 K	±0.1 K	± 0.01 K	± 0.01 K
Pressure / speed:	120 / 5 mbar / l / min	120 / 5 mbar / l / min	200 / 8 mbar / l / min	200 / 8 mbar / l / min	300 / 20 mbar / l / min	300 / 20 mbar / l / min	300 / 20 mbar / l / min
Temperature sensor:	PTC	Pt 100	Pt 100	Pt 100	Pt 100	Pt 100	Pt 100
Display:	LED	LED	touch screen	touch screen	LED	touch screen	touch screen
Cryo- regulation:	-	-	-	yes	-	-	yes
Dimensions:	120 x 130 x 330 mm	120 x 130 x 335 mm	120 x 130 x 335 mm	120 x 130 x 335 mm	260 x 130 x 310 mm	260 x 130 x 310 mm	260 x 130 x 310 mm
Weight:	3 kg	3 kg	3 kg	3 kg	5 kg	5 kg	5 kg
