The members of the Safetybox CM line series are the manufacturer's somewhat simplified, but more favorably priced fireproof cabinets in a wide range of sizes and types compared to the above types. These cabinets also meet the most stringent requirements. Fire resistance for 90 minutes. Designs according to the DIN EN14470-1 standard.

The differences compared to the above safety cabinets are as follows:
- the door suspension is not hidden, but "traditional".
- the shelves and collection containers are made of galvanized sheet steel with acid-resistant paint (not stainless steel).
- some models (marked F) are built with fixed, fixed shelves in order to further reduce costs, they cannot be positioned.
These cabinets are also equipped with an automatic, self-closing door mechanism.

Type explanation:

AC 600/50 CM type: with one door, 6-liter lower collection container and 7-liter / 50 kg load-bearing shelf.
AC 600 CM type: with one door, 20-liter lower collection container and 6-liter / 40 kg load-bearing shelf.
AC 1200/50 CM type: two-door cabinet, with 13-liter lower collection container and 14-liter / 80 kg load-bearing shelves.
AC 1200 CM type: two-door cabinet with a 45-liter lower collection container and 14-liter / 80 kg load-bearing shelves.


code

Type

Weight

Storage capacity / total volume

Inner size

External size

Shelf

net price

amount

in stock

30.FL006/5CM

AC 600/50 CM

170 kg

30 / 123 liters

51 × 44 × 54 mm

68 × 66 × 74 mm

1 pc

Request a price

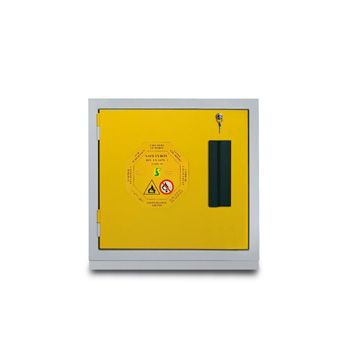

"The door is closed at 3 points. Fire valves that close automatically above 70 ±10 °C. Special (heat-swelling) door seal, protective grounding, 4 adjustable legs, door that can be locked with a key. Safety ""Ignis-lock®"", which prevents the door from opening in case of fire. Fire resistant for 90 minutes. Storage capacity: approx. 30 liters Load capacity: 1 7 liter/50 kg acid-resistant painted shelf and 1 acid-resistant painted shelf, approx. 5 liter lower collection container. External dimensions: 595x510x600 mm Internal dimensions: 430x355x440 mm Volume: approx. 67 liters Weight: 100 kg"

30.FL006CM

AC 600 CM

350 kg

100 / 386 liters

51 × 44 × 168 mm

68 × 65 × 199 mm

3 pc

Request a price

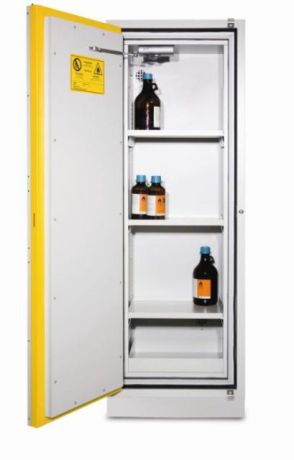

With 1 self-closing door. The door is closed at 3 points. Non-sparking door hinges. Fire dampers which close automatically above 70 ± 10 ° C. Special (heat-swellable) door seal, protective earth, 4 adjustable legs, door lockable with a key. The door locks in case of fire. Security "Ignis lock", this does not allow the door to open during a fire. Fire resistant for 90 minutes, certified according to EN 14470-1 14727! TÜV-SÜD certified - TYPE 90. Storage capacity: approx. 100 liters Load capacity: 3 pieces with a load capacity of 7 liters / 80 kg, height adjustable. acid-resistant painted shelf and 1 acid-resistant painted 23 liter bottom collection container. The shelves are equipped with an anti-fall mechanism. Special base for moving with a fork lift, + lower cover. "No smoking" and "Flammable" (English) labels. Lifetime warranty: for personal injury and materials. External size: 680x650x1.985 mm (w x deep x high) Internal size: 515x445x1.685 mm (w x deep x high) Volume: 386 liters, weight: 350 kg. Optionally equipped with activated carbon filter and exhaust fan.

30.FL012/5CM

AC 1200/50 CM

243 kg

80 / 243 liters

101 × 44 × 54 mm

118 × 65 × 74 mm

1 pc

Request a price

"fire-resistant, with 2 doors (self-closing), with lower collecting tray and +1 80 kg load-bearing shelf, fire-stop valve, protective earthing, spec. seal, adjustable feet Flammable and No Smoking (English) labels. External dimensions: 1100 x 510 x 600/620 mm Internal dimensions: 936 x 355 x 440 mm Volume: 146 liters Weight: 175 kg"

30.FL012CM

AC 1200 CM

490 kg

160 / 761 liters

101 × 44 × 168 mm

118 × 65 × 199 mm

3 pc

Request a price

dim. mm 1180x650x1985 h Internal dimensions:1015x445x1685 mm CERTIFIED BY TUV, FIRE RESISTANCE TYPE 90 - 90MIN IN COMPLIANCE WITH EN 14470-1, EN 16121, EN 16122 for the storage of 160 lt. of liquid and solid flammable products, tall, 2 doors, 3 shelves adjustable with racks, bottom basin, automatic door's closing system, thermic doors' lock, Easy Going.
