SAFETYBOX outdoor gas tank storage cabinets

Laboreszköz katalógus Marketplace 0Cart

Labor Security

Request a price

Outdoor reinforced, modular versions of the gas cylinder storage cabinets described above.

The basic type is suitable for storing three gas tanks of up to 50 liters. External dimensions of the basic type: 96 x 88 x 240 cm (WxDxH). Weight: 262 kg. It is equipped with a rain protection structure, corrugated slate and PVC gutter. When designing the modules, it is possible to create rooms with an expanded area or separate rooms.

Standard versions: for 3 tanks; 3 for +3 tanks; for 6 tanks; for 6 + 6 tanks; for 6 + 6 +3 tanks (the latter cabinet for 3 tanks can also be used to store the gas tank trolley); for 10 tanks; 10 +10 for tanks.

An example of the design of the modules:

In the right-hand part of the cabinet shown in the third picture, it is possible to store the tank transport cart.

More details


code

Name

net price

amount

in stock

30.SD3

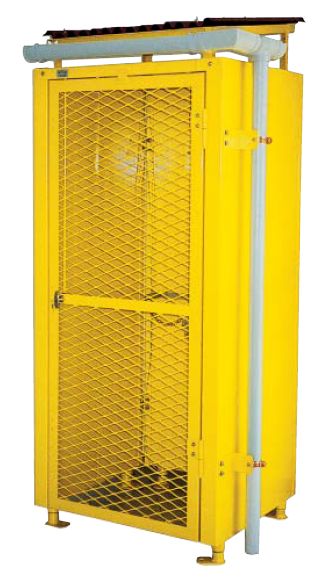

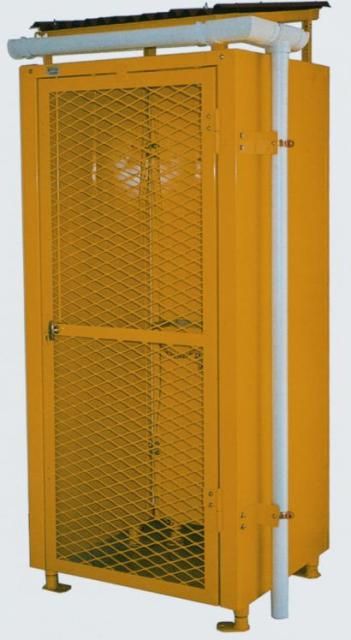

SD 3 outdoor gas cylinder storage, 3 places

Request a price

"Welded steel structure, modular construction. With adjustable feet for fixing to the concrete floor Electrogalvanized steel, epoxy and polyester with acid-resistant paint. After electrostatic powder coating, the storage elements are burned in a 200 °C oven. All units are grounded together. PVC. with a rainwater drainage system. The front door is equipped with a safety grid and a safety lock. External dimensions: 960 x 880 x 2400 mm (WxDxH) Weight: 285/262 kg."

SD 6 outdoor gas cylinder storage, 6 positions

30.SD6

SD 6 outdoor gas cylinder storage, 6 places

Request a price

"Welded steel structure, modular construction. Modular construction. With adjustable feet for fixing to the concrete floor. Electrogalvanized steel, epoxy and polyester with acid-resistant paint. After electrostatic powder coating, the storage elements are burned in a 200 °C oven. PVC. with a rainwater drainage system. The front door is equipped with a safety grid and a safety lock. External dimensions: 1760 x 880 x 2400 mm (wxDxH) Weight: 395/377 kg. The picture is an illustration! We do not have a photo of the 6-seater storage."

SD 10 outdoor gas cylinder storage, 6 positions

30.SD10

SD 10 outdoor gas cylinder storage, 6 places

Request a price

"with adjustable legs. Welded steel structure. With adjustable feet for fixing to the concrete floor. Electrogalvanized steel, epoxy and polyester with acid-resistant paint. After electrostatic powder coating, the storage elements are burned in a 200 °C oven. Modular construction. PVC. with a rainwater drainage system. The front door is equipped with a safety grid and a safety lock. External dimensions: 1760 x 1680 x 2400 mm (WxDxH) Weight: 568/550kg. The picture is an illustration! We do not have a photo of the 6-seater storage."

30.SD66

SD 6+6 outdoor gas cylinder storage, 2 x 6 seats, with 2 separated spaces

Request a price

"for the gas cylinders to be kept separately. Welded steel structure. Modular construction. With adjustable feet for fixing to the concrete floor. Electrogalvanized steel, epoxy and polyester with acid-resistant paint. After electrostatic powder coating, the storage elements are burned in a 200 °C oven. All units are grounded together. PVC. with a rainwater drainage system. The front doors are equipped with a safety grill and a safety lock. External dimensions: 3,440 x 880 x 2,400 mm (WxDxH) Weight: 781/683 kg. The picture is an illustration! We do not have a photo of the 6+6 storage."

30.SD663

SD 6+6+3 outdoor gas cylinder storage, 2 x 6 and 1 x 3 places, with 3 separated spaces

Request a price

"for the gas cylinders to be kept separately. Welded steel structure. Modular construction. With adjustable feet for fixing to the concrete floor. Electrogalvanized steel, epoxy and polyester with acid-resistant paint. After electrostatic powder coating, the storage elements are burned in a 200 °C oven. All units are grounded together. PVC. with a rainwater drainage system. The front doors are equipped with a safety grill and a safety lock. External dimensions: 4,320 x 880 x 2,400 mm (WxDxH) Weight 911/875 kg. The picture is an illustration! We do not have a photo of the 6+6+3 storage. The layout of the storage can be seen in the lower part of the picture."

SD 10+10 outdoor gas cylinder storage, 2 x 10 positions, with 2 separated spaces

30.SD1010

SD 10+10 outdoor gas cylinder storage, 2 x 10 places, with 2 separated spaces

Request a price

"for the gas cylinders to be kept separately. Welded steel structure. Modular construction. With adjustable feet for fixing to the concrete floor. Electrogalvanized steel, epoxy and polyester with acid-resistant paint. After electrostatic powder coating, the storage elements are burned in a 200 °C oven. All units are grounded together. PVC. with a rainwater drainage system. The front doors are equipped with a safety grill and a safety lock. External dimensions: 3,440 x 1,680 x 2,400 mm (WxDxH) 3440x1680 Weight: 945/909 kg. The picture is an illustration! We don't have a photo of the 10+10 storage."
