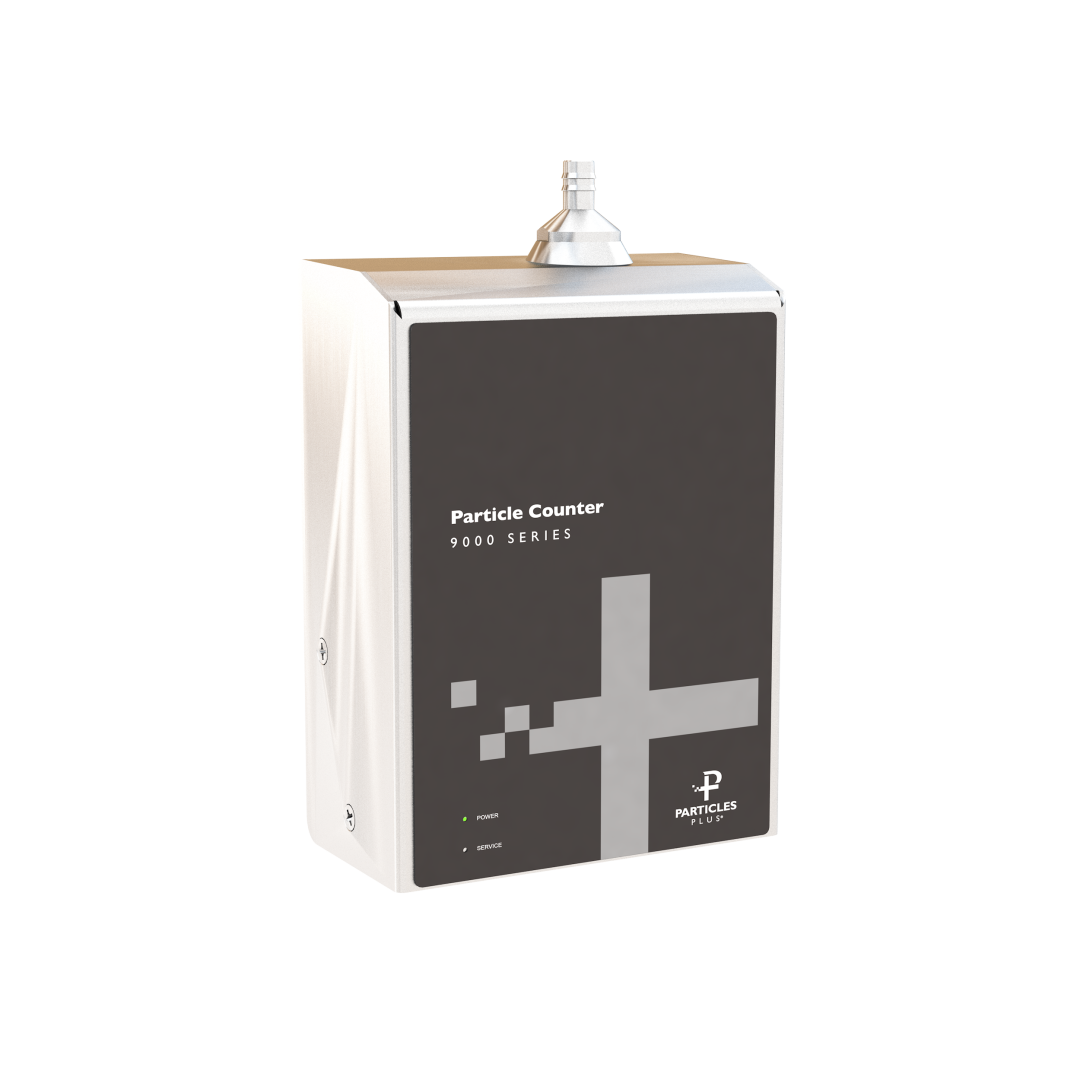

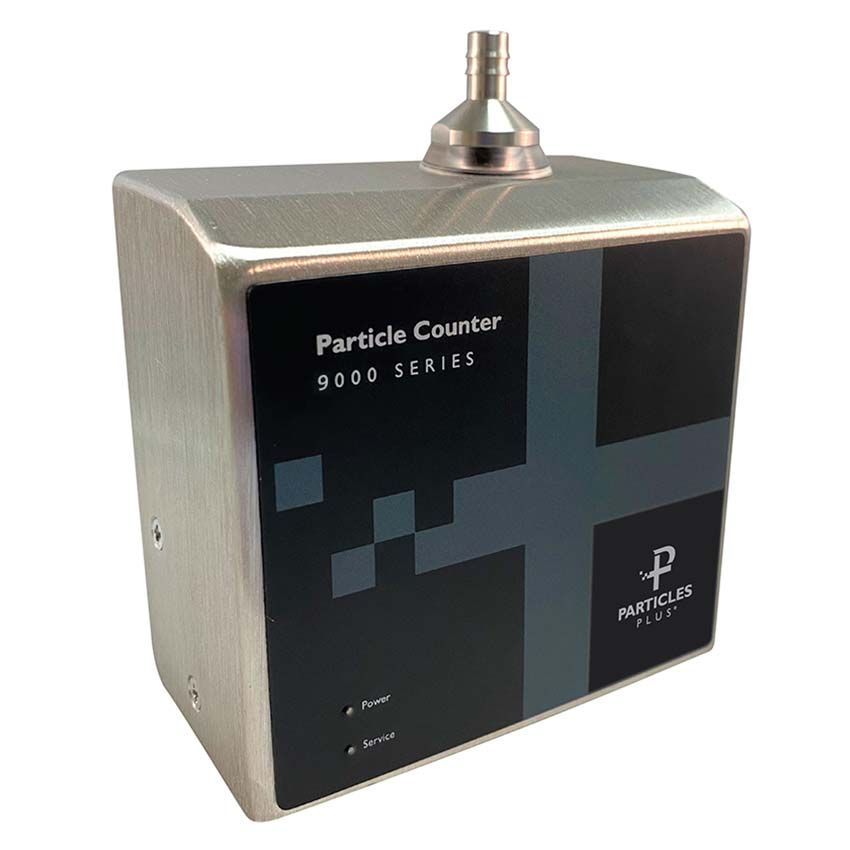

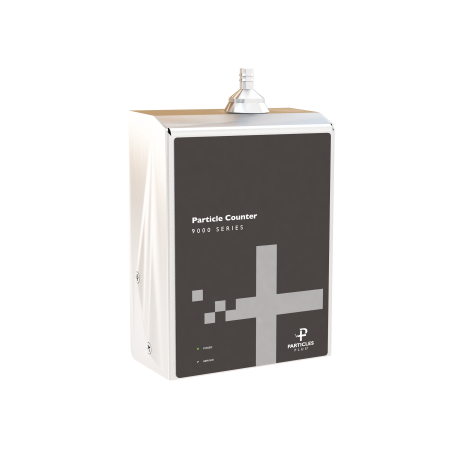

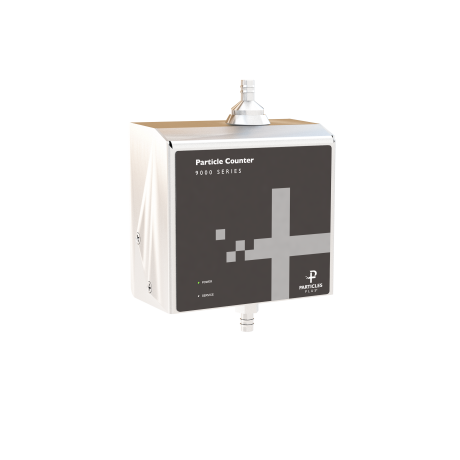

Particles Plus 9000 series particle counters
Particles Plus
Request a price
Efficient particle counters with specifications according to ISO 21501-4 and JIS B9921 standards.
The devices have 6 user selectable particle size channels. The devices available without a vacuum pump (types 9301, 9501, 9510) or with a built-in vacuum pump (types 9301P, 9501P). It can be easily integrated into a building automation or facility monitoring system via the RS-485 Modbus system.
With NIST traceable calibration. The devices have a stainless steel external, a long-life laser diode and a user-configurable alarm light.
Particles Plus instruments can store up to 65,000 data records. These records contain comprehensive data for each sample. With 1 sampling per minute, the device can record more than a full month of data before overwriting the old records. With 1 sampling every 15 minutes, it can store more than 15 months of data records.
They contain industry-leading battery technology, which ensures the longest available operating time for the devices. It is possible to put the devices in partial or full sleep mode for the time between samplings. In sleep mode, the device consumes minimal energy.
Modbus Dashboard software
The manufacturer provides the Modbus DashBoard software for its particle counters free of charge. With this software, the operation of several Particle Plus devices can be monitored at the same time.
|
It allows monitoring the operation of up to 35 devices at the same time. Displays the status and data selected by the user for each device. Device data can also be logged to a .csv file. |
|
Supports Modbus communication via RS-232, RS-485 or wired/Wi-fi TCP. Both Modbus RTU and ASCII modes are available. The connection and the communication methodes of the istruments connected to the software mus always be the same. |
|
For immediate analysis, the user can easily retrive the selected data and the data range of the devices, which the program also display on a diagram for easily viewing the data. |
Specifications:
| Specifications: | 9301 | 9501 | 9510 |
|---|---|---|---|
| Size range: | 0.3 - 25 μm | 0.5 - 25 μm | 0.5 - 25.0 μm |
| Calibrated points: | 0.3 μm, 0.5 μm, 1.0 μm, 2.5 μm, 5.0 μm, 10.0 μm | 0.5 μm, 0.7 μm, 1.0 μm, 2.5 μm, 5.0 μm, 10.0 μm | 0.5 μm, 0.7 μm, 1.0 μm, 2.5 μm, 5.0 μm, 10 μm |
| Counting efficiency: | 50% at 0.3 μm; 100% for particles > 0.45 μm per JIS | 50% at 0.5 μm; 100% for particles > 0.75 μm per JIS | 50% at 0.5 μm; 100% for particles > 0.75 μm per JIS |
| Flow rate: | 2.83 LPM | 2.83 LPM | 28.3 LPM |
| Concentration limits: |
15,000,000 particles/ft3 at 10% coincidence loss (424,752.48 particles/m3) |
15,000,000 particles/ft3 at 10% coincidence loss (424,752.48 particles/m3) |
1,500,000 particles/ft3 at 10% coincidence loss (42,475.25 particles/m3) |
| Zero count: |
< 1 count / 60 minutes (< 1 particles /6ft3). No fault count subtraction. < 1 count / 60 minutes (< 1 particles /0,17 m3) |
< 1 count / 60 minutes (< 1 particles /6ft3). No fault count subtraction. < 1 count / 60 minutes (< 1 particles /0,17 m3) |
< 1 count / 60 minutes (< 1 particles /6ft3). No fault count subtraction. < 1 count / 60 minutes (< 1 particles /0,17 m3) |
| Vacuum requirements: | External vacuum > 38.1 cm of Hg | External vacuum > 38.1 cm of Hg | External vacuum > 38.1 cm of Hg |
| Sample time: | 1 second to 99 hours | 1 second to 99 hours | 1 second to 99 hours |
| Operating conditions: | 5 °C to 40 °C / 20% to 95% non-condensing | 5 °C to 40 °C / 20% to 95% non-condensing | 5 °C to 40 °C / 20% to 95% non-condensing |
| Storage conditions: | 0 °C to 50 °C / Up to 98% non-condensing | 0 °C to 50 °C / Up to 98% non-condensing | 0 °C to 50 °C / Up to 98% non-condensing |
| Dimensions (L x W x H): | 9.1 cm x 4.6 cm x 12.7 cm | 9.1 cm x 4.6 cm x 12.7 cm | 9.1 cm x 4.6 cm x 12.7 cm |
| Weight: | 0.75 kg | 0.75 kg | 0.75 kg |
| Specifications: | 9301P | 9501P |
|---|---|---|
| Size range: | 0.3 - 25.0 μm | 0.5 - 25 μm |
| Calibrated points: | 0.3 μm, 0.5 μm, 1.0 μm, 2.5 μm, 5.0 μm, 10.0 μm | 0.5 μm, 0.7 μm, 1.0 μm, 2.5 μm, 5.0 μm, 10.0 μm |
| Counting efficiency: | 50% at 0.3 μm; 100% for particles > 0.45 μm per JIS | 50% at 0.5 μm; 100% for particles > 0.75 μm per JIS |
| Flow rate: | 2.83 LPM | 2.83 LPM |
| Concentration limits: |
15,000,000 particles/ft3 at 10% coincidence loss (424,752.48 particles/m3) |
15,000,000 particles/ft3 at 10% coincidence loss (424,752.48 particles/m3) |
| Zero count: |
< 1 count / 60 minutes (< 1 particles /6ft3). No fault count subtraction. < 1 count / 60 minutes (< 1 particles /0,17 m3) |
< 1 count / 60 minutes (< 1 particles /6ft3). No fault count subtraction. < 1 count / 60 minutes (< 1 particles /0,17 m3) |
| Vacuum requirements: | Internal vacuum pump | Internal vacuum pump |
| Sample time: | 1 second to 99 hours | 1 second to 99 hours |
| Operating conditions: | 5 °C to 40 °C / 20% to 95% non-condensing | 5 °C to 40 °C / 20% to 95% non-condensing |
| Storage conditions: | 0 °C to 50 °C / Up to 98% non-condensing | 0 °C to 50 °C / Up to 98% non-condensing |
| Dimensions (L x W x H): | 9.1 cm x 4.6 cm x 14.3 cm | 9.1 cm x 4.6 cm x 14.3 cm |
| Weight: | 0.88 kg | 0.88 kg |
